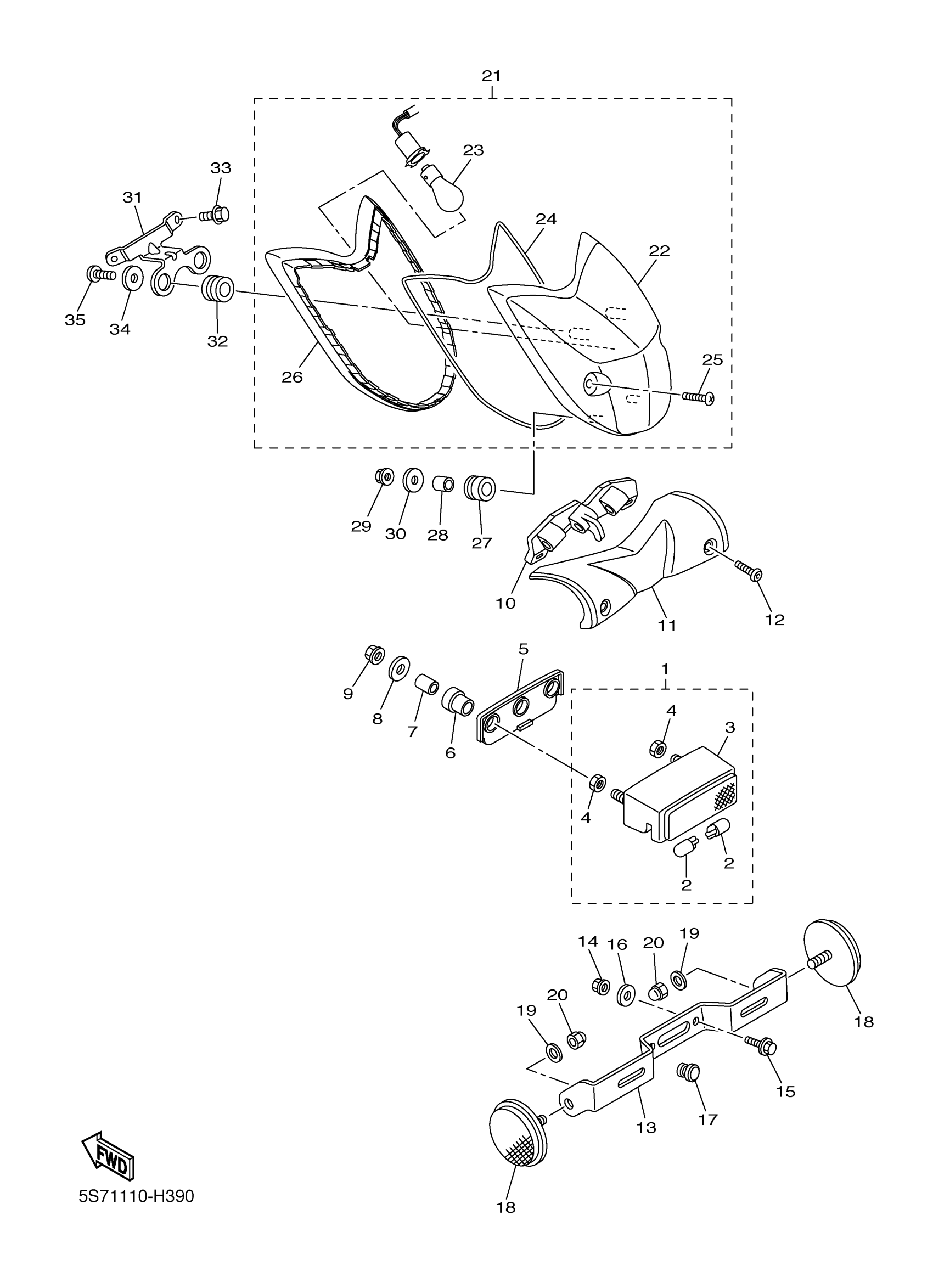

Yamaha XVS95ZR (V STAR 950) 49B4 2010 TAILLIGHT Diagram

#

Description
Price

1

LICENCE LIGHT UNIT ASSY

5C7-84745-00-00

$115.99

2

BULB

5PX-84744-00-00

$3.22

3

BODY, LICENCE LIGHT

5PX-84749-00-00

$83.99

4

NUT, SPECIAL

5PX-84748-00-00

Unavailable

5

SEAT, BASE

5PX-84742-00-00

$7.99

6

DAMPER

3F9-84553-00-00

Unavailable

7

COLLAR

90387-06251-00

Unavailable

8

WASHER, PLATE

90201-05025-00

$5.60

9

NUT, FLANGE

95702-05500-00

$0.38

10

CLAMP, COUPLER

5S7-82522-00-00

$19.99

11

COVER, REAR FENDER 1

5S7-2163A-00-00

Unavailable

12

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

13

BRACKET, LICENSE

5S7-84751-01-00

$31.99

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

BOLT, FLANGE

95022-06014-00

$3.14

16

WASHER, PLATE

90201-06380-00

Unavailable

17

PLUG

90338-07010-00

Unavailable

18

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

19

WASHER, PLAIN (3GDF)

90201-051K1-00

Unavailable

20

NUT, CROWN

90176-05004-00

Unavailable

21

TAILLIGHT ASSY

5S7-84700-00-00

Unavailable

22

LENS, TAILLIGHT

5S7-84721-00-00

Unavailable

23

BULB

1A2-84714-50-00

Unavailable

24

GASKET, TAIL LENS

5S7-84723-00-00

Unavailable

25

SCREW

3D8-84726-00-00

Unavailable

26

DAMPER, TAIL 1

5S7-84736-00-00

Unavailable

27

GROMMET

90480-14016-00

Unavailable

28

COLLAR

90387-06113-00

Unavailable

29

NUT, HEXAGON

95380-06600-00

Unavailable

30

WASHER, PLATE

90201-06095-00

Unavailable

31

BRACKET, TAILLIGHT

5S7-84702-01-00

Unavailable

32

GROMMET

90480-14004-00

Unavailable

33

BOLT, FLANGE

95817-06012-00

Unavailable

34

WASHER PLATE 803835240000

90201-05032-00

Unavailable

35

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable
