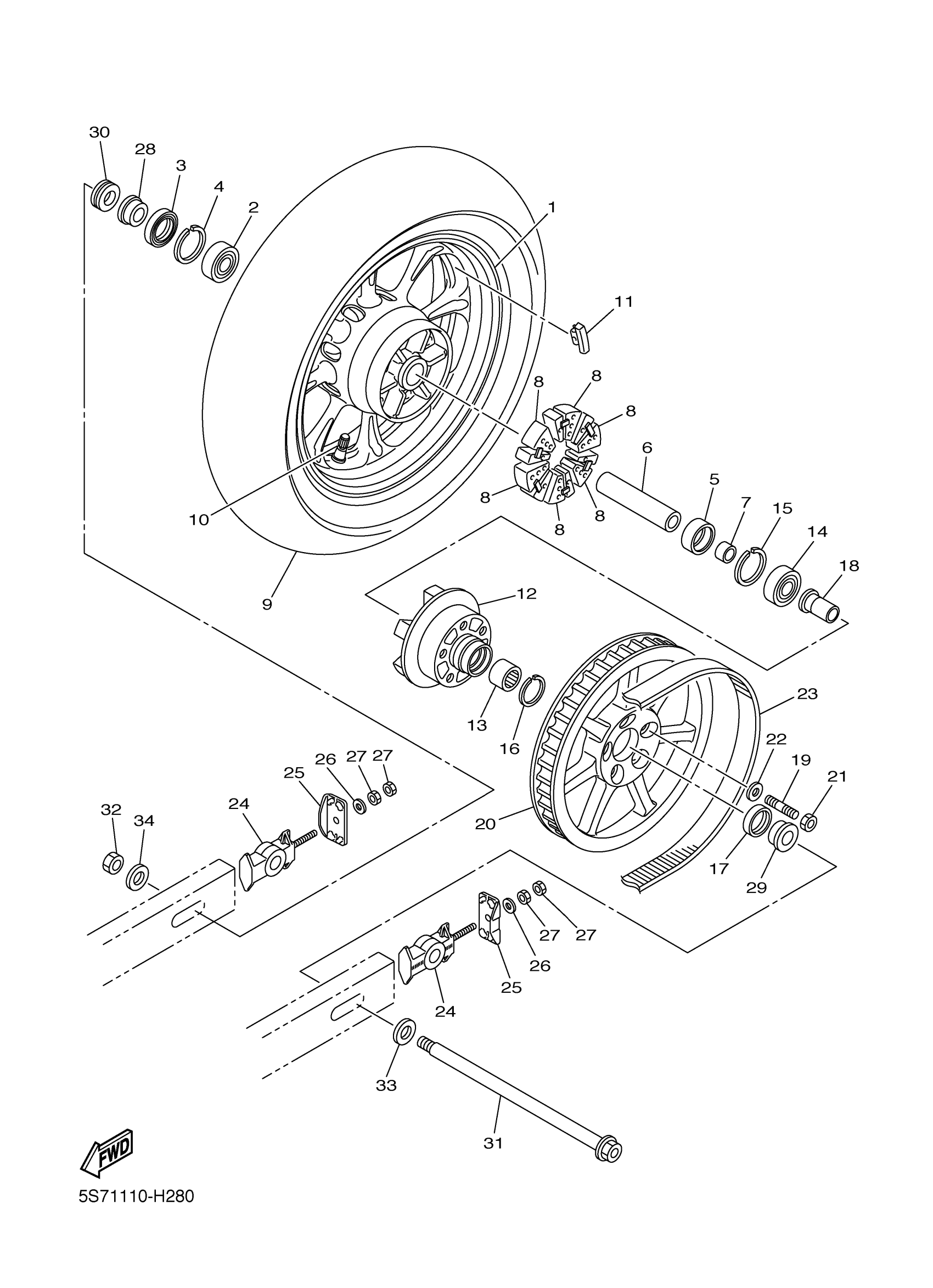

Yamaha XVS95ZR (V STAR 950) 49B4 2010 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
5S7-25338-01-00
Unavailable
3
OIL SEAL
93106-28001-00
Unavailable
8
DAMPER
4WM-25364-00-00
Unavailable
9
TIRE (170/70B16M/C 75H K555)
94117-16001-00
Unavailable
9
TIRE (170/70B16M/C 75H EXEDR)
94117-16009-00
Unavailable
11
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
13
BEARING
93311-32698-00
Unavailable
16
CIRCLIP
93450-35163-00
Unavailable
17
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
18
COLLAR, WHEEL
3D8-25376-00-00
Unavailable
19
BOLT, STUD
95612-12630-00
Unavailable
20
SPROCKET, DRIVEN (70T)
3D8-25470-01-00
Unavailable
21
NUT, U
95614-12100-00
Unavailable
22
WASHER, PLATE
90201-12045-00
Unavailable
23
V-BELT
5S7-46241-10-00
Unavailable
24
PULLER, CHAIN 1
5S7-25388-00-00
Unavailable
25
PLATE 1
5S7-2539F-00-00
Unavailable
26
.. WASHER, PLATE
92990-08600-00
Unavailable
27
NUT(2UJ)
95304-08600-00
Unavailable
28
COLLAR
90387-20033-00
Unavailable
29
COLLAR(3BC)
90387-202X9-00
Unavailable
30
COLLAR, CALIPER
5S7-2583B-00-00
Unavailable
31
AXLE, WHEEL
5S7-25381-00-00
Unavailable
32
NUT, SELF-LOCKING
90185-18009-00
Unavailable
33
WASHER, PLATE
90201-20029-00
Unavailable
34
WASHER, PLATE
90201-18029-00
Unavailable
