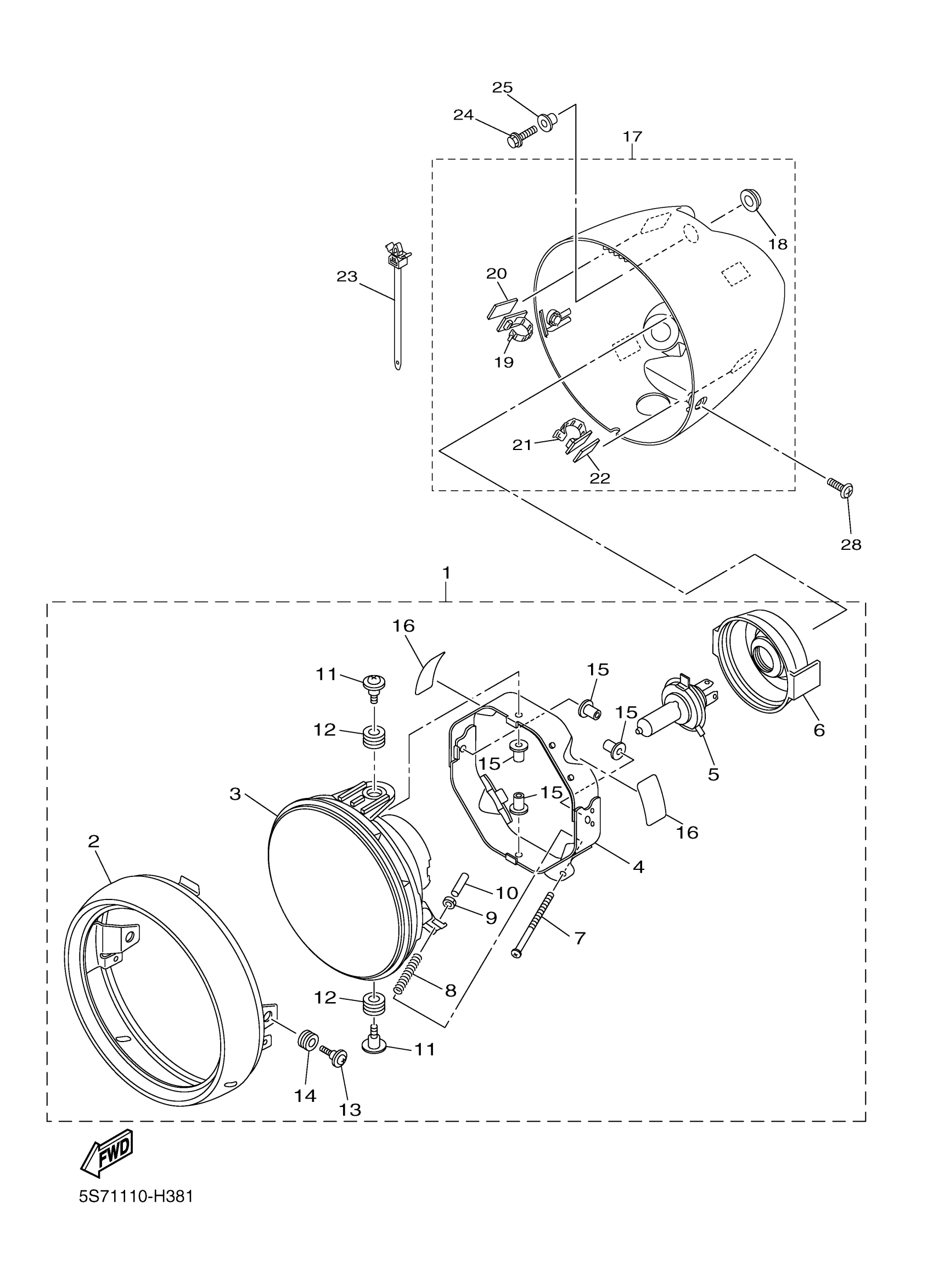

Yamaha XVS95ZR (V STAR 950) 49B4 2010 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

5S7-84310-00-00

$467.99

2

RIM, HEADLIGHT

5S7-84315-00-00

$95.99

3

LENS ASSY

5PX-84320-00-00

$186.99

4

STAY, HEADLIGHT 1

5PX-84318-00-00

$67.99

5

. BULB (12V-60/55W)

5V284314-00-XX

Unavailable

6

COVER, SOCKET

5PX-84397-00-00

$39.99

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

$7.99

8

SPRING, SCREW

5PX-84332-00-00

$6.99

9

NUT, ADJUSTING

5PX-84334-00-00

$6.99

10

CAP,1

5PX-84385-00-00

$6.99

11

SCREW, RIM FITTING

5PX-84325-00-00

$7.99

12

GROMMET

5PX-84354-00-00

$6.99

13

SCREW, RIM FITTING

5PX-84125-00-00

$7.99

14

GROMMET

5PX-84352-00-00

$6.99

15

NUT

5PX-84317-00-00

$10.99

16

SEAL

5PX-21669-01-00

Unavailable

17

BODY ASSY

5S7-84330-00-P1

Unavailable

18

DAMPER, HEADLIGHT 1

42X-84366-00-00

Unavailable

19

CLAMP

90464-20020-00

Unavailable

20

SEAL

5S7-28307-00-00

Unavailable

21

CLAMP

90464-17002-00

Unavailable

22

SEAL 1

5S7-28428-00-00

Unavailable

23

CLAMP

90465-13M76-00

Unavailable

24

BOLT, FLANGE

95022-06025-00

Unavailable

25

COLLAR

90387-06175-00

Unavailable

26

SCREW, BIND(4DN)

98980-05014-00

Unavailable
