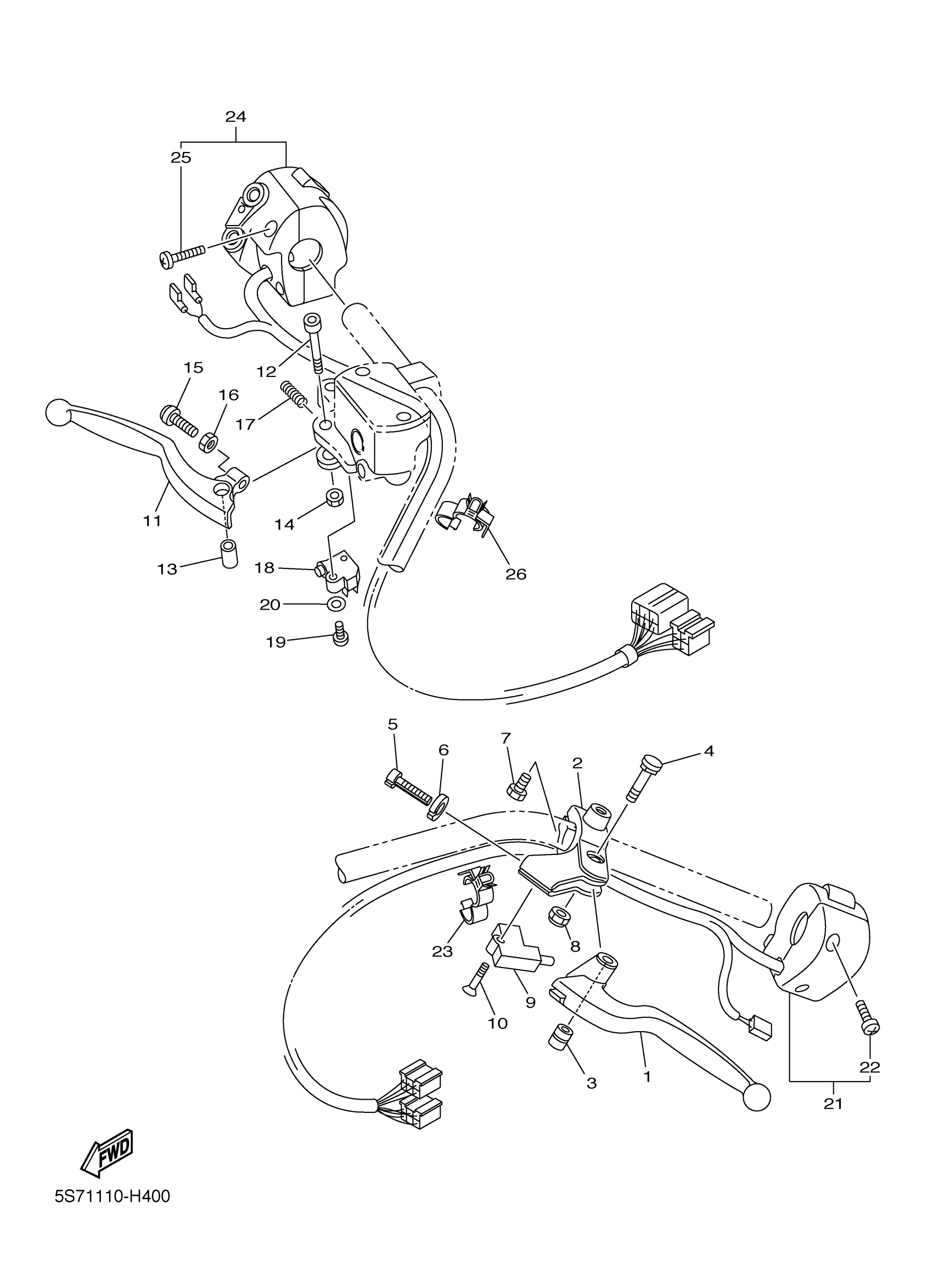

Yamaha XVS95ZR (V STAR 950) 49B4 2010 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 1

5BN-83912-00-00

$51.99

2

HOLDER, LEVER 1

5BN-82911-20-00

$56.99

3

COLLAR, LEVER 1

4TR-83913-00-00

$7.99

4

BOLT, LEVER

4TR-83945-10-00

$14.49

5

BOLT

90123-08002-00

$10.49

6

NUT

90179-08030-00

$5.49

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

SWITCH

3YX-82917-01-00

$43.99

10

SCREW, FLAT HEAD(4BP)

98707-03020-00

$8.49

11

LEVER 2

5S7-83922-00-00

$34.99

12

BOLT, HEXAGON SOCKET HEAD

90110-06265-00

Unavailable

13

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

SCREW, BINDING

90154-06028-00

$7.49

16

NUT

90170-06020-00

Unavailable

17

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

18

SWITCH, ALARM

J45-82503-01-00

Unavailable

19

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

20

WASHER, PLATE

92992-04600-00

Unavailable

21

SWITCH, HANDLE 3

5S7-83973-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05030-00

Unavailable

23

CLAMP(4HM)

90464-15192-00

Unavailable

24

SWITCH, HANDLE 4

5S7-83972-00-00

Unavailable

25

SCREW, PAN HEAD

98517-05030-00

Unavailable

26

CLAMP(4HM)

90464-15192-00

Unavailable
