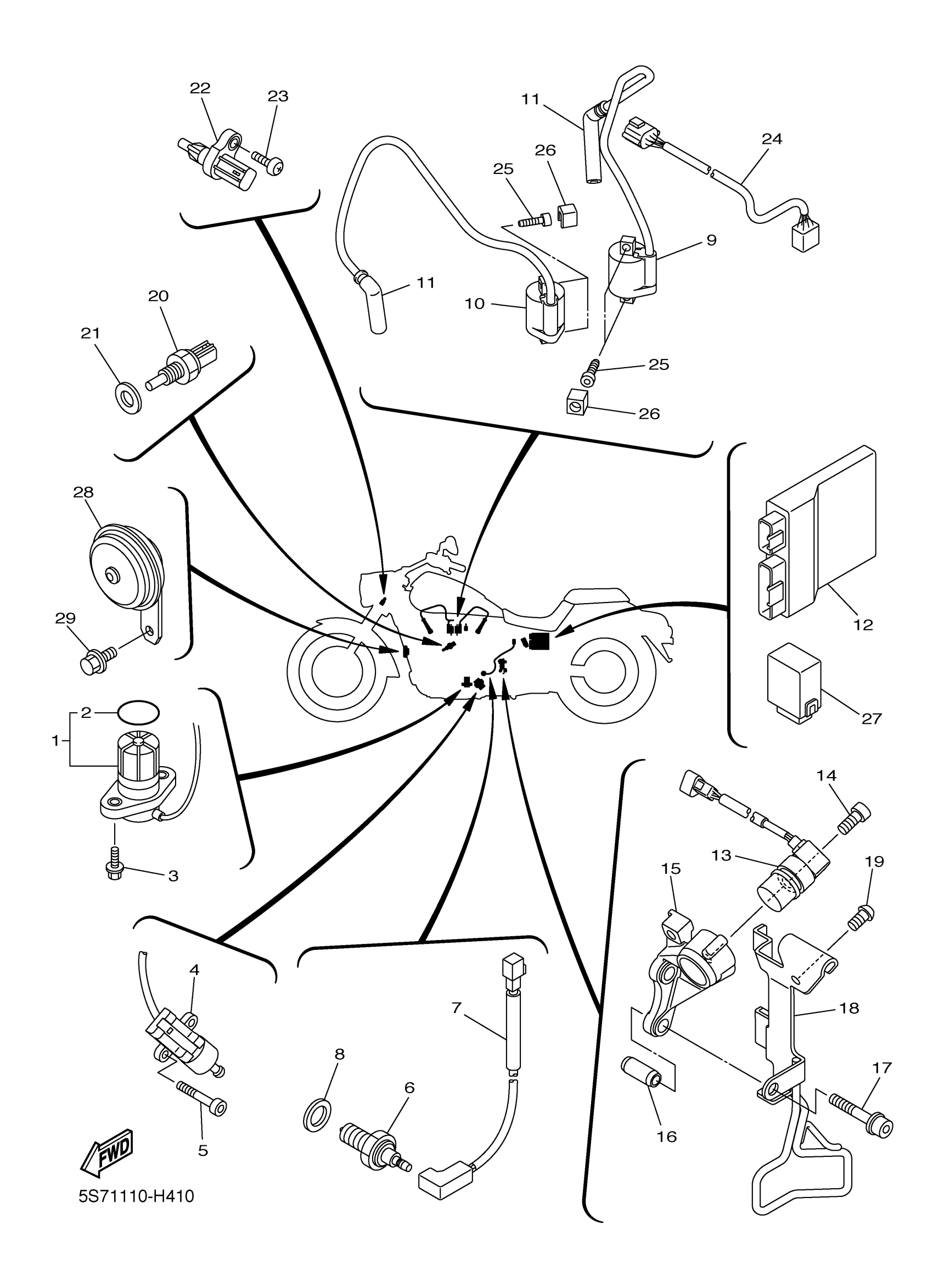

Yamaha XVS95ZR (V STAR 950) 49B4 2010 ELECTRICAL 1 Diagram

#

Description
Price

1

OIL LEVEL GAUGE ASSY

5VY-85720-00-00

Unavailable

2

O-RING

5VY-8A8E0-00-00

$14.49

3

BOLT, FLANGE

95022-06016-00

$3.62

4

SWITCH, SIDE STAND

3D8-82566-71-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-05025-00

Unavailable

6

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

7

WIRE, SUB LEAD

5S7-82509-10-00

Unavailable

8

GASKET (1KH,1.0T)

90430-10148-00

$5.60

9

IGNITION COIL ASSY

5S7-82310-03-00

Unavailable

10

IGNITION COIL ASSY

1D7-82310-10-00

Unavailable

11

PLUG CAP ASSY

5S7-82370-00-00

$72.99

12

ENGINE CONTROL UNIT ASSY

5S7-8591A-00-00

Unavailable

13

SENSOR, SPEED

5S7-83755-01-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD

90312-06014-00

Unavailable

15

BRACKET

5S7-81948-00-00

Unavailable

16

PIN, DOWEL

99530-08012-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06300-00

Unavailable

18

PLATE

5S7-81845-01-00

Unavailable

19

SCREW

90149-06041-00

Unavailable

20

THERMO UNIT

52B-H3591-00-00

Unavailable

21

WASHER PLATE 341839090000

90201-10128-00

Unavailable

22

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

23

SCREW, PAN

98517-05012-00

Unavailable

24

WIRE, SUB LEAD

5S7-82509-00-00

Unavailable

25

BOLT,SOCKET

91380-06016-00

Unavailable

26

CAP

5S7-21399-00-00

Unavailable

27

FLASHER RELAY ASSY

5S7-83350-01-00

Unavailable

28

HORN

3D8-83371-00-00

Unavailable

29

BOLT, WASHER BASED

90105-082A5-00

Unavailable
