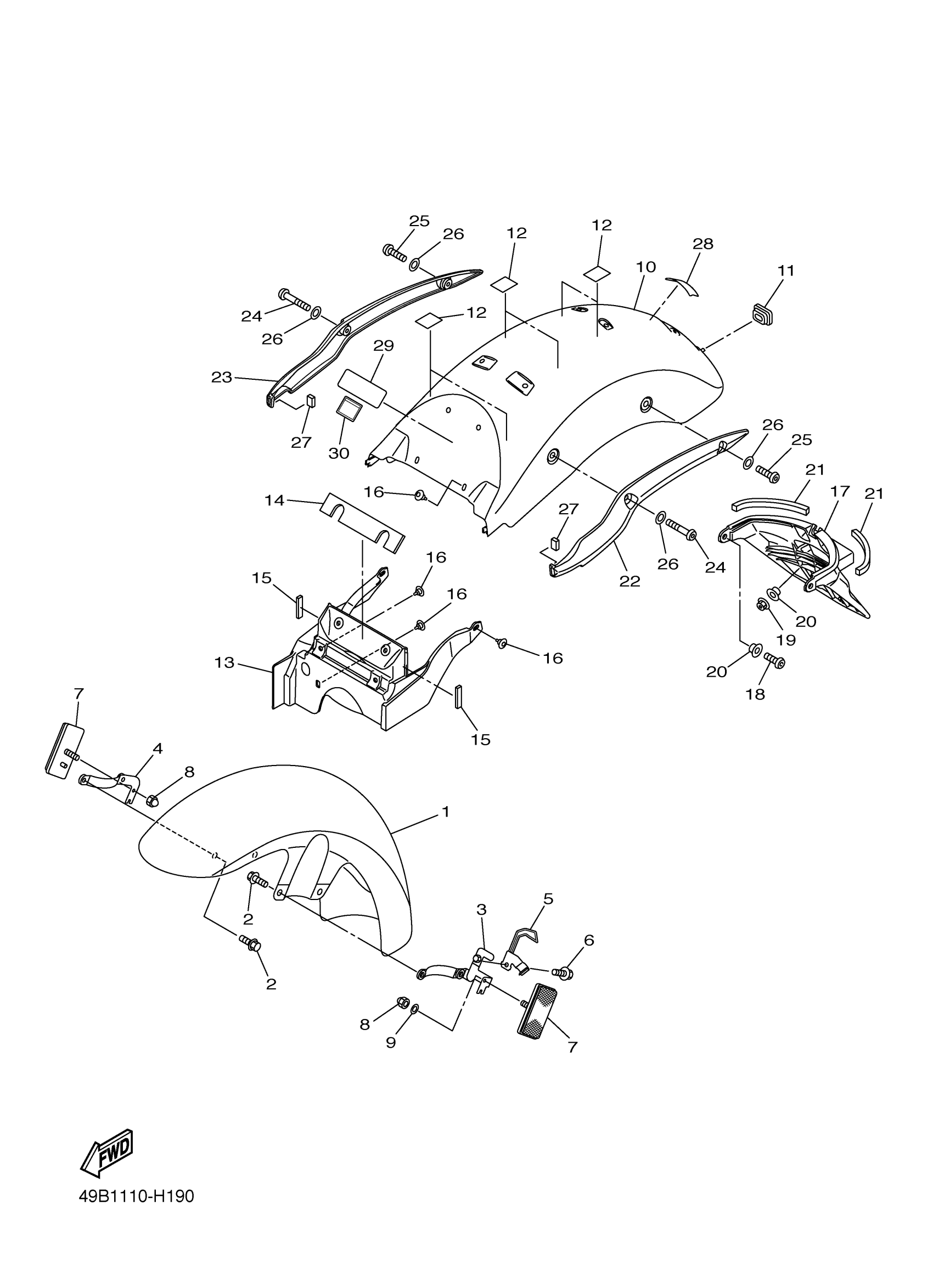

Yamaha XVS95YCB (V STAR 950 CA) 49B2 2009 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5S7-21510-01-P0

Unavailable

2

BOLT, FLANGE

95812-08020-00

$2.80

3

STAY 1

5S7-21587-00-00

Unavailable

4

STAY 2

5S7-21588-00-00

Unavailable

5

HOLDER,WIRE 1

3D8-21597-00-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

7

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

8

NUT, CROWN

90176-05004-00

$4.72

9

WASHER, PLAIN (3GDF)

90201-051K1-00

$8.49

10

REAR FENDER COMP.

5S7-21610-01-P0

Unavailable

11

GROMMET

90480-13027-00

$3.28

12

SEAL

5PX-21669-01-00

$11.99

13

GUARD, MUD

5S7-21629-00-P0

Unavailable

14

DAMPER 1

5S7-21638-00-00

$1.25

15

DAMPER 2

5S7-21639-00-00

Unavailable

16

RIVET(4PH)

90269-07077-00

Unavailable

17

FENDER 2

5S7-2162R-01-00

Unavailable

18

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

19

NUT, U FLANGE

95604-06200-00

Unavailable

20

COLLAR (3L1)

90387-07717-00

Unavailable

21

SEAL

4DN-21669-00-00

Unavailable

22

STAY 1

5S7-2164F-01-00

Unavailable

23

STAY 2

5S7-2164G-01-00

Unavailable

24

BOLT, BUTTON HEAD

92014-08045-00

Unavailable

25

BOLT, BUTTON HEAD

92014-08030-00

Unavailable

26

WASHER, PLAIN

92990-08200-00

Unavailable

27

DAMPER, LOCATING 1

3MA-24181-00-00

Unavailable

28

EMBLEM, YAMAHA

3WF-2153E-71-00

Unavailable

29

PLATE, EPA (NON CALIFORNIA)

5S7-2179W-00-00

Unavailable
