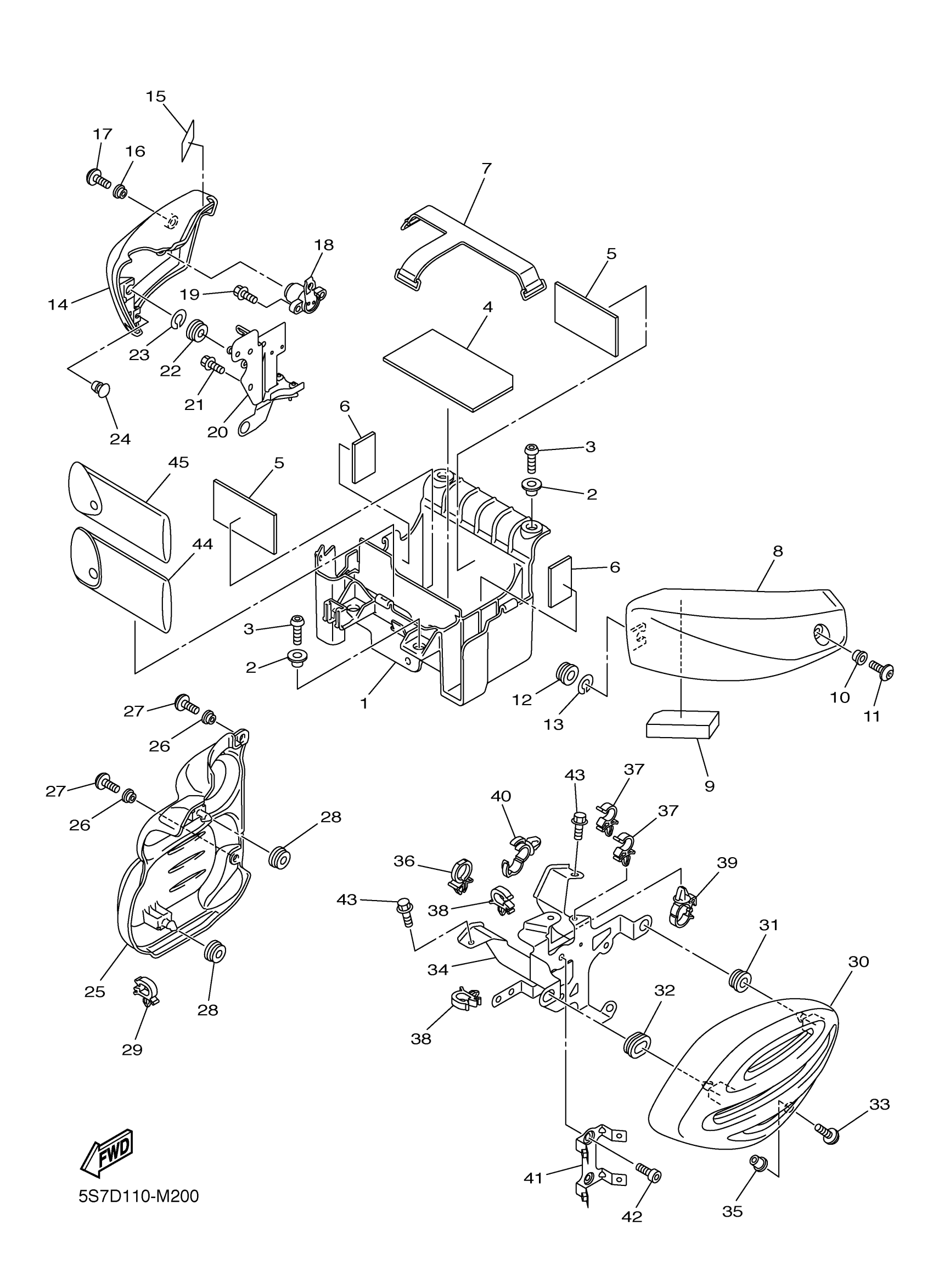

Yamaha XVS95DW (V STAR 950) 5S7D0 2013 SIDE COVER Diagram
#
1
BOX, BATTERY
5S7-2177G-00-00
Unavailable
2
COLLAR
90387-06267-00
Unavailable
6
DAMPER
5S7-2139X-00-00
Unavailable
7
BAND, BATTERY
5S7-82131-00-00
Unavailable
9
DAMPER
5S7-21852-00-00
Unavailable
13
WASHER, SPECIAL 1
5S7-21715-00-00
Unavailable
14
COVER, SIDE 2
5S7-21721-01-P0
Unavailable
15
SEAL 1
19D-21732-00-00
Unavailable
17
SCREW
90149-06023-00
Unavailable
18
ROTOR SET
5PX-W2470-00-00
Unavailable
19
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
20
BRACKET 4
5S7-2172N-00-00
Unavailable
21
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
23
WASHER, SPECIAL 1
5S7-21715-00-00
Unavailable
24
PLUG(1NL)
90338-07180-00
Unavailable
25
COVER, SIDE 4
5S7-21741-00-00
Unavailable
26
COLLAR
90387-06231-00
Unavailable
28
GROMMET(4FU)
90480-13567-00
Unavailable
29
CLAMP
90464-11003-00
Unavailable
30
COVER, SIDE 3
5S7-21731-20-33
Unavailable
31
GROMMET(4FU)
90480-13567-00
Unavailable
32
GROMMET(4DN)
90480-01558-00
Unavailable
33
SCREW(3YF)
90149-05299-00
Unavailable
34
BRACKET 3
5S7-2175V-00-00
Unavailable
35
NUT
90179-05003-00
Unavailable
36
CLAMP
90464-12001-00
Unavailable
37
CLAMP(3LD)
90464-09129-00
Unavailable
38
CLAMP
90464-11003-00
Unavailable
39
CLAMP
90464-20010-00
Unavailable
40
CLAMP(4AP)
90464-20181-00
Unavailable
41
BRACKET, COIL
3D8-21359-01-00
Unavailable
42
BOLT,SOCKET
91317-06010-00
Unavailable
43
BOLT, FLANGE (3JPE)
95024-08016-00
Unavailable
44
TOOL KIT
3D8-28100-00-00
Unavailable
45
TOOL KIT, 2
5S7-28110-00-00
Unavailable
