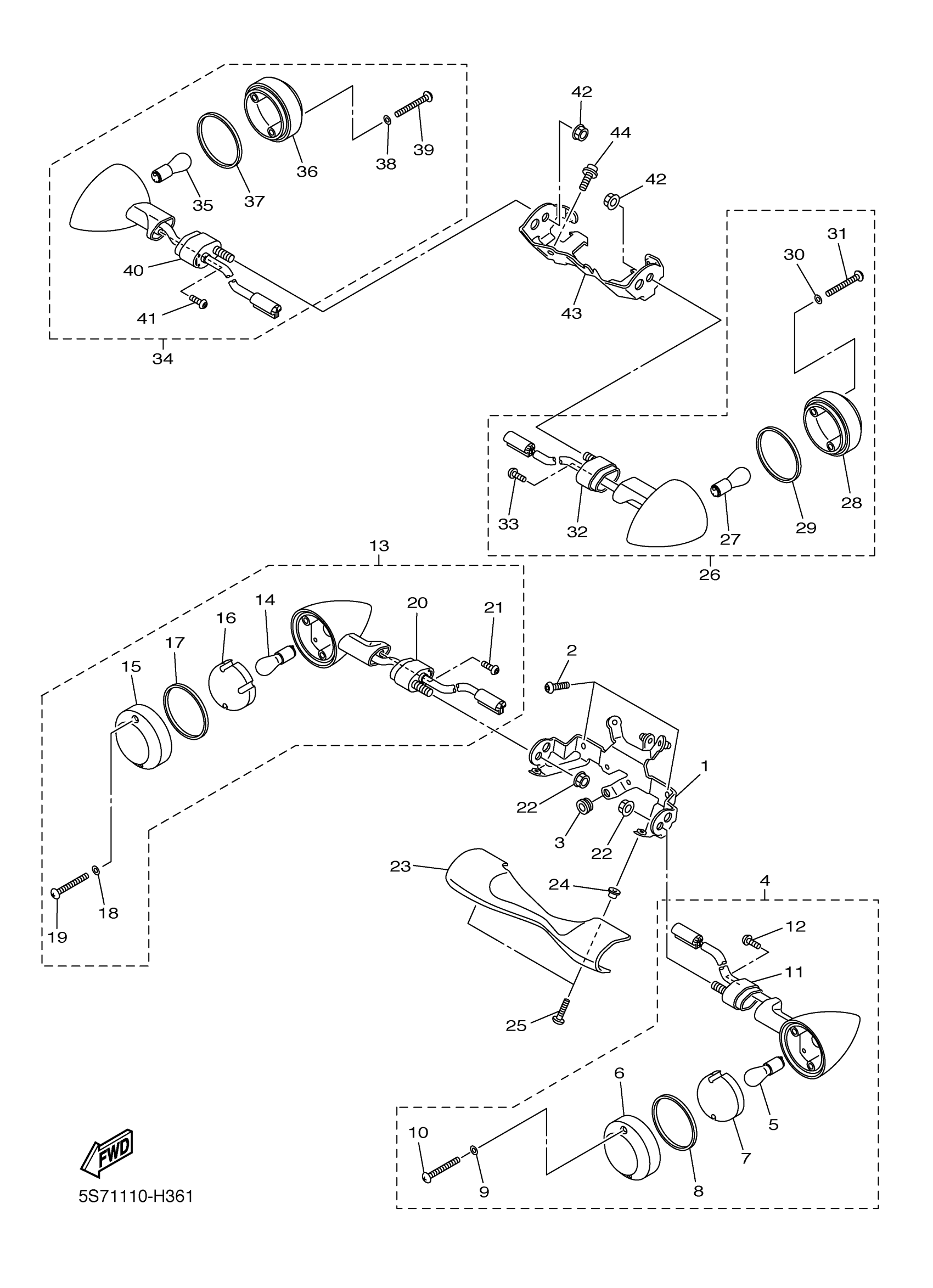

Yamaha XVS95DW (V STAR 950) 5S7D0 2013 FLASHER LIGHT Diagram

#

Description
Price

1

STAY, HEADLIGHT

5S7-23174-00-00

$125.99

2

BOLT, BUTTON HEAD

92012-08016-00

$9.49

3

GROMMET

90480-13014-00

$8.49

4

FRONT FLASHER LIGHT ASSY 1

3D8-83310-00-00

$106.99

5

BULB

1A2-84714-50-00

$14.49

6

LENS, FLASHER

3D8-83312-00-00

$13.49

7

LENS, INNER 1

3D8-8333L-00-00

Unavailable

8

GASKET, FLASHER LENS

3D8-83313-00-00

$8.99

9

WASHER

3D8-83348-00-00

$4.52

10

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

11

STAY, FLASHER 2

3D8-83369-00-00

$37.99

12

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

13

FRONT FLASHER LIGHT ASSY 2

3D8-83320-00-00

$109.99

14

BULB

1A2-84714-50-00

$14.49

15

LENS, FLASHER

3D8-83312-00-00

$13.49

16

LENS, INNER 1

3D8-8333L-00-00

Unavailable

17

GASKET, FLASHER LENS

3D8-83313-00-00

$8.99

18

WASHER

3D8-83348-00-00

$4.52

19

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

20

STAY, FLASHER 2

3D8-83369-00-00

$37.99

21

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

22

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

23

COVER, OUTER 1

3D8-23122-10-00

Unavailable

24

COLLAR

90387-06255-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-05037-00

Unavailable

26

REAR FLASHER LIGHT ASSY 1

3D8-83330-00-00

Unavailable

27

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

28

LENS, FLASHER

3D8-83312-00-00

$13.49

29

GASKET, FLASHER LENS

3D8-83313-00-00

$8.99

30

WASHER

3D8-83348-00-00

$4.52

31

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

32

STAY, FLASHER 2

3D8-83369-00-00

$37.99

33

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

34

REAR FLASHER LIGHT ASSY 2

3D8-83340-00-00

Unavailable

35

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

36

LENS, FLASHER

3D8-83312-00-00

$13.49

37

GASKET, FLASHER LENS

3D8-83313-00-00

$8.99

38

WASHER

3D8-83348-00-00

$4.52

39

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

40

STAY, FLASHER 2

3D8-83369-00-00

$37.99

41

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

42

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

43

STAY, FLASHER 1

5S7-83368-10-00

Unavailable

44

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

Unavailable
