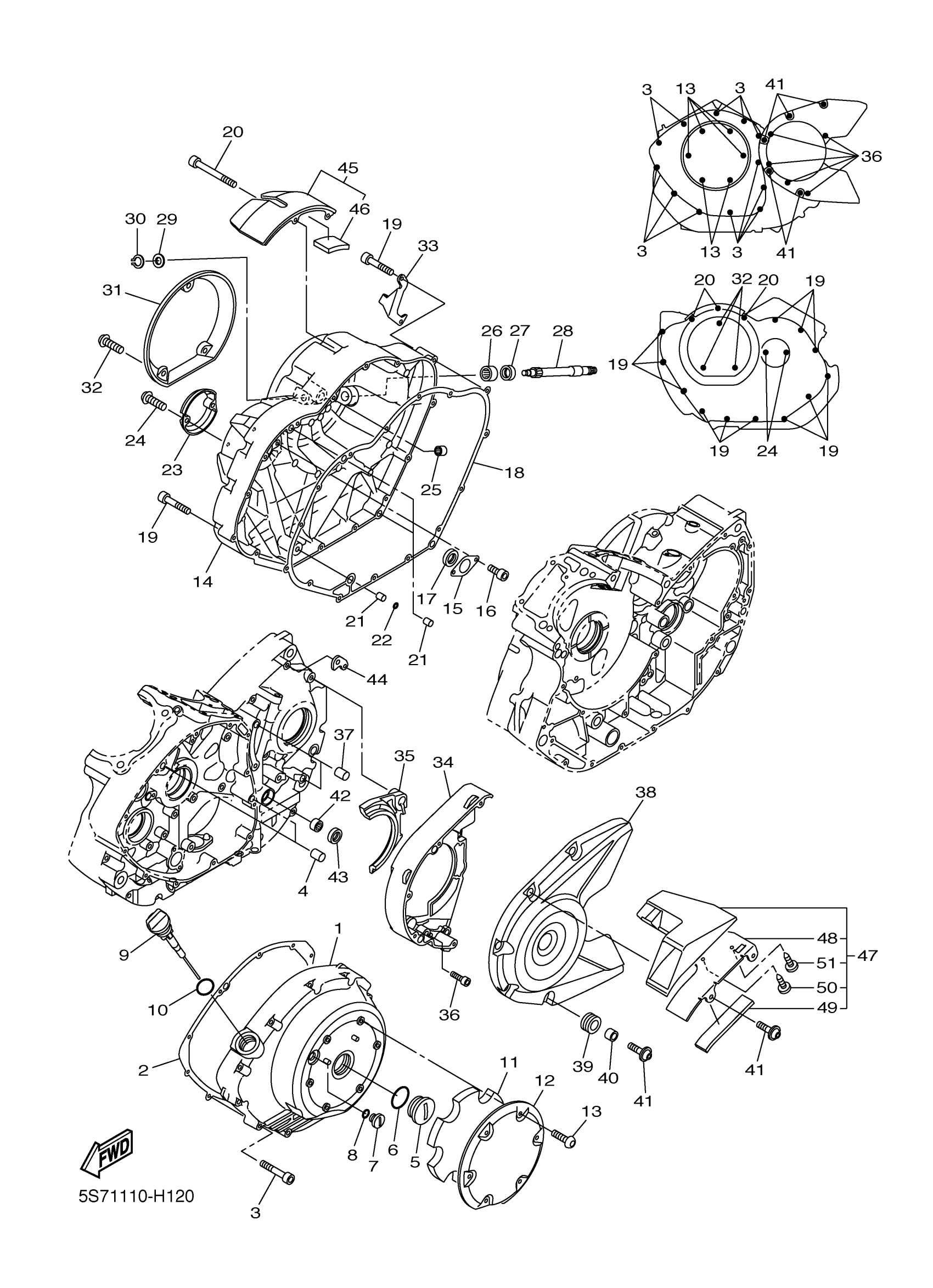

Yamaha XVS95DW (V STAR 950) 5S7D0 2013 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5S7-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3D8-15451-00-00

$23.99

3

BOLT, SOCKET

91314-06040-00

$8.49

4

PIN, DOWEL

99530-08012-00

Unavailable

5

PLUG, STRAIGHT SCREW (5Y1)

90340-36078-00

$14.99

6

O-RING

93210-35804-00

$0.48

7

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

8

O-RING (2H9)

93210-14369-00

$7.49

9

PLUG, OIL LEVEL

5S7-15362-10-00

$30.99

10

O-RING(1KT)

93210-27778-00

$8.49

11

DAMPER 1

5S7-1542A-00-00

$20.99

12

COVER

3D8-15492-00-00

Unavailable

13

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

14

COVER, CRANKCASE 2

5S7-15421-01-00

Unavailable

15

PLATE, BEARING COVER

3D8-15388-00-00

Unavailable

16

BOLT,SOCKET

91317-06012-00

Unavailable

17

OIL SEAL (4X7)

93101-14102-00

Unavailable

18

GASKET, CRANKCASE COVER 2

3D8-15461-00-00

Unavailable

19

BOLT, SOCKET

91314-06040-00

$8.49

20

BOLT, SOCKET

91314-06065-00

Unavailable

21

PIN, DOWEL

99530-08012-00

Unavailable

22

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

23

COVER 2

3D8-15423-01-00

Unavailable

24

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

25

BEARING

93317-11096-00

Unavailable

26

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

27

OIL SEAL (3X3)

93102-15212-00

Unavailable

28

AXLE, PUSH LEVER

3D8-16382-00-00

Unavailable

29

.. WASHER, PLATE

92990-08600-00

Unavailable

30

CIRCLIP

99080-07600-00

Unavailable

31

COVER, GENERATOR

5S7-15415-00-00

Unavailable

32

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

33

HOLDER, CLUTCH CABLE

3D8-15441-00-00

Unavailable

34

STAY,CRANKCASECOVER 1

3D8-1541A-01-00

Unavailable

35

DAMPER 4

3D8-15337-02-00

Unavailable

36

BOLT, SOCKET

91317-08035-00

Unavailable

37

PIN, DOWEL

99590-10114-00

Unavailable

38

COVER, OIL PUMP 2

5S7-15426-00-00

Unavailable

39

GROMMET

90480-13022-00

Unavailable

40

COLLAR

90387-06043-00

Unavailable

41

BOLT,HEX. SOCKET BUTTON

90111-06130-00

Unavailable

42

BEARING

93317-11287-00

Unavailable

43

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable

44

STAY 1

3D8-15544-00-00

Unavailable

45

PROTECTOR, COVER

5S7-15499-00-00

Unavailable

46

DAMPER

5S7-15789-00-00

Unavailable

47

AIR DUCT ASSY

1TP-15470-00-00

Unavailable

48

PLATE

5S7-15113-00-00

Unavailable

49

DAMPER 1

5S7-15316-00-00

Unavailable

50

SCREW, TRUSS TAP.

97707-40014-00

Unavailable

51

SCREW, TAPPING

97702-40010-00

Unavailable
