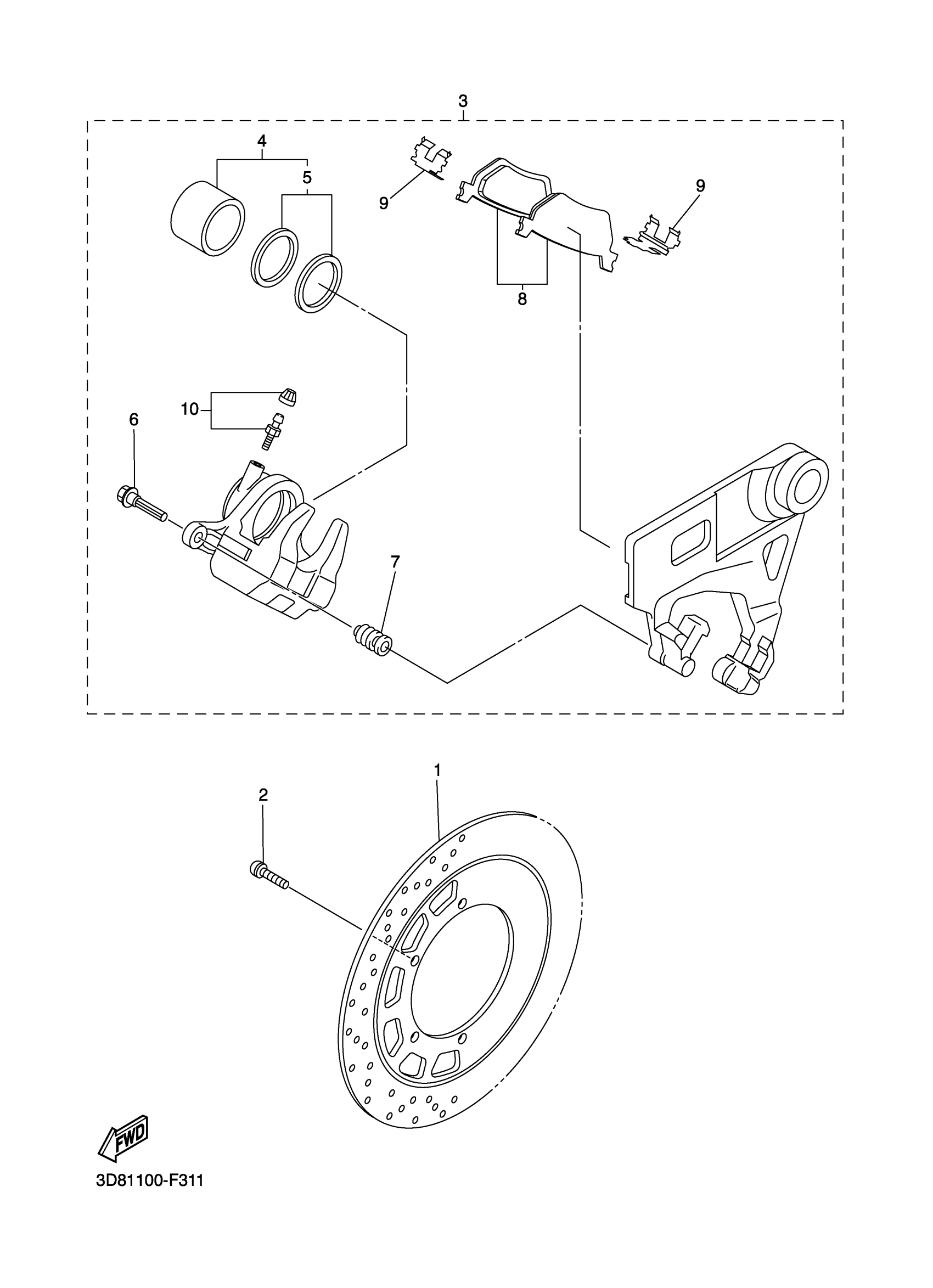

Yamaha XVS95CTZG (V STAR 950 TOURER) 26S4 2010 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

3D8-2582W-00-00

$202.15

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$1.81

3

CALIPER ASSY, REAR 2

3D8-2580W-10-00

$454.42

4

PISTON ASSY, CALIPER

1D7-25802-00-00

$45.90

5

CALIPER SEAL KIT

5JW-25803-00-00

$13.44

6

PIN, SLIDE

5JW-25914-10-00

$17.93

7

BOOT 2

4TT-25937-00-00

$13.61

8

BRAKE PAD KIT 2

3D8-25806-00-00

$45.31

9

SUPPORT, PAD

1D7-25919-00-00

$14.91

10

BLEED SCREW KIT

15B-W0048-00-00

$16.89
