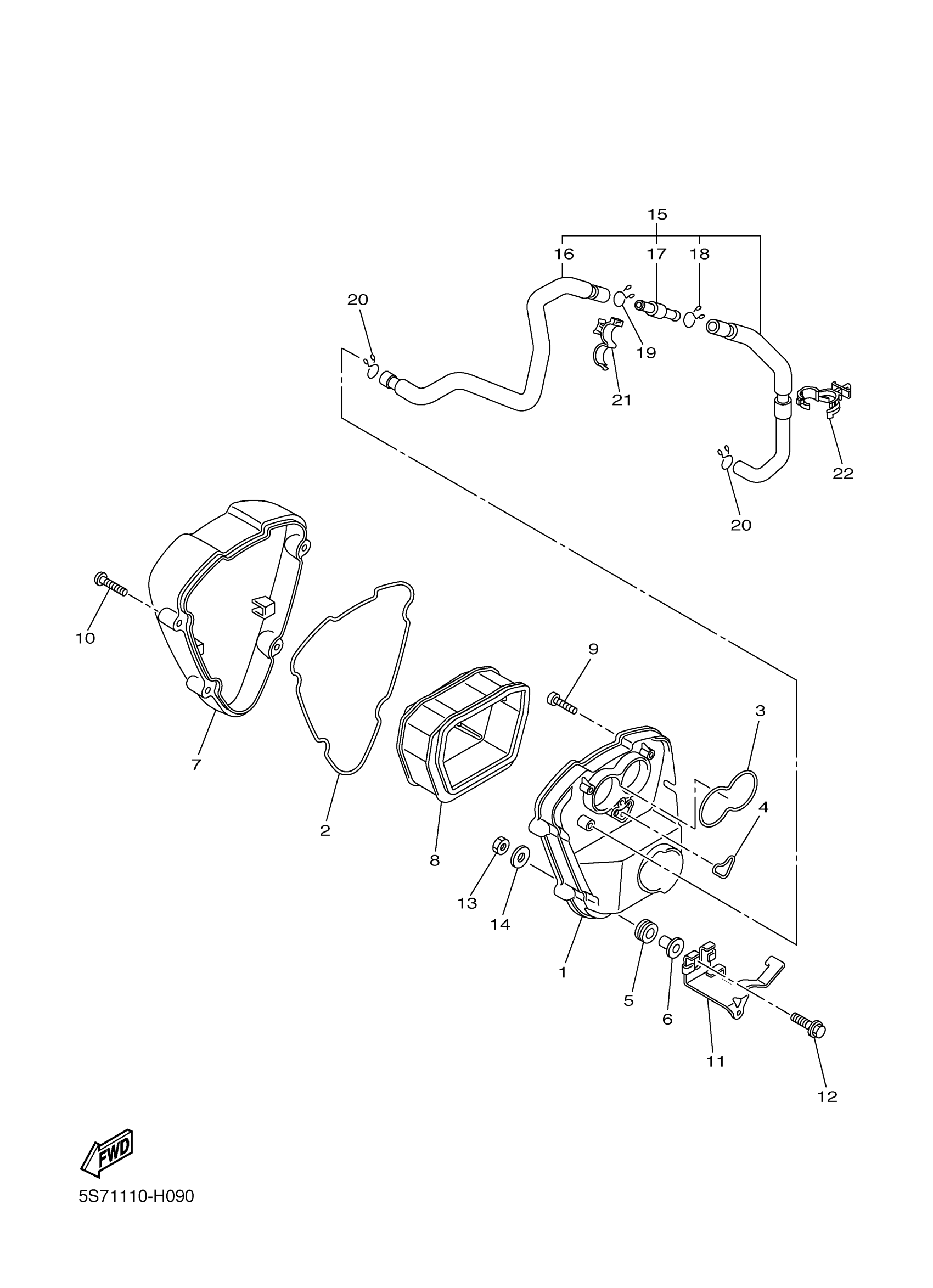

Yamaha XVS95CTZCB (V STAR 950 TOURER CA) 49C5 2010 INTAKE 2 Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

5S7-14411-00-00

Unavailable

2

SEAL

51Y-14462-00-00

$11.61

3

SEAL

3D8-14457-00-00

$5.55

4

SEAL

3D8-14462-00-00

$5.55

5

GROMMET

90480-11006-00

$2.75

6

COLLAR(50M)

90387-087L0-00

$5.76

7

CASE, AIR CLEANER 2

3D8-14421-01-00

$184.36

8

ELEMENT, AIR CLEANER

3D8-14451-00-00

$31.68

9

BOLT

91312-05025-00

$5.81

10

BOLT,HEX. SOCKET BUTTON

90111-05024-00

$3.33

11

STAY 1

3D8-14498-10-00

Unavailable

12

BOLT, HEXAGON

97017-06020-00

$2.37

13

NUT, FLANGE(7NB)

95780-06500-00

$1.88

14

WASHER, PLATE

90201-06088-00

Unavailable

15

PIPE, BREATHER 1

5S7-11166-00-00

Unavailable

16

PIPE 3

5S7-1113J-00-00

Unavailable

17

JOINT, HOSE 4

6S5-12594-00-00

$4.55

18

CLIP

90467-170A2-00

Unavailable

19

CLIP

90467-170A2-00

Unavailable

20

CLIP(62Y)

90467-15M14-00

$3.21

21

CLAMP(4GY)

90464-20191-00

Unavailable

22

CLAMP

90464-18011-00

Unavailable
