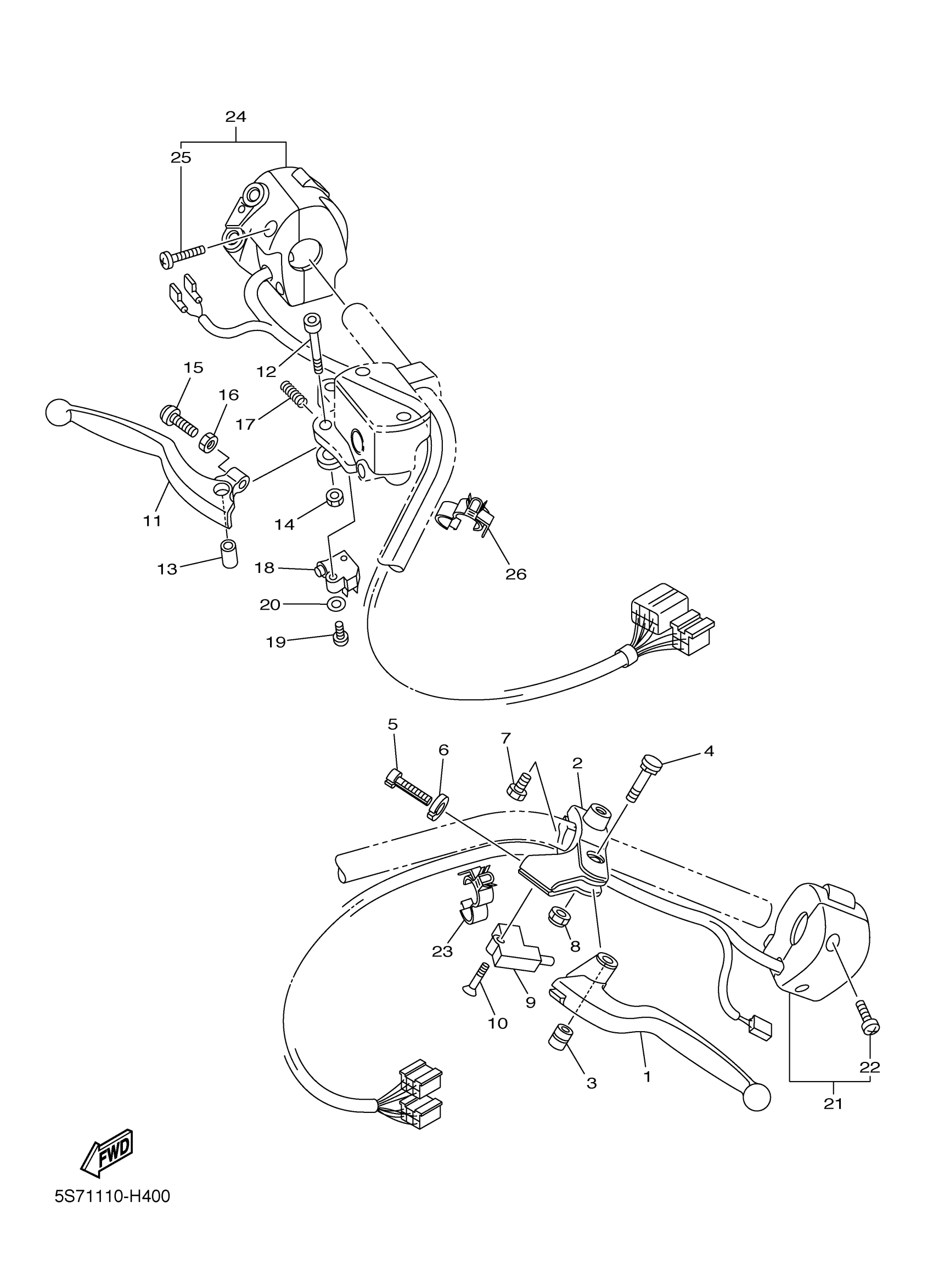

Yamaha XVS95CTZCB (V STAR 950 TOURER CA) 49C5 2010 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 1

5BN-83912-00-00

$42.23

2

HOLDER, LEVER 1

5BN-82911-20-00

$44.67

3

COLLAR, LEVER 1

4TR-83913-00-00

$6.22

4

BOLT, LEVER

4TR-83945-10-00

$13.06

5

BOLT

90123-08002-00

$8.57

6

NUT

90179-08030-00

$3.63

7

BOLT, HEXAGON

97017-06020-00

$2.37

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

SWITCH

3YX-82917-01-00

$37.06

10

SCREW, FLAT HEAD(4BP)

98707-03020-00

$6.22

11

LEVER 2

5S7-83922-00-00

$28.15

12

BOLT, HEXAGON SOCKET HEAD

90110-06265-00

Unavailable

13

COLLAR, LEVER 1

36Y-83913-01-00

$8.33

14

NUT, SELF-LOCKING

95617-06100-00

$2.17

15

SCREW, BINDING

90154-06028-00

$5.17

16

NUT

90170-06020-00

Unavailable

17

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

18

SWITCH, ALARM

J45-82503-01-00

Unavailable

19

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

20

WASHER, PLAIN (646)

92990-04600-00

Unavailable

21

SWITCH, HANDLE 3

5S7-83973-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05030-00

Unavailable

23

CLAMP(4HM)

90464-15192-00

Unavailable

24

SWITCH, HANDLE 4

5S7-83972-00-00

Unavailable

25

SCREW, PAN HEAD

98517-05030-00

Unavailable

26

CLAMP(4HM)

90464-15192-00

Unavailable
