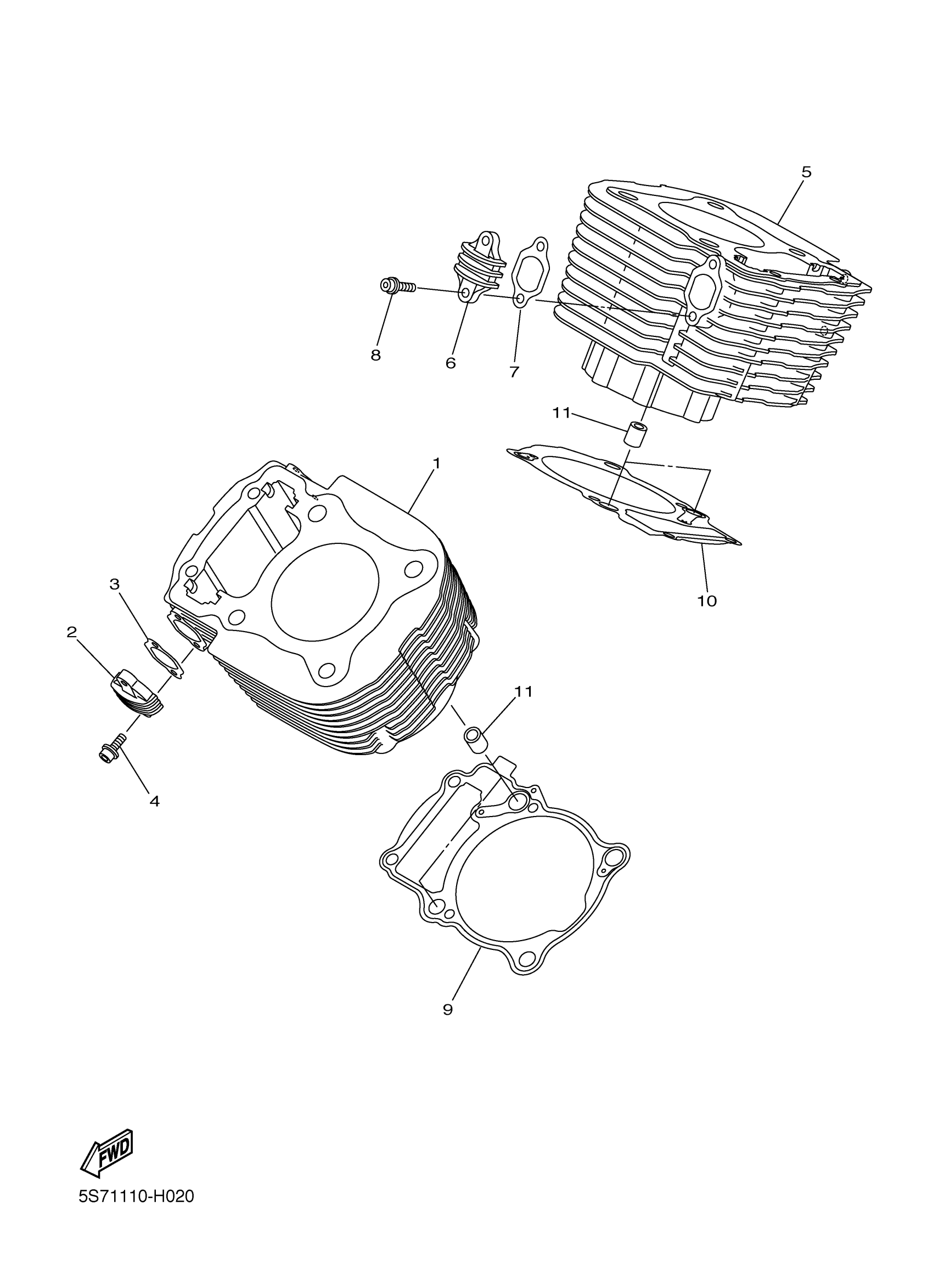

Yamaha XVS95CTYR (V STAR 950 TOURER) 49C10 2009 CYLINDER Diagram

#

Description

Price

1

CYLINDER 1

5S7-11311-00-00

Unavailable

2

CAP, TENSIONER CASE

5S7-12215-00-00

$23.72

3

GASKET

5S7-12214-00-00

$1.83

4

BOLT

90109-06015-00

$3.73

5

CYLINDER 1

5S7-11311-00-00

Unavailable

6

CAP, TENSIONER CASE

5S7-12215-00-00

$23.72

7

GASKET

5S7-12214-00-00

$1.83

8

BOLT

90109-06015-00

$3.73

9

GASKET, CYLINDER

5S7-11351-00-00

$23.89

10

GASKET, CYLINDER 2

5S7-11352-00-00

$35.55

11

PIN, DOWEL(3XW)

91808-16023-00

$5.26
