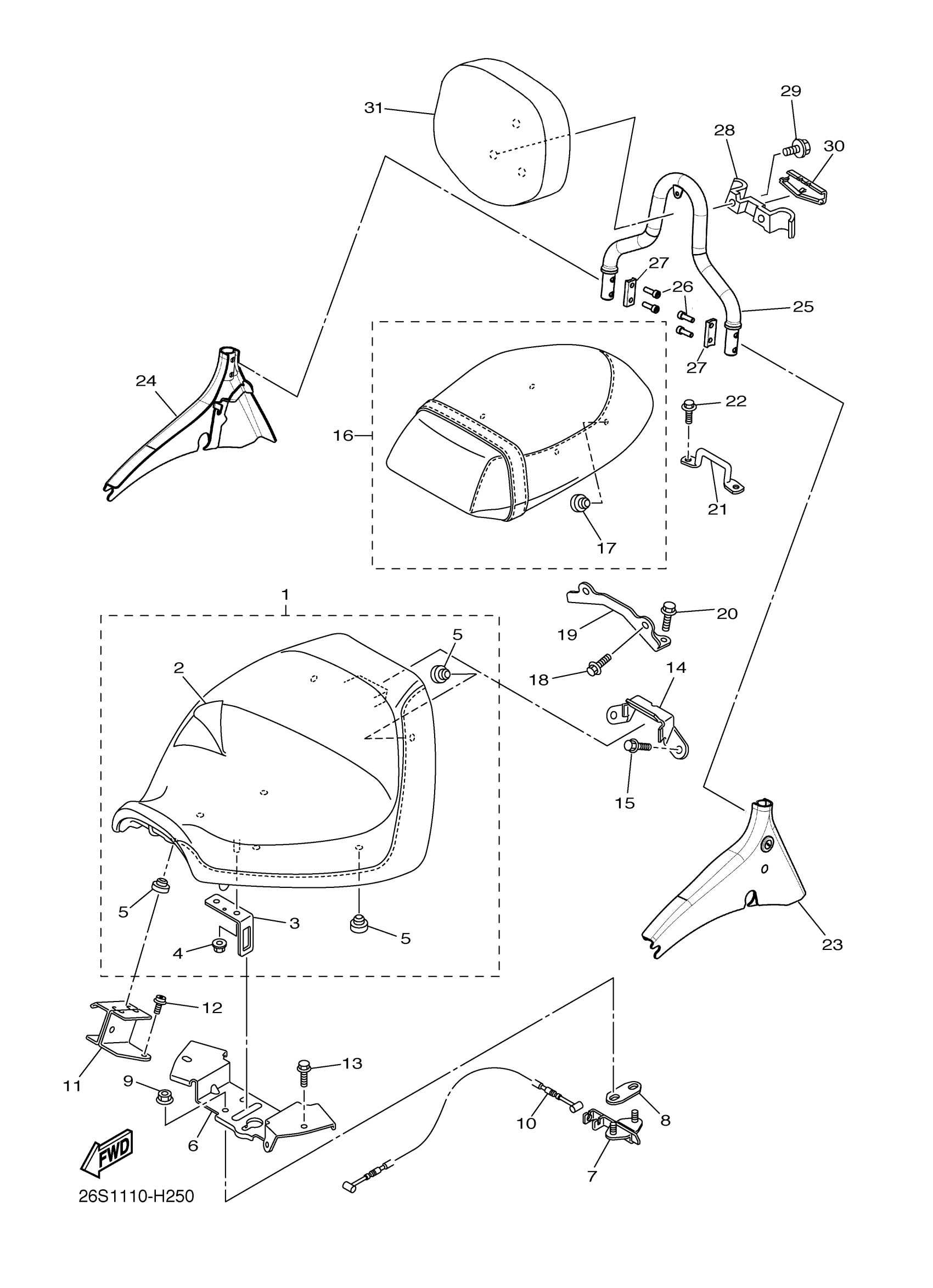

Yamaha XVS95CTHR (V STAR 950 TOURER) 26SS 2017 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
5S7-24710-02-00
Unavailable
2
SEAT COVER COMP.
5S7-2470F-01-00
Unavailable
6
BRACKET, SEAT 1
5S7-21341-00-00
Unavailable
8
PLATE
4BP-24792-00-00
Unavailable
10
CABLE, SEAT LOCK
5S7-2478E-00-00
Unavailable
11
BRACKET, SEAT LEVER 2
5S7-2475J-00-00
Unavailable
14
BRACKET
5S7-2475N-00-00
Unavailable
16
TANDEM SEAT ASSY
5S7-24750-01-00
Unavailable
19
BRACKET, SEAT LEVER 1
1D7-2475H-00-00
Unavailable
21
BRACKET 6
5S7-2475R-00-00
Unavailable
23
SIDE ARM REST LEFT
5S7-F840R-V0-00
Unavailable
24
ARM REST ASSY 2
5S7-F840T-V0-00
Unavailable
25
SHORT BACKREST UPRIGHT
5S6-F16C0-V1-00
Unavailable
26
BOLT, HEX. SOCKET HEAD
90111-08838-00
Unavailable
27
PLATE
2C5-F8417-00-00
Unavailable
28
STAY 2
5GA-2164G-00-00
Unavailable
29
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
30
EMBLEM
4NL-24786-02-00
Unavailable
31
BACK REST ASSY
5GA-2840F-40-00
Unavailable
