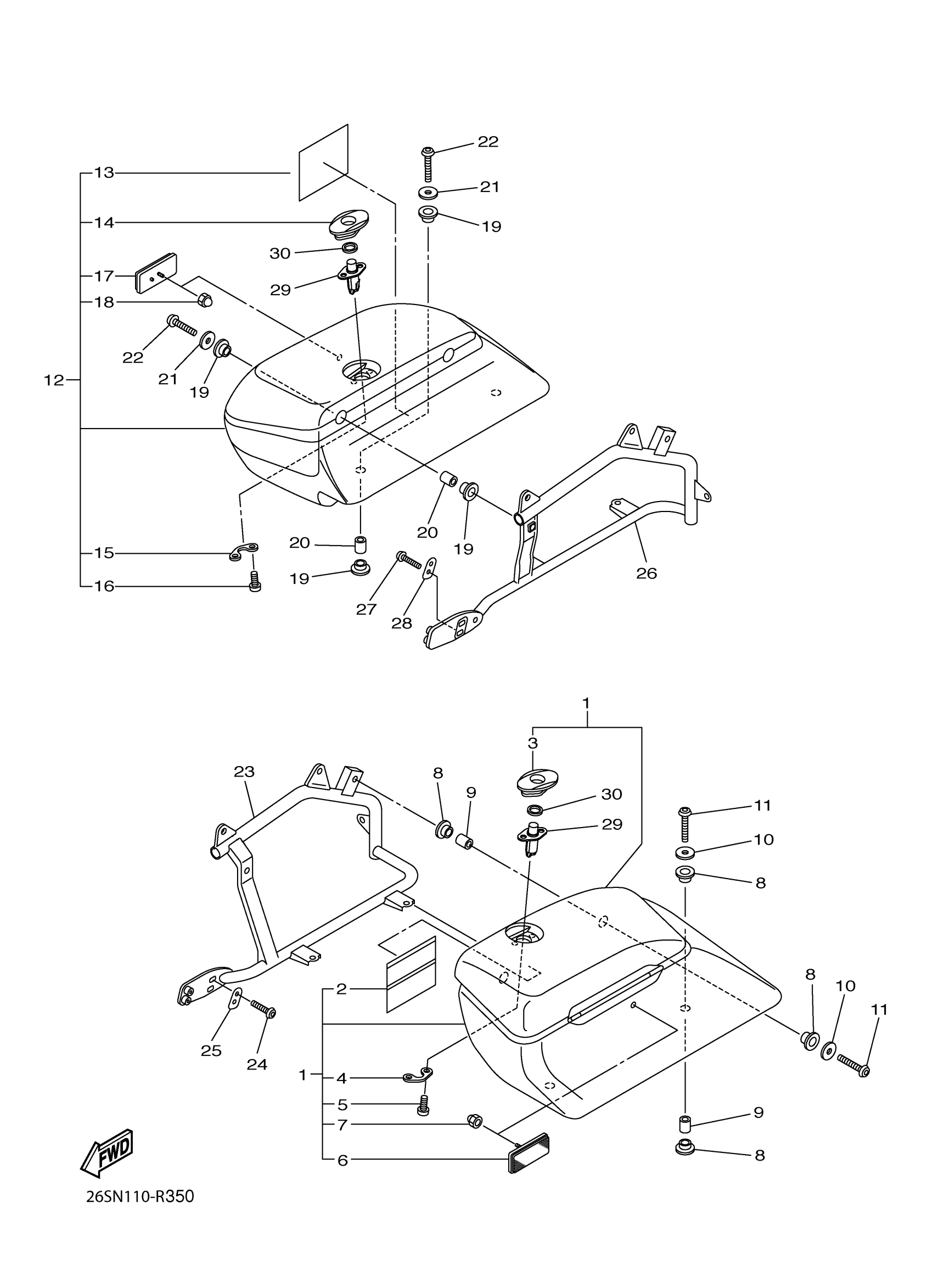

Yamaha XVS95CTHR (V STAR 950 TOURER) 26SS 2017 SADDLEBAG Diagram

#

Description
Price

1

SADDLEBAG COMP. 1

26S-F8430-00-00

Unavailable

2

. LABEL, CAUTION

5S6-F8446-00-00

Unavailable

3

. COVER LOCK ASSY 2

5S6-F8493-00-00

Unavailable

4

. PLATE, LOCK 1

2C5-F848T-00-00

Unavailable

5

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$6.58

6

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

7

NUT, CROWN

90176-05001-00

$5.24

8

GROMMET

90480-20004-00

$2.70

9

COLLAR

90387-08077-00

$6.08

10

WASHER (23T)

90201-065G8-00

$5.75

11

BOLT, BUTTON HEAD

92012-06025-00

$2.69

12

SADDBAG COMP. 2

26S-F8440-00-00

Unavailable

13

. LABEL, CAUTION

5S6-F8446-00-00

Unavailable

14

. COVER LOCK ASSY 2

5S6-F849K-00-00

Unavailable

15

. PLATE, LOCK 1

2C5-F848T-00-00

Unavailable

16

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$6.58

17

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

18

NUT, CROWN

90176-05001-00

$5.24

19

GROMMET

90480-20004-00

$2.70

20

COLLAR

90387-08077-00

$6.08

21

WASHER (23T)

90201-065G8-00

$5.75

22

BOLT, BUTTON HEAD

92012-06025-00

$2.69

23

FRAME, SADDLEBAG 1

26S-28473-00-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-08046-00

Unavailable

25

PLATE

5S6-28417-00-00

Unavailable

26

FRAME, SADDLEBAG 2

26S-28474-00-00

Unavailable

27

BOLT,HEX. SOCKET BUTTON

90111-08046-00

Unavailable

28

PLATE

5S6-28417-00-00

Unavailable

29

LOCK ASSY.1

5S6-28408-00-00

Unavailable

30

SEAL 1

5S6-28428-00-00

Unavailable
