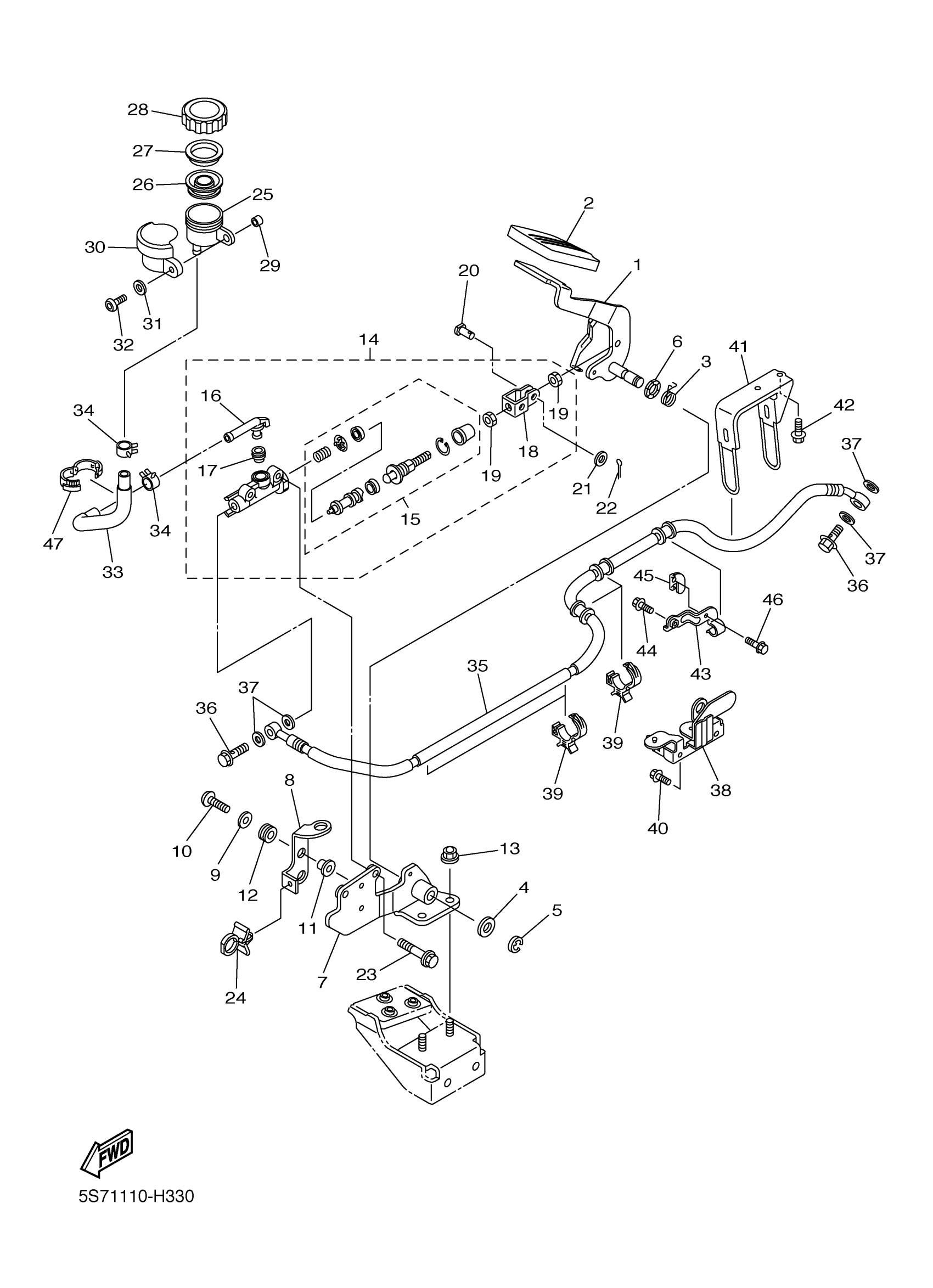

Yamaha XVS95CTHR (V STAR 950 TOURER) 26SS 2017 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

5S7-27211-00-00

Unavailable

2

CAP

1D7-27285-00-00

$29.99

3

SPRING, RETURN

5S7-27216-00-00

$7.99

4

WASHER, PLATE (5K7)

90201-124E4-00

$9.49

5

CIRCLIP(10Y)

99009-12400-00

$3.59

6

WASHER, WAVE (17W)

90206-12074-00

$9.49

7

BRACKET 1

5S7-27432-00-00

Unavailable

8

BRACKET, STOP SWITCH

5S7-21441-00-00

Unavailable

9

WASHER, PLATE 8221447500

90201-06057-00

$5.60

10

BOLT, BUTTON

92017-06020-00

$3.76

11

COLLAR

90387-06237-00

$4.67

12

GROMMET (1E5)

90480-13163-00

$7.49

13

NUT, CROWN

90176-08009-00

$5.60

14

RR. MASTER CYLINDER ASSY.

4BP-2583V-01-00

$268.99

15

CYLINDER KIT, MASTER

3TU-W0042-51-00

Unavailable

16

JOINT

4BP-2582A-00-00

Unavailable

17

O-RING

4BP-2585F-01-00

Unavailable

18

JOINT

4BP-27222-02-00

Unavailable

19

NUT

90170-08010-00

Unavailable

20

PIN, CLEVIS(2YK)

90240-08124-00

Unavailable

21

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

22

PIN, COTTER (648)

91490-20015-00

Unavailable

23

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

24

CLAMP

90464-12001-00

Unavailable

25

TANK, RESERVOIR

31A-25894-10-00

Unavailable

26

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

27

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

28

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

29

COLLAR

90387-06072-00

Unavailable

30

COVER, RESERVOIR TANK

4NK-25888-00-00

Unavailable

31

WASHER, PLATE(52G)

90201-064J1-00

Unavailable

32

BOLT, BUTTON HEAD

92014-06020-00

Unavailable

33

HOSE, RESERVOIR

5S7-25895-00-00

Unavailable

34

CLIP (5K4)

90467-14057-00

Unavailable

35

HOSE, BRAKE 4

5S7-2581J-00-00

Unavailable

36

BOLT, UNION

90401-10020-00

Unavailable

37

GASKET

90430-10005-00

Unavailable

38

HOLDER, FUEL PIPE

5S7-21374-00-00

Unavailable

39

CLAMP(4HM)

90464-15192-00

Unavailable

40

BOLT, FLANGE

95022-06010-00

Unavailable

41

HOLDER, BRAKE HOSE

5S7-2587A-00-00

Unavailable

42

BOLT, FLANGE

95022-06016-00

Unavailable

43

HOLDER, BRAKE HOSE 5

5S7-2588F-00-00

Unavailable

44

BOLT, FLANGE

95022-06010-00

Unavailable

45

HOLDER, BRAKE HOSE

3D8-25887-00-00

Unavailable

46

BOLT, FLANGE

95022-06010-00

Unavailable

47

CLAMP

90464-16001-00

Unavailable
