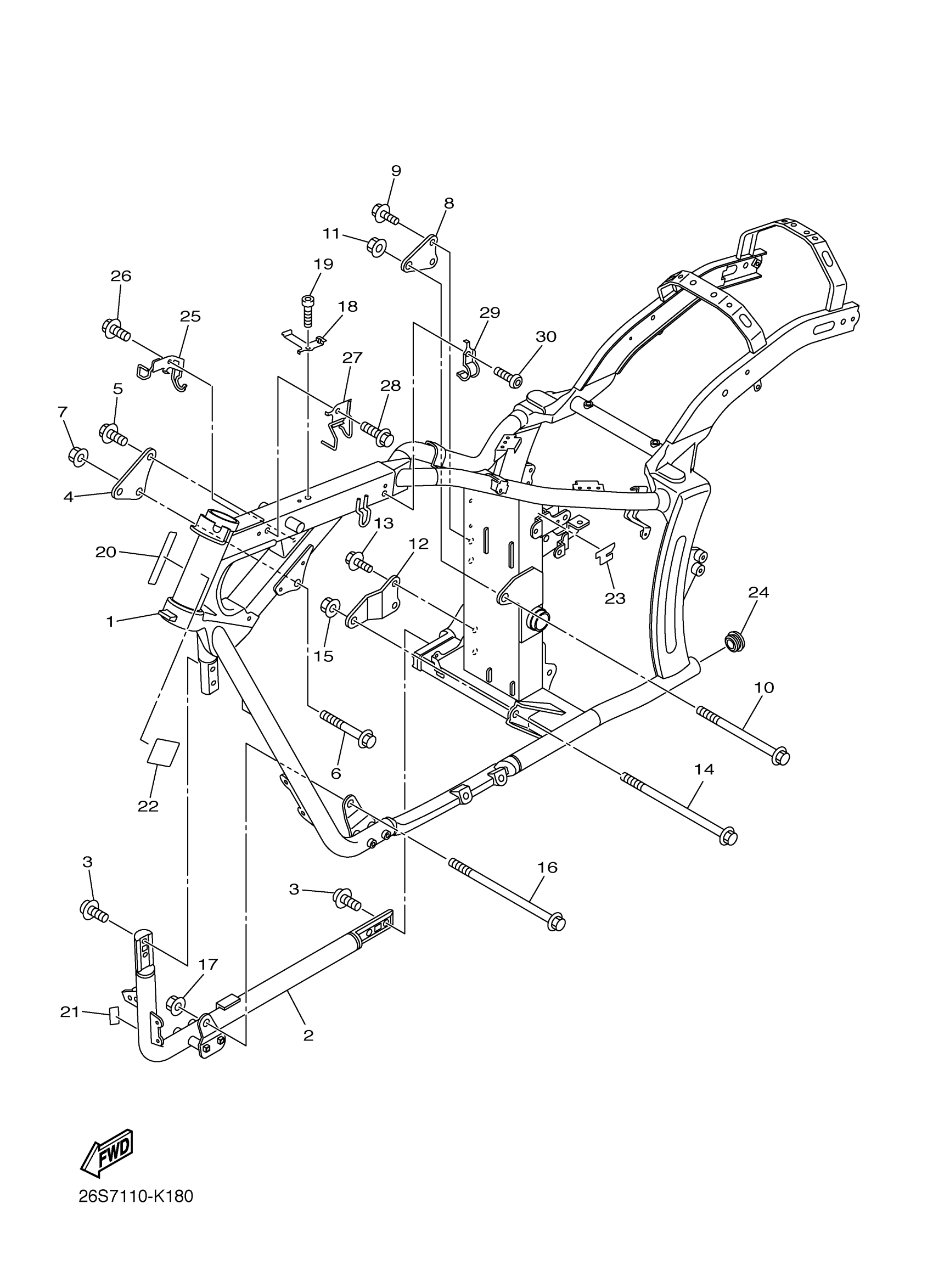

Yamaha XVS95CTHR (V STAR 950 TOURER) 26SS 2017 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5S7-21110-10-00

Unavailable

2

DOWNTUBE COMP.

5S7-21280-10-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-10017-00

$5.60

4

STAY, ENGINE 3

5S7-21317-00-00

$27.99

5

BOLT, WASHER BASED

90105-102A3-00

$10.49

6

BOLT, WASHER BASED (26H)

90105-12252-00

$11.49

7

NUT, SELF-LOCKING

90185-12002-00

$12.49

8

STAY, ENGINE 5

5S7-21314-00-00

Unavailable

9

BOLT, WASHER BASED

90105-102A3-00

$10.49

10

BOLT, FLANGE

90105-12043-00

Unavailable

11

NUT, SELF-LOCKING

90185-12002-00

$12.49

12

STAY, ENGINE 3

5S7-21316-00-00

Unavailable

13

BOLT, WASHER BASED

90105-102A3-00

$10.49

14

BOLT, FLANGE

90105-12044-00

$21.99

15

NUT, SELF-LOCKING

90185-12002-00

$12.49

16

BOLT, FLANGE

90105-12069-00

Unavailable

17

NUT, SELF-LOCKING

90185-12002-00

$12.49

18

BRACKET

5S7-21158-00-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

20

PROTECTOR

3D8-2117G-00-00

Unavailable

21

SEAL

5PX-21268-00-00

Unavailable

22

SEAL

1D7-2639G-00-00

Unavailable

23

SEAL 1

5S7-21732-00-00

Unavailable

24

PLUG

90338-27007-00

Unavailable

25

GUIDE, CABLE

5S7-26279-00-00

Unavailable

26

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

27

HOLDER

5S7-26475-00-00

Unavailable

28

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

29

CLAMP

90462-16005-00

Unavailable

30

BOLT, BUTTON HEAD

92012-06016-00

Unavailable
