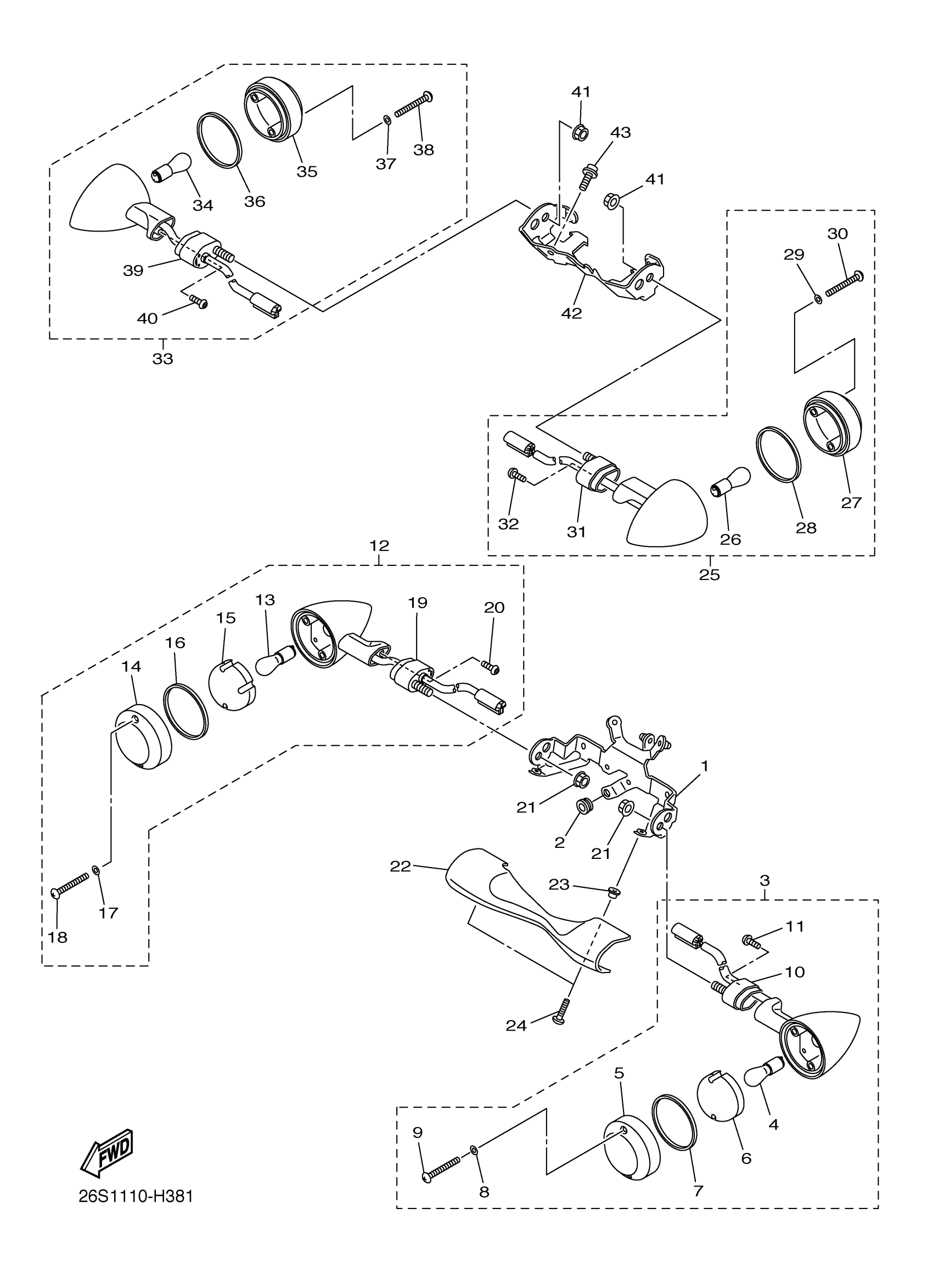

Yamaha XVS95CTFW (V STA 950 TOURER) 26SK0 2015 FLASHER LIGHT Diagram

#

Description
Price

1

STAY, HEADLIGHT

5S7-23174-00-00

$125.99

2

GROMMET

90480-13014-00

$8.49

3

FRONT FLASHER LIGHT ASSY 1

3D8-83310-00-00

$106.99

4

BULB

1A2-84714-50-00

$14.49

5

LENS, FLASHER

3D8-83312-00-00

$13.49

6

LENS, INNER 1

3D8-8333L-00-00

Unavailable

7

GASKET, FLASHER LENS

3D8-83313-00-00

Unavailable

8

WASHER

3D8-83348-00-00

$4.52

9

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

10

STAY, FLASHER 2

3D8-83369-00-00

$37.99

11

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

12

FRONT FLASHER LIGHT ASSY 2

3D8-83320-00-00

$109.99

13

BULB

1A2-84714-50-00

$14.49

14

LENS, FLASHER

3D8-83312-00-00

$13.49

15

LENS, INNER 1

3D8-8333L-00-00

Unavailable

16

GASKET, FLASHER LENS

3D8-83313-00-00

Unavailable

17

WASHER

3D8-83348-00-00

$4.52

18

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

19

STAY, FLASHER 2

3D8-83369-00-00

$37.99

20

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

21

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

22

COVER, OUTER 1

3D8-23122-10-00

Unavailable

23

COLLAR

90387-06255-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-05037-00

Unavailable

25

REAR FLASHER LIGHT ASSY 1

3D8-83330-00-00

Unavailable

26

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

27

LENS, FLASHER

3D8-83312-00-00

$13.49

28

GASKET, FLASHER LENS

3D8-83313-00-00

Unavailable

29

WASHER

3D8-83348-00-00

$4.52

30

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

31

STAY, FLASHER 2

3D8-83369-00-00

$37.99

32

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

33

REAR FLASHER LIGHT ASSY 2

3D8-83340-00-00

Unavailable

34

BULB FLASHER (12V21W)

3D8-83311-00-00

Unavailable

35

LENS, FLASHER

3D8-83312-00-00

$13.49

36

GASKET, FLASHER LENS

3D8-83313-00-00

Unavailable

37

WASHER

3D8-83348-00-00

$4.52

38

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

39

STAY, FLASHER 2

3D8-83369-00-00

$37.99

40

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

41

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

42

STAY, FLASHER 1

5S7-83368-10-00

Unavailable

43

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

Unavailable
