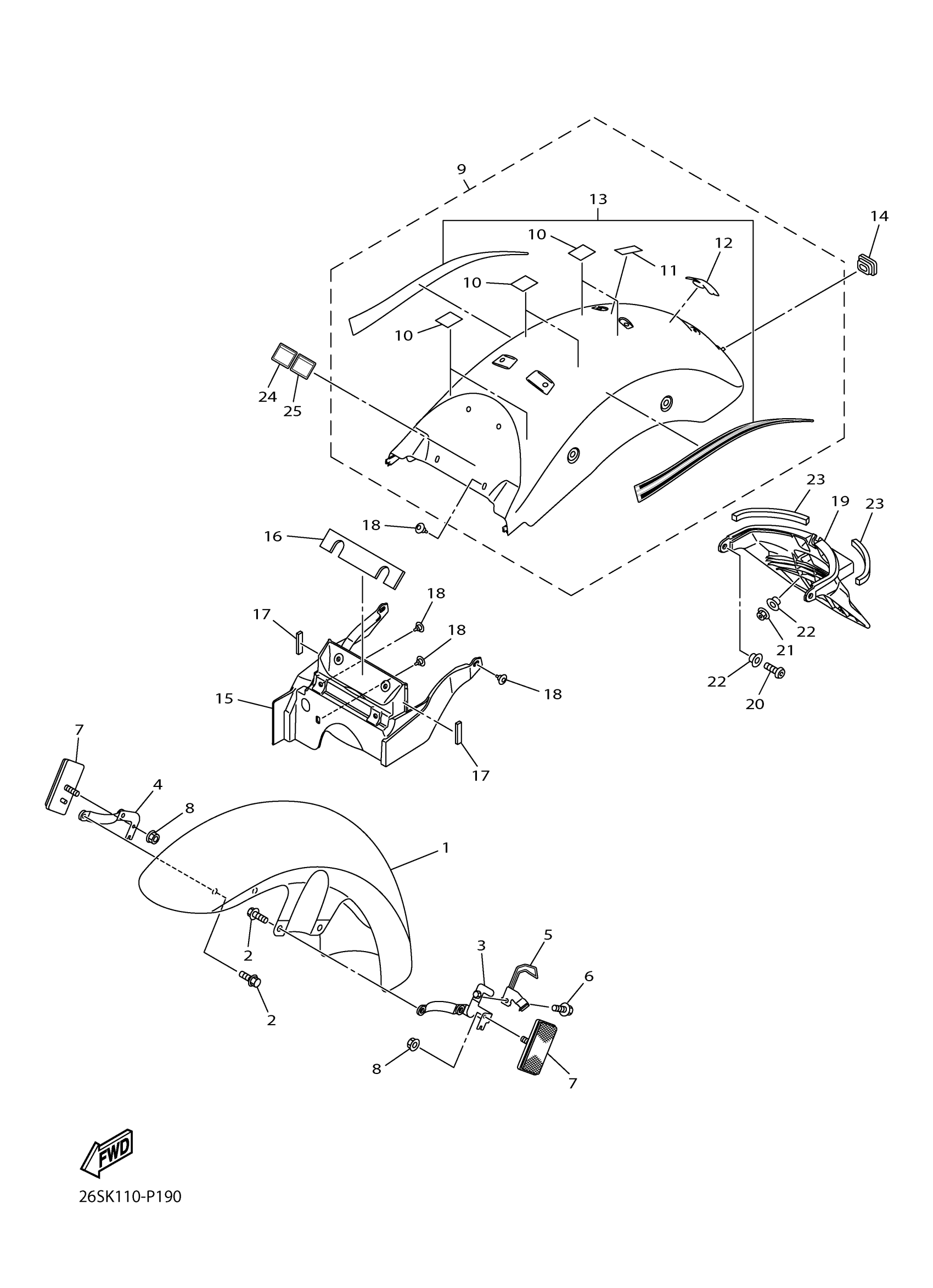

Yamaha XVS95CTFW (V STA 950 TOURER) 26SK0 2015 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5S7-21510-01-P9

Unavailable

2

BOLT, FLANGE

95812-08020-00

$2.80

3

STAY 1

5S7-21587-00-00

Unavailable

4

STAY 2

5S7-21588-00-00

Unavailable

5

HOLDER,WIRE 1

3D8-21597-00-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

7

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

8

NUT, FLANGE(3GM)

95707-05500-00

$8.49

9

REAR FENDER COMP.

5S7-W2161-21-P9

$628.99

10

SEAL

5PX-21669-01-00

$11.99

11

SEAL

5S7-21669-00-00

Unavailable

12

EMBLEM 1

5S7-2163G-00-00

$2.76

13

GRAPHIC SET,REAR F

5S7-2165A-D0-00

$164.99

14

GROMMET

90480-13027-00

$3.28

15

GUARD, MUD

5S7-21629-00-P9

Unavailable

16

DAMPER 1

5S7-21638-00-00

Unavailable

17

DAMPER 2

5S7-21639-00-00

Unavailable

18

RIVET(4PH)

90269-07077-00

Unavailable

19

FENDER 2

5S7-2162R-01-00

Unavailable

20

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

21

NUT, U FLANGE

95604-06200-00

Unavailable

22

COLLAR (3L1)

90387-07717-00

Unavailable

23

SEAL

4DN-21669-00-00

Unavailable

24

PLATE, ROUTING 2

5RU-21686-00-00

Unavailable

25

PLATE, ROUTING

34B-21684-00-00

Unavailable
