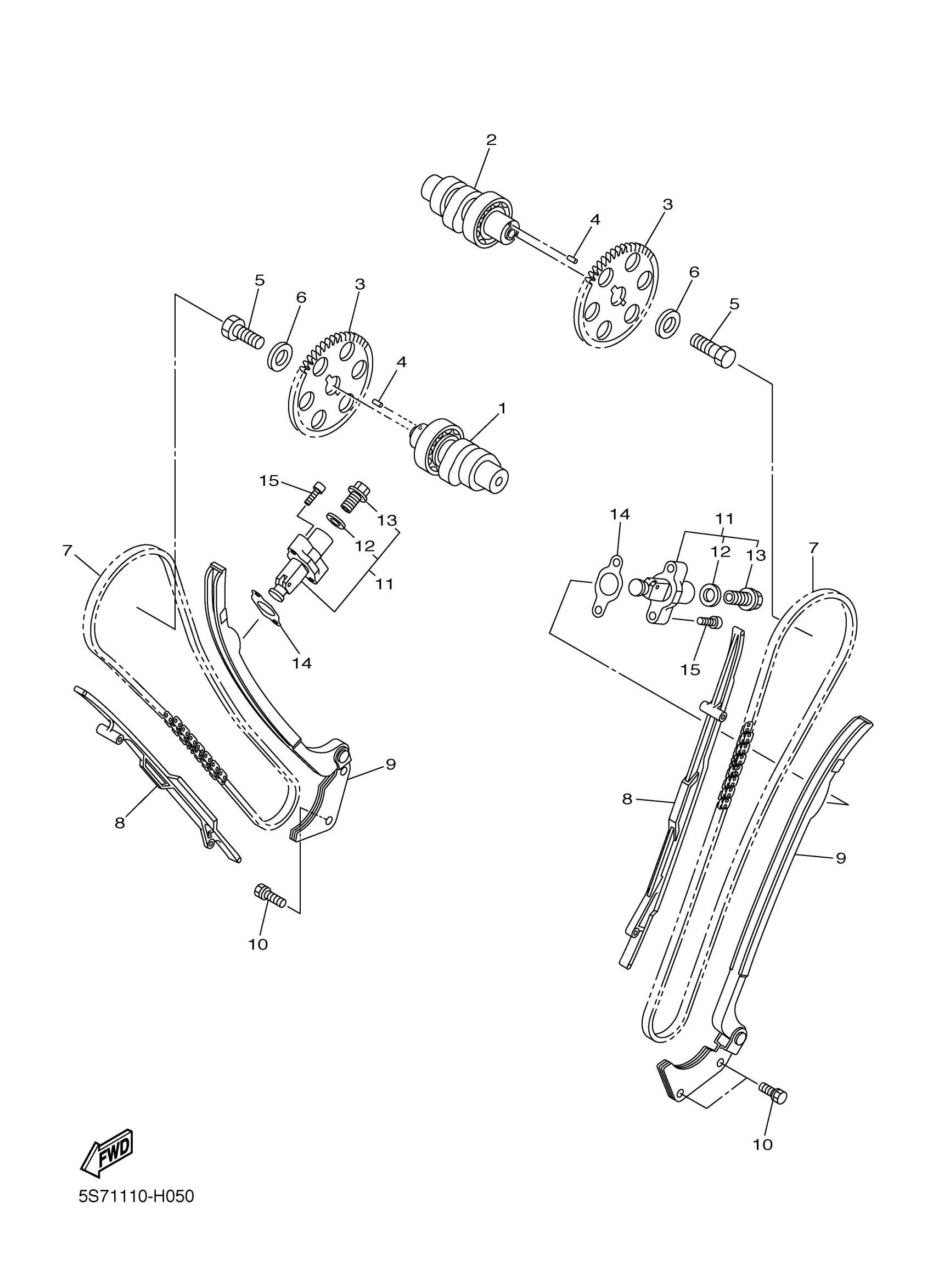

Yamaha XVS95CTFW (V STA 950 TOURER) 26SK0 2015 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5S7-12170-10-00

Unavailable

2

CAMSHAFT ASSY 2

5S7-12180-10-00

Unavailable

3

SPROCKET, CAM CHAIN

5S7-12176-00-00

Unavailable

4

PIN,DOWEL (168)

93604-12037-00

$8.49

5

BOLT

90101-10016-00

$4.14

6

WASHER, PLATE (3L6)

90201-10774-00

$9.49

7

CHAIN

94591-59132-00

$34.99

8

GUIDE, STOPPER 1

5S7-12231-00-00

Unavailable

9

GUIDE, STOPPER 2

3D8-12241-01-00

$81.99

10

BOLT, WITH WASHER

90119-06173-00

Unavailable

11

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$173.99

12

GASKET, TENSIONER

31G-12214-00-00

$14.49

13

PLUG

31G-12222-00-00

$24.99

14

GASKET, TENSIONER CASE

3GD-12213-00-00

$6.99

15

BOLT,SOCKET HEAD

91314-06025-00

$8.49
