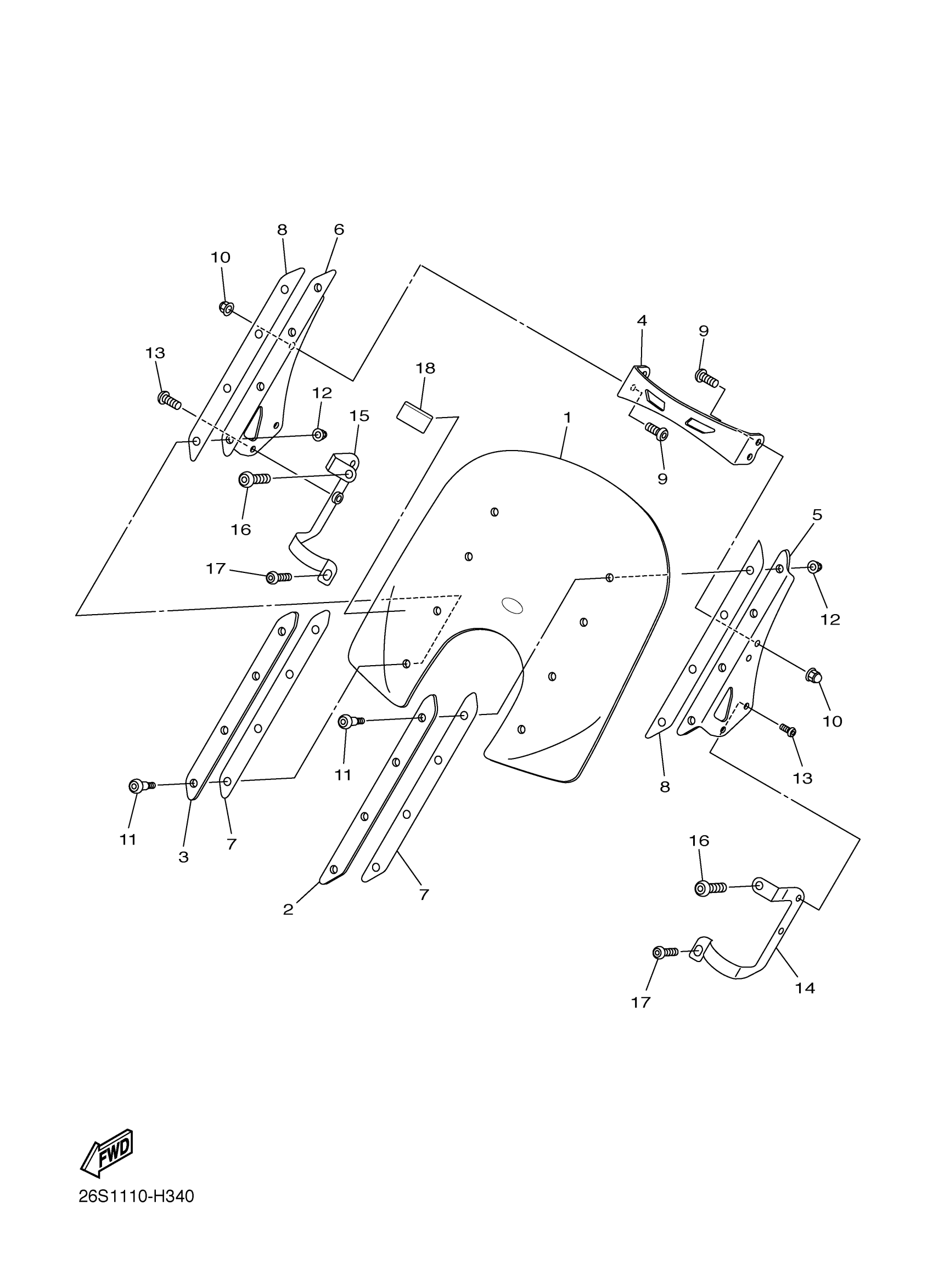

Yamaha XVS95CTECB (V STAR 950 TOURER CA) 26SH 2014 COWLING Diagram

#

Description
Price

1

SCREEN

5S6-2837U-20-00

Unavailable

2

PLATE 1

5S6-28396-00-00

Unavailable

3

PLATE 2

5S6-28397-00-00

Unavailable

4

PLATE, FRONT

5S6-28361-00-00

Unavailable

5

BRACKET 1

5S6-2836A-00-00

Unavailable

6

BRACKET 2

5S6-2836E-00-00

Unavailable

7

DAMPER 5

5S6-2837J-00-00

$8.71

8

DAMPER 6

5S6-2837K-00-00

$8.67

9

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$2.47

10

NUT, CROWN (21G)

90176-06041-00

$2.56

11

BOLT

1D6-28333-09-00

$3.65

12

NUT, CROWN(47X)

90176-05051-00

$2.38

13

BOLT, BUTTON

92014-08016-00

$6.22

14

STAY 1

26S-28356-00-00

$328.00

15

STAY 2

26S-28357-00-00

$254.29

16

BOLT

90111-10006-00

Unavailable

17

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

18

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
