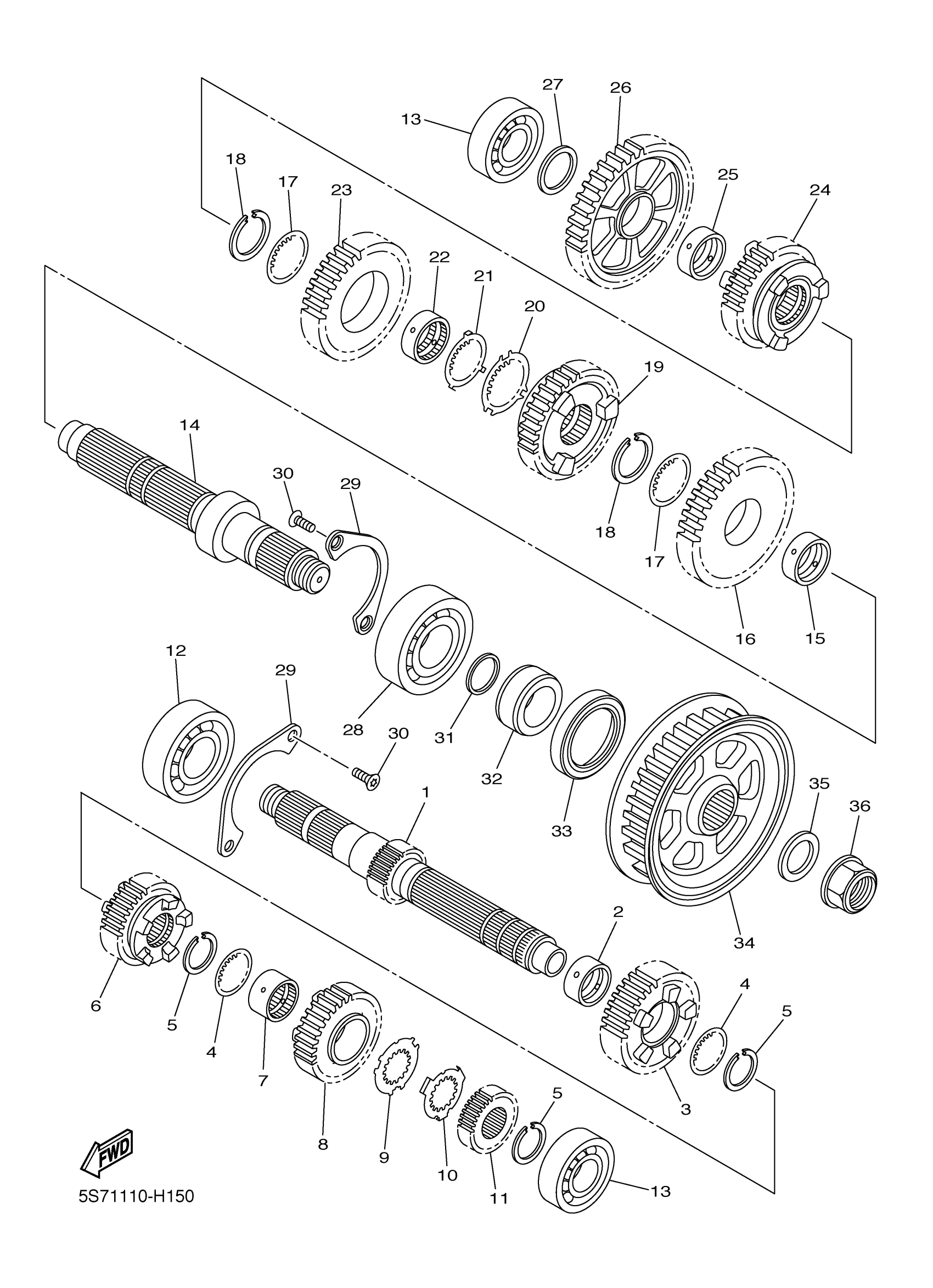

Yamaha XVS95CTDR (V STAR 950 TOURER) 26SD0 2013 TRANSMISSION Diagram
#
1
AXLE, MAIN
5S7-17411-10-00
Unavailable
3
GEAR, 5TH PINION
5S7-17151-00-00
Unavailable
6
GEAR, 3RD PINION
5S7-17131-10-00
Unavailable
7
COLLAR
90387-25025-00
Unavailable
8
GEAR, 4TH PINION
5S7-17141-10-00
Unavailable
11
GEAR, 2ND PINION
5S7-17121-00-00
Unavailable
14
AXLE, DRIVE
5S7-17421-00-00
Unavailable
16
GEAR, 2ND WHEEL
5S7-17221-00-00
Unavailable
17
WASHER
90209-28008-00
Unavailable
18
CIRCLIP
93440-31187-00
Unavailable
19
GEAR, 4TH WHEEL
5S7-17241-10-00
Unavailable
20
WASHER, CLAW
90214-29002-00
Unavailable
21
WASHER, CLAW
90214-28002-00
Unavailable
22
COLLAR
90387-28004-00
Unavailable
23
GEAR, 3RD WHEEL
5S7-17231-00-00
Unavailable
24
GEAR, 5TH WHEEL
5S7-17251-00-00
Unavailable
25
COLLAR
90387-25008-00
Unavailable
26
GEAR, 1ST WHEEL
5S7-17211-00-00
Unavailable
27
WASHER, PLATE(83R)
90201-224L4-00
Unavailable
28
BRG. R-B 6306 72MM 352.5GK
93306-30610-00
Unavailable
29
PLATE, BEARING COVER
3D8-15381-00-00
Unavailable
30
SCREW, COUNTERSUNK
90151-06023-00
Unavailable
31
O-RING(50M)
93210-27672-00
Unavailable
32
COLLAR
90387-30010-00
Unavailable
33
OIL SEAL
93102-45012-00
Unavailable
34
PULLEY, BELT
5S7-17651-00-00
Unavailable
35
WASHER, CONICAL SPRING
90208-22004-00
Unavailable
36
NUT
90179-22029-00
Unavailable
