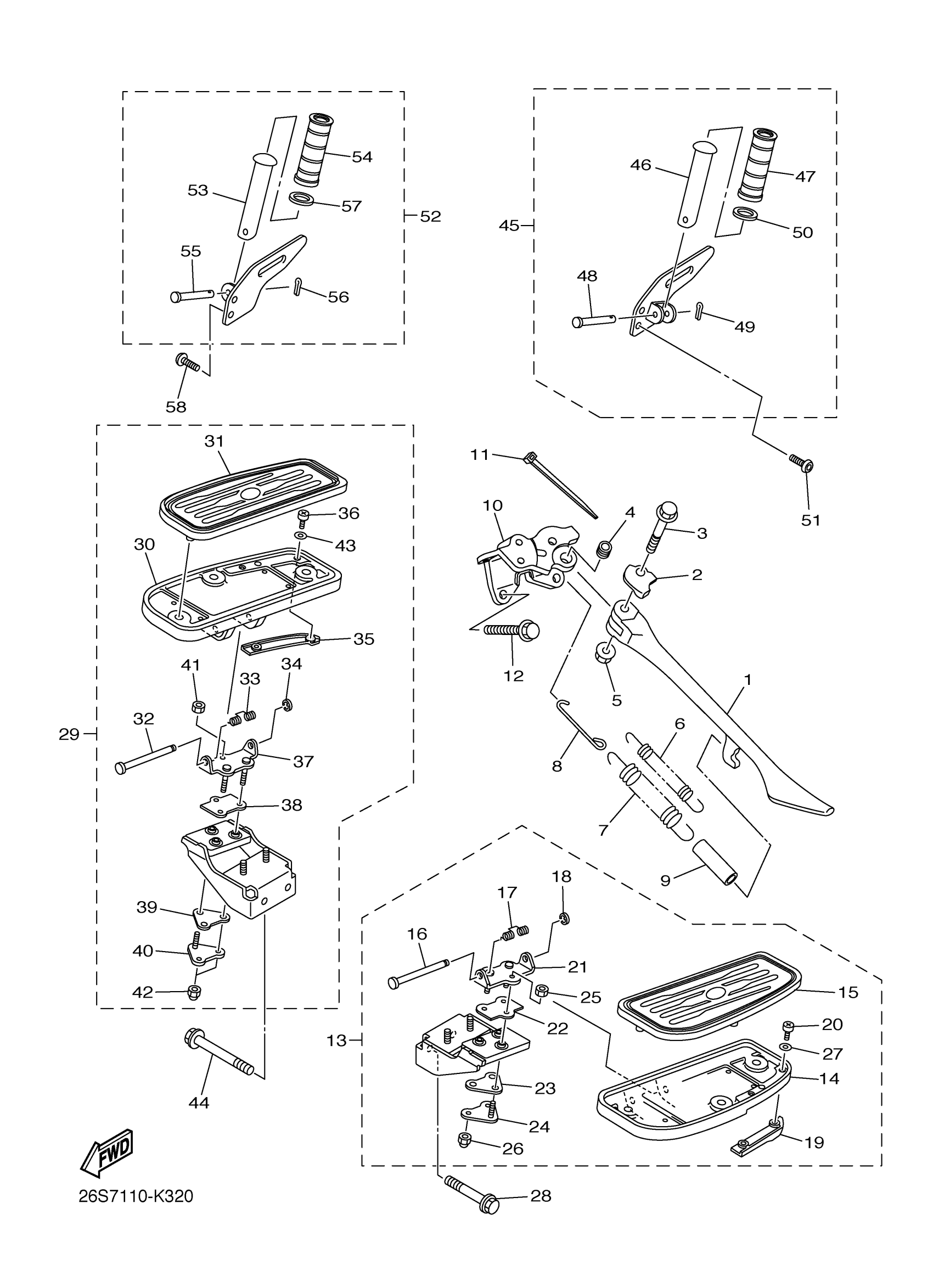

Yamaha XVS95CTDR (V STAR 950 TOURER) 26SD0 2013 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5S7-27311-00-00

Unavailable

2

WASHER

5S7-27322-00-00

Unavailable

3

BOLT, FLANGE

90105-10315-00

$9.49

4

COLLAR(3XP)

90387-1003G-00

$21.99

5

NUT, SELF-LOCKING

90185-10008-00

$7.49

6

SPRING, TENSION(4KU)

90506-23490-00

$11.49

7

SPRING, TENSION

90506-29507-00

$13.99

8

LINK, SIDE STAND

3D8-27315-00-00

$7.99

9

HOSE (L60)

90445-16641-00

$7.49

10

BRACKET, SIDE STAND

3D8-27321-00-00

Unavailable

11

BAND

1UA-82591-00-00

$4.78

12

BOLT, FLANGE

90105-10158-00

$9.49

13

FRONT FOOTREST ASSY (LEFT)

5S7-27410-00-00

Unavailable

14

FOOTREST

4NK-27451-10-00

Unavailable

15

COVER, FOOTREST

5S7-27413-00-00

Unavailable

16

SHAFT

1D7-27427-00-00

Unavailable

17

SPRING, RETURN

1D7-27426-00-00

Unavailable

18

CIRCLIP(53L)

99001-06600-00

Unavailable

19

MOLE 1

4WM-27496-00-00

Unavailable

20

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

21

BRACKET 1

5S7-2787A-00-00

Unavailable

22

DAMPER, FOOTREST

5S7-27414-00-00

Unavailable

23

DAMPER, FOOTREST 2

5S7-27424-00-00

Unavailable

24

PLATE, SOTPPER

5S7-27123-00-00

Unavailable

25

NUT(6TA)

95317-06600-00

Unavailable

26

NUT, CROWN (21G)

90176-06041-00

Unavailable

27

. WASHER, PLAIN

92990-05200-00

Unavailable

28

B0LT,FLANGE (1KT)

90105-10323-00

Unavailable

29

FRONT FOOTREST ASSY (RIGHT)

5S7-27420-00-00

Unavailable

30

FOOTREST

4NK-27461-10-00

Unavailable

31

COVER, FOOTREST

5S7-27423-00-00

Unavailable

32

SHAFT

1D7-27427-00-00

Unavailable

33

SPRING, RETURN

1D7-27426-00-00

Unavailable

34

CIRCLIP(53L)

99001-06600-00

Unavailable

35

MOLE 2

4WM-27497-00-00

Unavailable

36

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

37

BRACKET 1

5S7-2787A-00-00

Unavailable

38

DAMPER, FOOTREST

5S7-27414-00-00

Unavailable

39

DAMPER, FOOTREST 2

5S7-27424-00-00

Unavailable

40

PLATE, SOTPPER

5S7-27123-00-00

Unavailable

41

NUT(6TA)

95317-06600-00

Unavailable

42

NUT, CROWN (21G)

90176-06041-00

Unavailable

43

. WASHER, PLAIN

92990-05200-00

Unavailable

44

BOLT, WASHER BASED(1RU)

90105-10747-00

Unavailable

45

REAR FOOTREST ASSY 1

5S7-27430-10-00

Unavailable

46

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

47

COVER, REAR FOOTREST

5S7-27433-00-00

Unavailable

48

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

49

PIN, COTTER (648)

91490-20015-00

Unavailable

50

WASHER, PLATE (888)

90201-20279-00

Unavailable

51

BOLT,HEX. SOCKET BUTTON

90111-08045-00

Unavailable

52

REAR FOOTREST ASSY 2

5S7-27440-10-00

Unavailable

53

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

54

COVER, REAR FOOTREST

5S7-27433-00-00

Unavailable

55

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

56

PIN, COTTER (648)

91490-20015-00

Unavailable

57

WASHER, PLATE (888)

90201-20279-00

Unavailable

58

BOLT,HEX. SOCKET BUTTON

90111-08045-00

Unavailable
