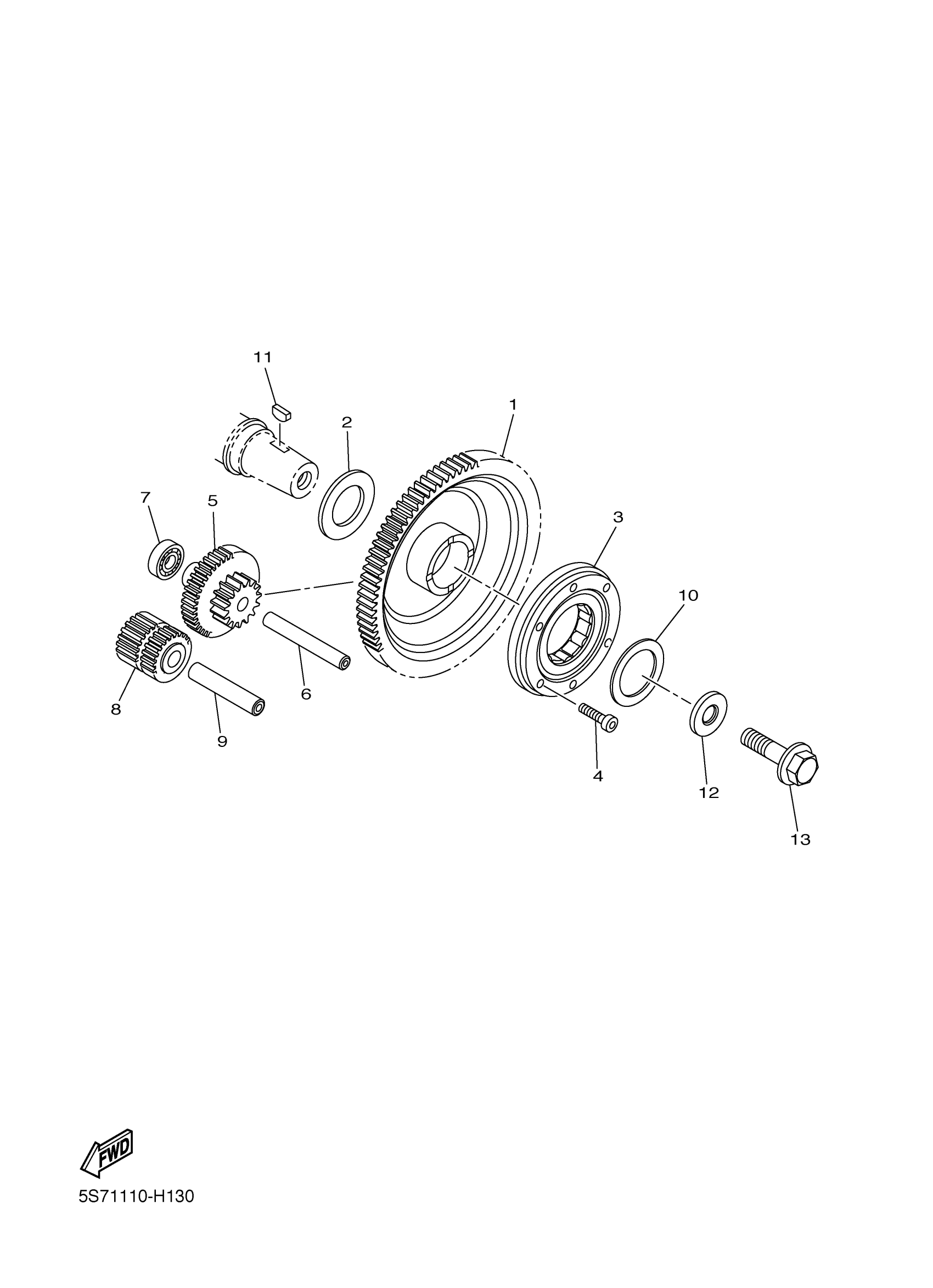

Yamaha XVS95CTAR (V STAR 950 TOURER) 26S70 2011 STARTER Diagram

#

Description
Price

1

GEAR 3

5S7-15515-00-00

Unavailable

2

WASHER

5S7-15561-00-00

Unavailable

3

STARTER ONE-WAY ASSY

3LD-15590-02-00

Unavailable

4

BOLT,SOCKET

91317-06025-00

$1.91

5

GEAR, IDLER 1

5S7-15512-01-00

$128.52

6

SHAFT 1

1D7-15521-00-00

Unavailable

7

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$30.52

8

GEAR, IDLER 1

3D8-15512-01-00

$67.94

9

SHAFT 2

4WM-15522-00-00

Unavailable

10

WASHER, PLATE (11H)

90201-350F3-00

$9.12

11

KEY, WOODRUFF

90280-05001-00

$11.00

12

WASHER, PLATE

90201-12008-00

$10.41

13

BOLT, WASHER BASED(3LD)

90105-12584-00

Unavailable
