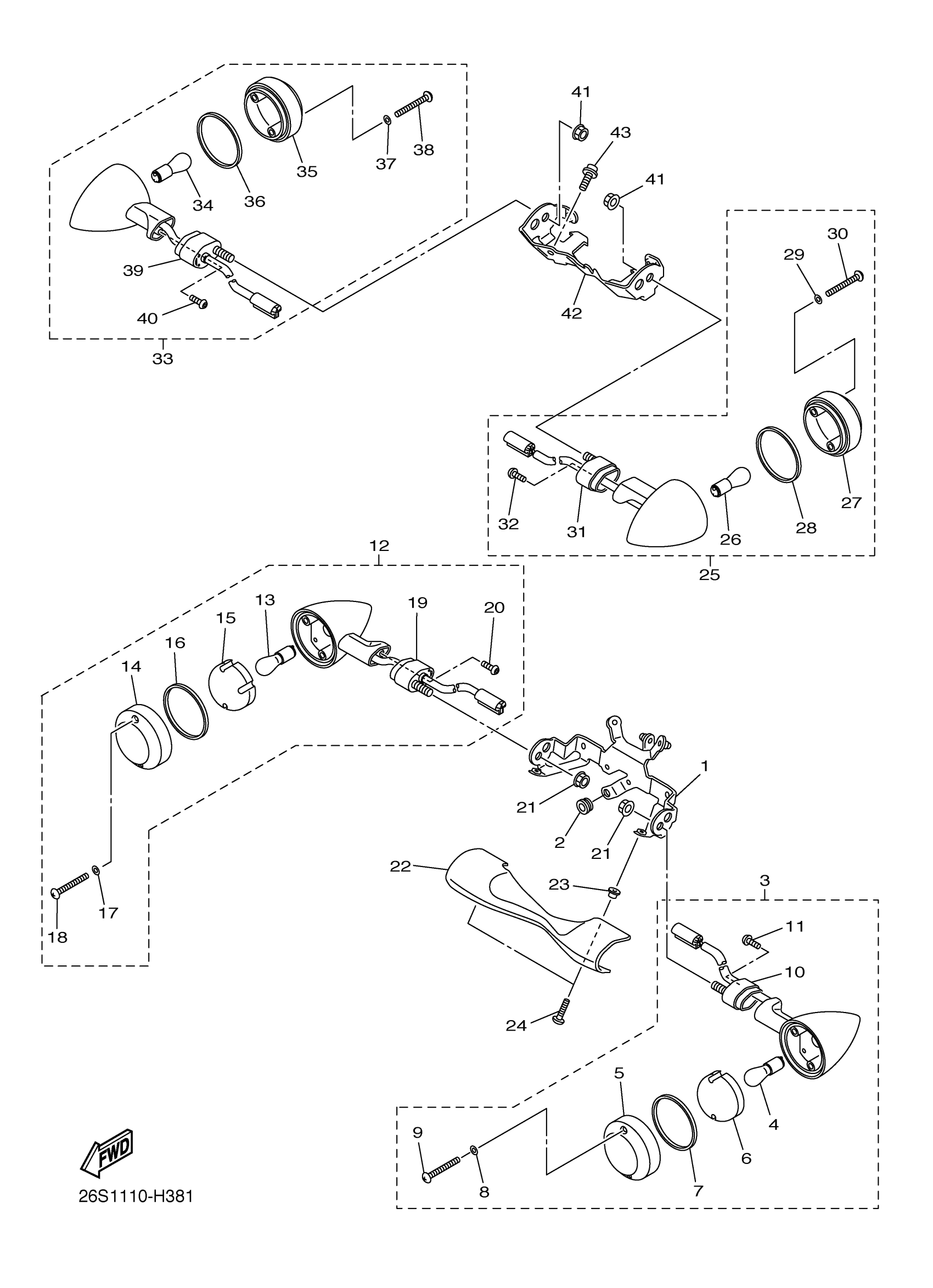

Yamaha XVS95CTAR (V STAR 950 TOURER) 26S70 2011 FLASHER LIGHT Diagram
#
Description
Price
6
LENS, INNER 1
3D8-8333L-00-00
Unavailable
15
LENS, INNER 1
3D8-8333L-00-00
Unavailable
21
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
22
COVER, OUTER 1
3D8-23122-10-00
Unavailable
23
COLLAR
90387-06255-00
Unavailable
24
BOLT,HEX. SOCKET BUTTON
90111-05037-00
Unavailable
25
REAR FLASHER LIGHT ASSY 1
3D8-83330-00-00
Unavailable
26
BULB FLASHER (12V21W)
3D8-83311-00-00
Unavailable
33
REAR FLASHER LIGHT ASSY 2
3D8-83340-00-00
Unavailable
34
BULB FLASHER (12V21W)
3D8-83311-00-00
Unavailable
41
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
42
STAY, FLASHER 1
5S7-83368-10-00
Unavailable
43
BOLT, HEXAGON SOCKET HEAD
90110-06219-00
Unavailable
