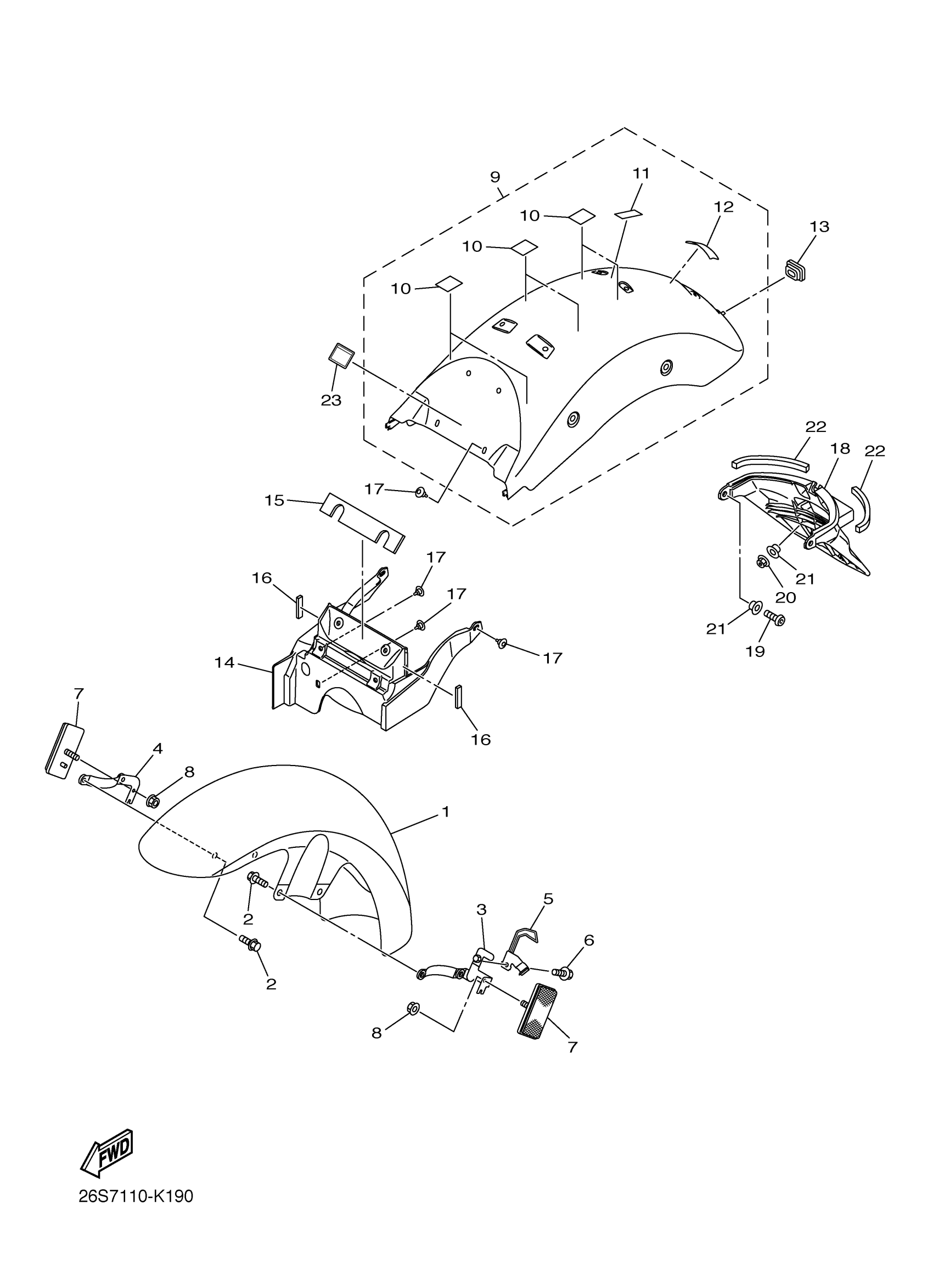

Yamaha XVS95CTAR (V STAR 950 TOURER) 26S70 2011 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5S7-21510-01-P0

Unavailable

2

BOLT, FLANGE

95812-08020-00

$2.80

3

STAY 1

5S7-21587-00-00

Unavailable

4

STAY 2

5S7-21588-00-00

Unavailable

5

HOLDER,WIRE 1

3D8-21597-00-00

Unavailable

6

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

7

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

8

NUT, FLANGE(3GM)

95707-05500-00

$8.49

9

REAR FENDER COMP.

5S7-W2161-01-P0

Unavailable

10

SEAL

5PX-21669-01-00

$11.99

11

SEAL

5S7-21669-00-00

Unavailable

12

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

13

GROMMET

90480-13027-00

$3.28

14

GUARD, MUD

5S7-21629-00-P0

Unavailable

15

DAMPER 1

5S7-21638-00-00

$1.25

16

DAMPER 2

5S7-21639-00-00

Unavailable

17

RIVET(4PH)

90269-07077-00

Unavailable

18

FENDER 2

5S7-2162R-01-00

Unavailable

19

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

20

NUT, U FLANGE

95604-06200-00

Unavailable

21

COLLAR (3L1)

90387-07717-00

Unavailable

22

SEAL

4DN-21669-00-00

Unavailable
