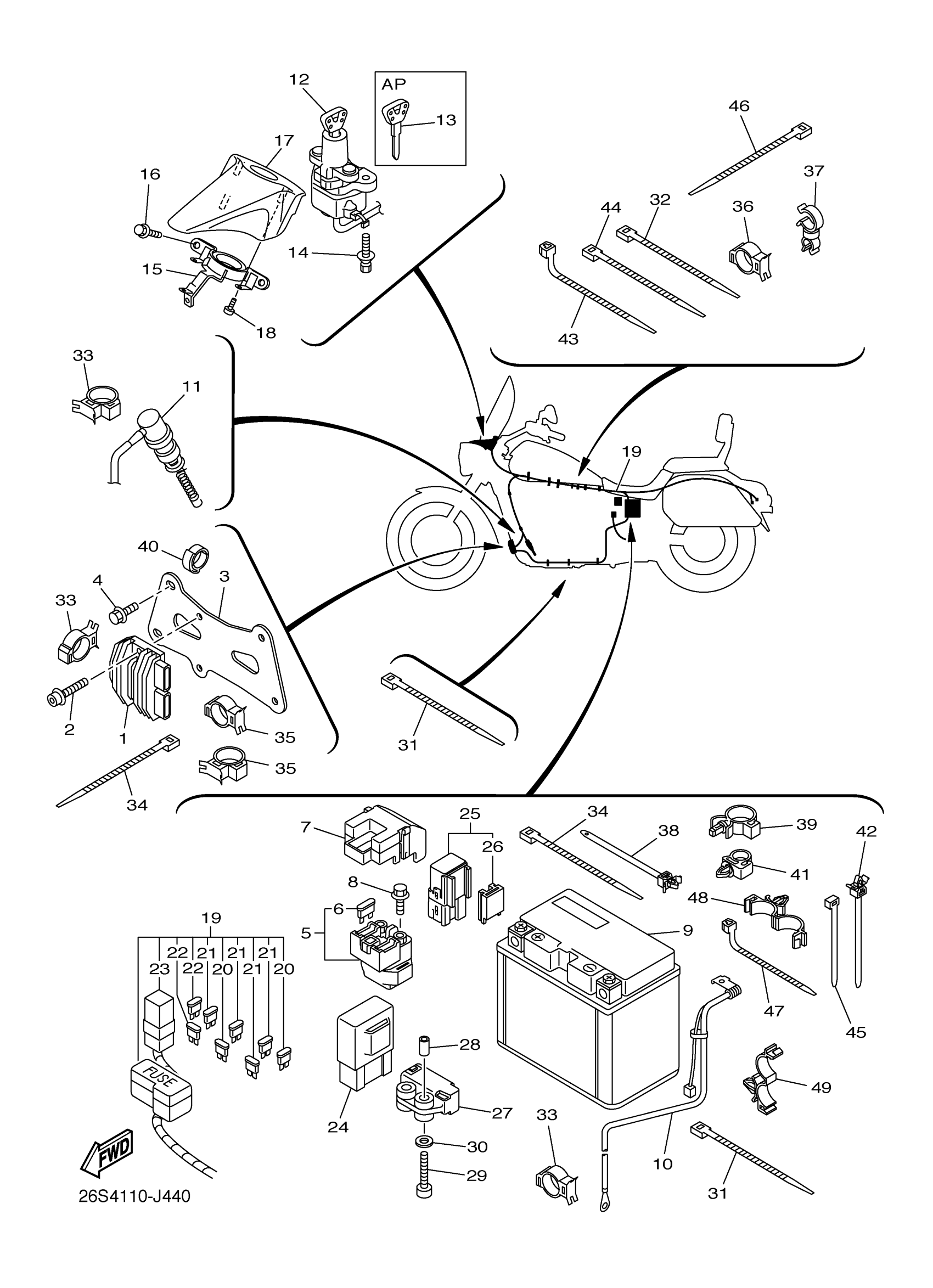

Yamaha XVS95CTAR (V STAR 950 TOURER) 26S70 2011 ELECTRICAL 2 Diagram
#
1
RECTIFIER & REGULATOR ASSY
27D-81960-00-00
Unavailable
2
BOLT, HEXAGON SOCKET HEAD
90110-06263-00
Unavailable
3
BRACKET, REGULATOR
5S7-2128A-00-00
Unavailable
9
BATTERY YTZ14S
YTZ-14S00-00-00
Unavailable
10
WIRE, MINUS LEAD
5S7-82116-00-00
Unavailable
11
STOP SWITCH ASSY
5S7-82530-00-00
Unavailable
15
BRACKET 1
5S7-2334G-00-00
Unavailable
16
BOLT, FLANGE
90105-06090-00
Unavailable
17
COVER, MAIN SWITCH
5S7-82568-00-00
Unavailable
18
SCREW, TRUSS TAP.
97707-40016-00
Unavailable
19
WIRE HARNESS ASSY
5S7-82590-00-00
Unavailable
20
FUSE (15A)
67F-82151-50-00
Unavailable
21
. FUSE (10A)
67F-82151-40-00
Unavailable
22
FUSE
5JJ-82151-20-00
Unavailable
23
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
24
RELAY ASSY
5VK-81950-33-00
Unavailable
25
RELAY ASSY (5EA-02)
5EA-81950-20-00
Unavailable
26
HOLDER,RELAY
5EA-81952-00-00
Unavailable
27
SENSOR, LEAN ANGLE
5VU-82576-03-00
Unavailable
28
HOSE (L200)
90445-05N13-00
Unavailable
29
BOLT
91312-04025-00
Unavailable
30
WASHER, PLATE
90201-04027-00
Unavailable
31
BAND
1UA-82591-00-00
Unavailable
32
BAND
1UA-82591-00-00
Unavailable
33
CLAMP(4GY)
90464-10190-00
Unavailable
34
BAND
3MA-82591-00-00
Unavailable
35
CLAMP(4GY)
90464-20191-00
Unavailable
36
CLAMP(4KM)
90464-25217-00
Unavailable
37
CLAMP
90464-20004-00
Unavailable
38
CLAMP(2TV)
90464-10112-00
Unavailable
39
CLAMP
90464-16012-00
Unavailable
40
CLAMP
90464-16003-00
Unavailable
41
CLAMP
90464-10008-00
Unavailable
42
CLAMP(2TV)
90464-10112-00
Unavailable
43
CLAMP(4FM)
90464-15195-00
Unavailable
44
CLAMP, HOSE(3KJ)
90460-15126-00
Unavailable
45
CLAMP
90465-10098-00
Unavailable
46
CLAMP(6E8)
90465-13M39-00
Unavailable
47
CLAMP(4FM)
90464-15195-00
Unavailable
48
CLAMP
90464-18007-00
Unavailable
49
CLAMP
90464-16012-00
Unavailable
