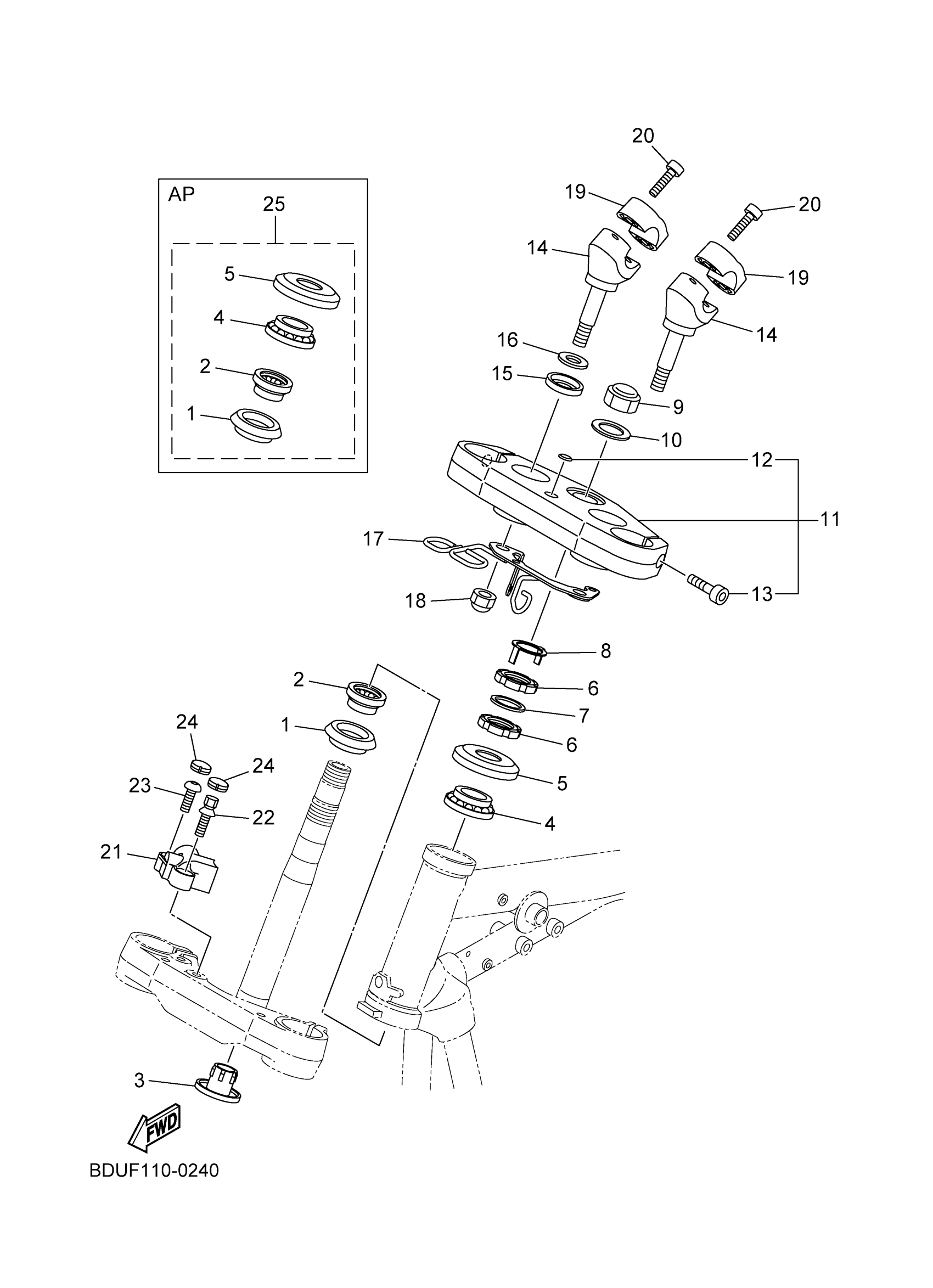

Yamaha XVS95CSCB (BOLT R SPEC CA) BDUG 2025 STEERING Diagram

#

Description
Price

1

SEAL, STEERING

3FV-23462-00-00

$24.99

2

BEARING(3FV)

93399-99932-00

$63.99

3

COVER, LOWER 1

4KM-23123-01-00

$14.49

4

BEARING(3FV)

93399-99931-00

$57.99

5

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

6

NUT

90179-25004-00

$24.99

7

WASHER, PLATE (26H)

90202-26142-00

$9.49

8

WASHER, SPECIAL

26H-23418-01-00

$14.49

9

NUT, CROWN

90176-22002-00

$34.99

10

WASHER, PLATE

90201-22018-00

$5.60

11

CROWN, HANDLE

1TP-Y2343-00-00

Unavailable

12

TUNING FORK MARK

14B-2836B-00-00

Unavailable

13

BOLT,SOCKET

91314-08030-00

$2.34

14

HOLDER, HANDLE LOWER

1TP-23442-00-00

$112.99

15

DAMPER

3DM-23445-00-00

$7.99

16

WASHER PLATE 248181370000

90201-14220-00

Unavailable

17

GUIDE, CABLE

1TP-23389-00-00

Unavailable

18

NUT, CROWN(4TR)

90176-12052-00

Unavailable

19

HOLDER, HANDLE UPPER

1TP-23441-00-00

Unavailable

20

BOLT,SOCKET

91314-08025-00

Unavailable

21

STEERING LOCK ASSY

1TP-23408-00-00

Unavailable

22

BOLT

90109-08196-00

Unavailable

23

SCREW

90149-08002-00

Unavailable

24

CAP, HANDLE LOCK

1TP-23484-00-00

Unavailable

25

STEERING BEARING KIT

BVA-W000B-00-00

Unavailable
