Description

Price

1

REAR ARM COMP.

1TP-22110-00-00

$638.99

2

SHAFT, PIVOT

1TP-22141-00-00

Unavailable

3

COLLAR

90387-16030-00

Unavailable

4

OIL SEAL

93108-44001-00

$7.49

5

NUT, U (6TD)

95617-16100-00

$26.99

6

BEARING

93317-52897-00

$58.99

7

COLLAR

90387-16032-00

Unavailable

8

OIL SEAL

93109-28001-00

$8.49

9

COVER

1TP-2219X-00-00

$4.68

10

CASE, CHAIN

1TP-22311-00-00

$29.99

11

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

12

CASE, CHAIN 2

1TP-22312-00-00

$29.99

13

COLLAR

90387-06048-00

$8.49

14

SHOCK ABSORBER ASSY, REAR

2DX-22210-04-00

Unavailable

15

DAMPER, SHOCK ABSORBER LOWER

447-22217-21-00

$6.99

16

BUSH, REAR SHOCK ABSORBER

447-22216-20-00

Unavailable

17

SHOCK ABSORBER ASSY, REAR

2DX-22220-04-00

Unavailable

18

DAMPER, SHOCK ABSORBER LOWER

447-22217-21-00

$6.99

19

BUSH, REAR SHOCK ABSORBER

447-22216-20-00

Unavailable

20

WASHER, PLATE

90201-10074-00

Unavailable

21

NUT, CROWN(3BM)

90176-10073-00

Unavailable

22

WASHER, PLATE

90201-08119-00

Unavailable

23

SCREW

90149-08054-00

Unavailable

24

LABEL, TIRE

1TP-21668-01-00

Unavailable

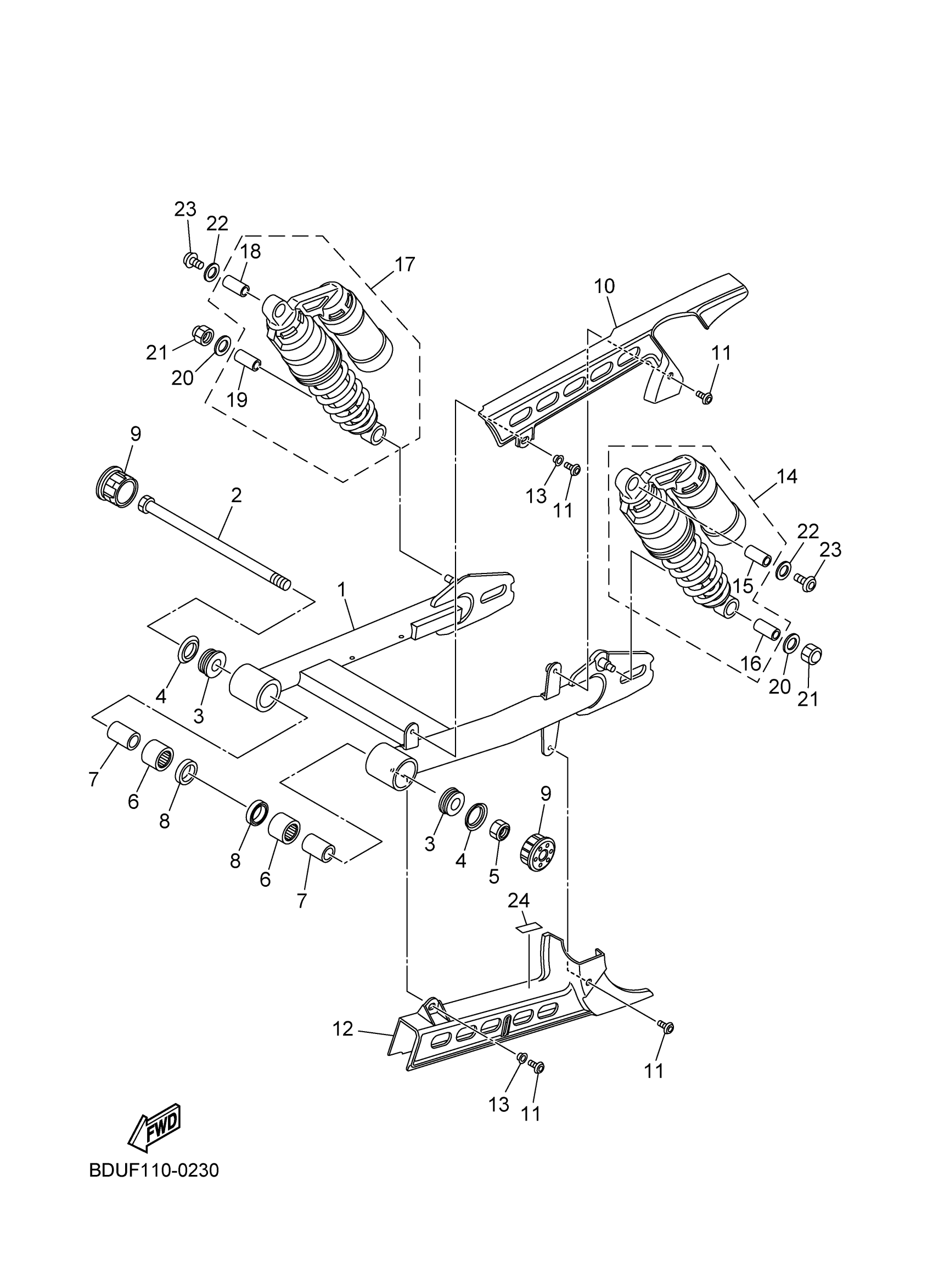

Yamaha XVS95CSCB (BOLT R SPEC CA) BDUG 2025 REAR ARM & SUSPENSION Diagram

REAR ARM COMP.

SHAFT, PIVOT

COLLAR

OIL SEAL

NUT, U (6TD)

BEARING

COLLAR

OIL SEAL

COVER

CASE, CHAIN

BOLT,HEX. SOCKET BUTTON

CASE, CHAIN 2

COLLAR

SHOCK ABSORBER ASSY, REAR

DAMPER, SHOCK ABSORBER LOWER

BUSH, REAR SHOCK ABSORBER

SHOCK ABSORBER ASSY, REAR

DAMPER, SHOCK ABSORBER LOWER

BUSH, REAR SHOCK ABSORBER

WASHER, PLATE

NUT, CROWN(3BM)

WASHER, PLATE

SCREW

LABEL, TIRE
