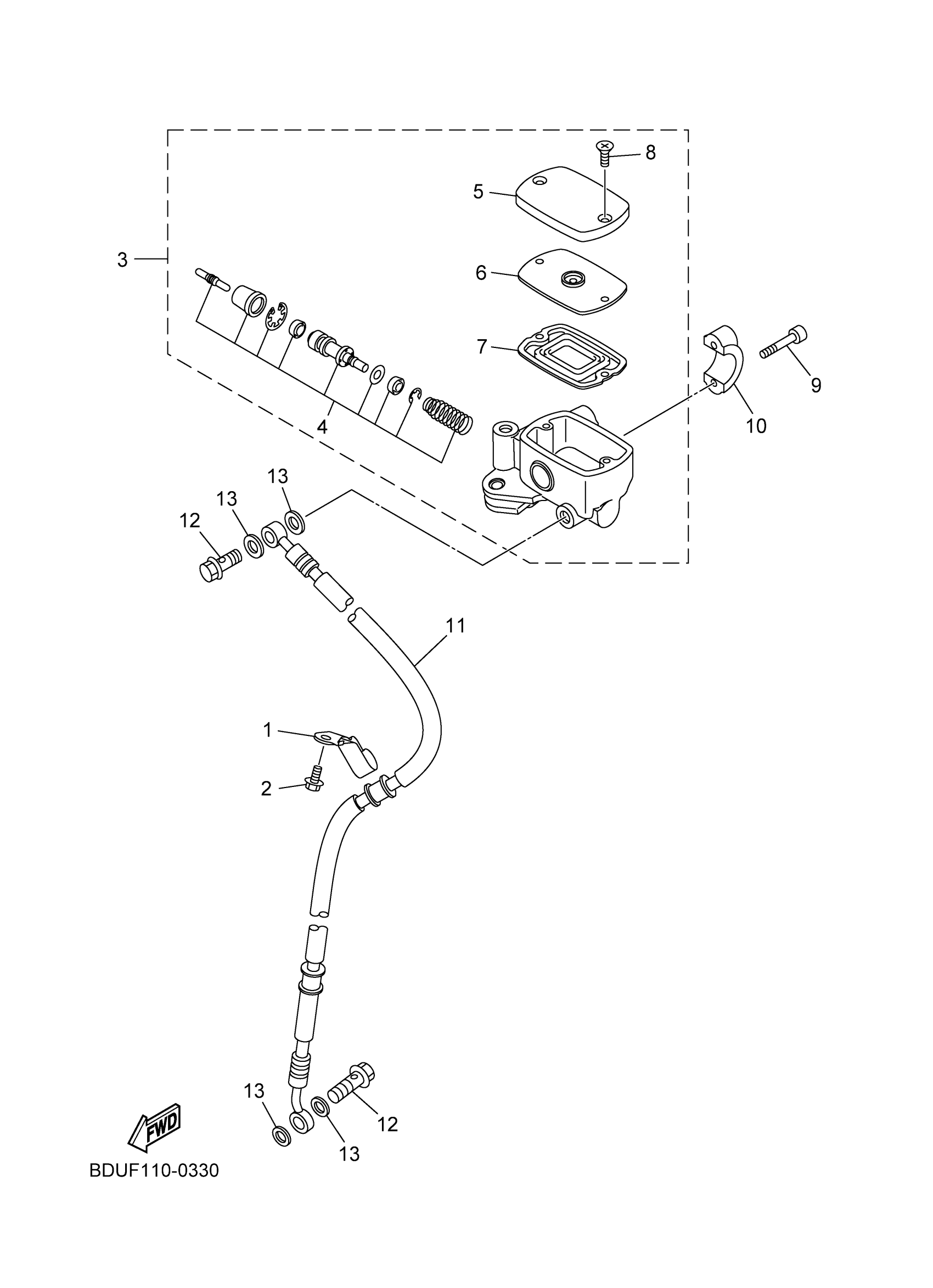

Yamaha XVS95CSCB (BOLT R SPEC CA) BDUG 2025 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOLDER, BRAKE HOSE

1TP-25886-00-00

Unavailable

2

BOLT, FLANGE(4MY)

95027-06010-00

$2.31

3

MASTER CYLINDER SUB ASSY 2

1TP-2580A-00-00

$189.76

4

CYLINDER KIT, MASTER

1TP-25807-00-00

$28.18

5

CAP, RESERVOIR

4B5-25852-00-00

$31.41

6

BUSH,DIAPHRAGM

4B5-25855-00-00

$6.33

7

DIAPHRAGM, RESERVOIR

4B5-25854-00-00

Unavailable

8

SCREW

5VS-2589H-00-00

$3.16

9

BOLT

5VS-26332-00-00

$3.67

10

BRACKET, MASTER CYLINDER

3D8-25867-00-00

Unavailable

11

HOSE, BRAKE 1

1TP-25872-00-00

$77.09

12

BOLT, UNION

90401-10020-00

$7.72

13

GASKET

90430-10005-00

$6.57
