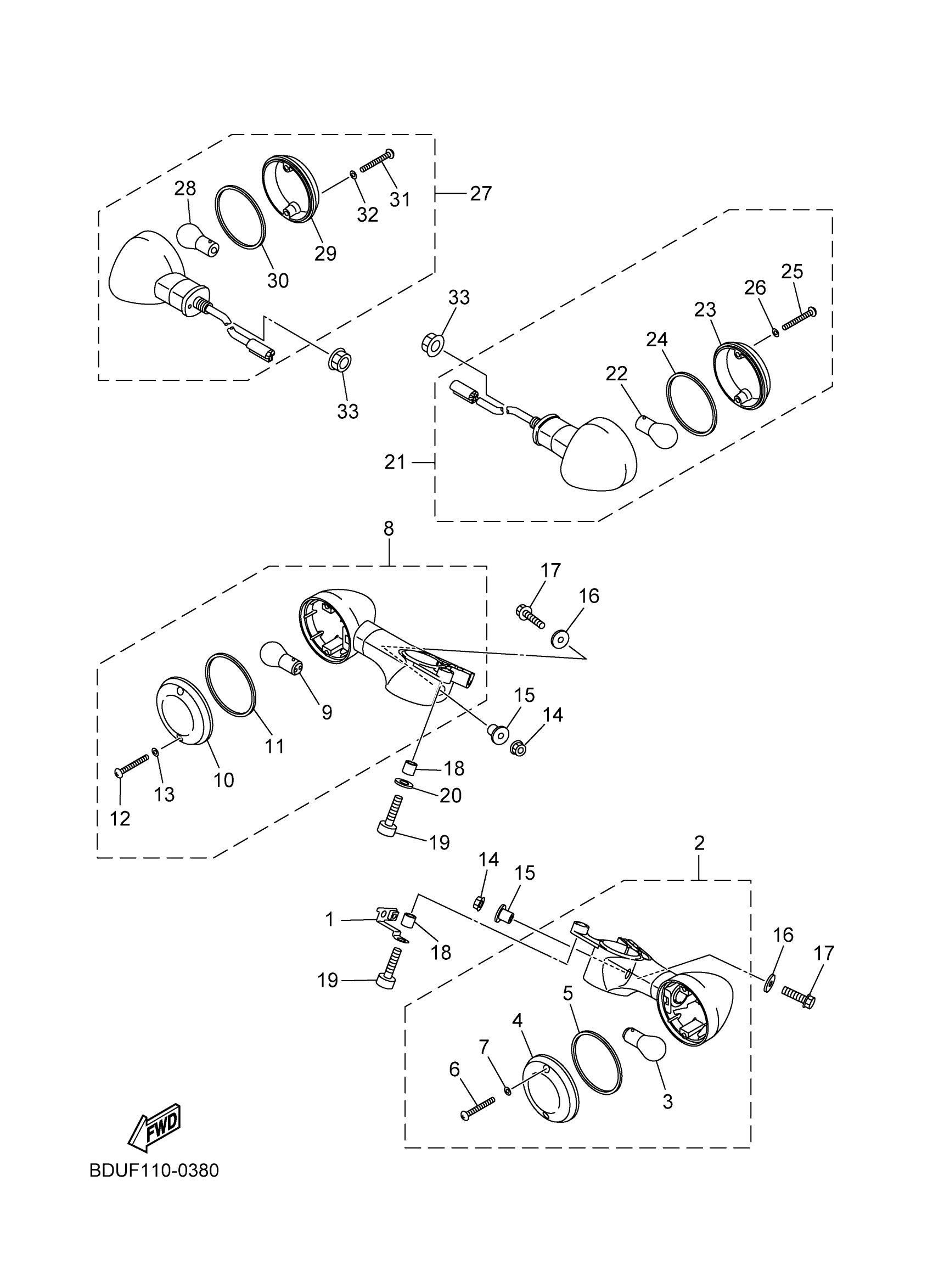

Yamaha XVS95CSCB (BOLT R SPEC CA) BDUG 2025 FLASHER LIGHT Diagram

#

Description
Price

1

BRACKET

1TP-2256L-00-00

Unavailable

2

FRONT FLASHER LIGHT ASSY 1

1TP-83310-00-00

$94.99

3

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

4

LENS, FLASHER

5PX-83312-10-00

$9.99

5

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

6

SCREW, TAPPING

97704-40625-00

$8.49

7

WASHER

5PX-83348-00-00

$6.99

8

FRONT FLASHER LIGHT ASSY 2

1TP-83320-00-00

Unavailable

9

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

10

LENS, FLASHER

5PX-83312-10-00

$9.99

11

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

12

SCREW, TAPPING

97704-40625-00

$8.49

13

WASHER

5PX-83348-00-00

$6.99

14

NUT, FLANGE(4MV)

95707-06500-00

$1.23

15

COLLAR

90387-06076-00

$5.60

16

WASHER, PLATE

90201-06045-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

18

COLLAR

90387-08085-00

Unavailable

19

BOLT, SOCKET

91317-08025-00

Unavailable

20

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

21

REAR FLASHER LIGHT ASSY 1

5C7-83330-10-00

Unavailable

22

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

23

LENS, FLASHER 2

5PX-83342-10-00

Unavailable

24

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

25

SCREW, TAPPING

97704-40625-00

$8.49

26

WASHER

5PX-83348-00-00

$6.99

27

REAR FLASHER LIGHT ASSY 2

5C7-83340-10-00

Unavailable

28

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

29

LENS, FLASHER 2

5PX-83342-10-00

Unavailable

30

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

31

SCREW, TAPPING

97704-40625-00

$8.49

32

WASHER

5PX-83348-00-00

$6.99

33

95702-12500

95702-12500-00

Unavailable
