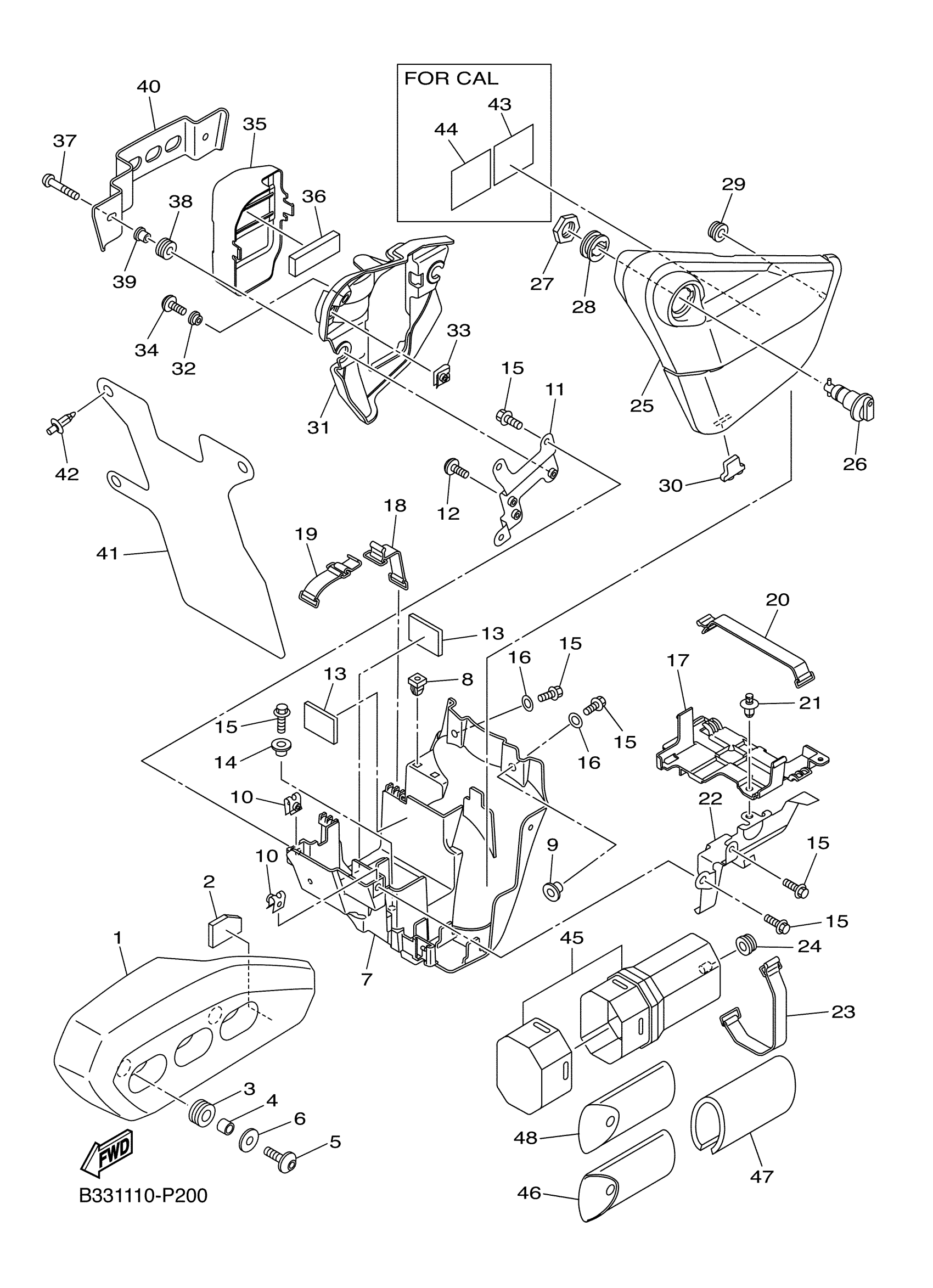

Yamaha XVS95CRGC (BOLT C SPEC CA) B33C 2016 SIDE COVER Diagram
#
1
COVER, SIDE 3
B33-21731-10-00
Unavailable
2
DAMPER 1
B33-1542A-00-00
Unavailable
7
BOX, BATTERY
1TP-2177G-00-00
Unavailable
8
GROMMET
90480-07003-00
Unavailable
9
COLLAR
90387-06239-00
Unavailable
11
STAY, SIDE COVER 1
1TP-2172E-00-00
Unavailable
13
DAMPER
5S7-2139X-00-00
Unavailable
14
COLLAR
90387-06267-00
Unavailable
16
WASHER, PLATE(3SX)
90201-062P7-00
Unavailable
17
BOX
1TP-2177A-01-00
Unavailable
18
BAND, BATTERY
3TJ-82131-00-00
Unavailable
19
BAND, BATTERY
1TP-82131-00-00
Unavailable
20
BAND,BATTERY
7H3-82131-00-00
Unavailable
21
RIVET(4PH)
90269-07077-00
Unavailable
22
HOLDER, TOOL
1TP-28170-00-00
Unavailable
23
BAND,BATTERY
7H3-82131-00-00
Unavailable
24
GROMMET
90480-20001-00
Unavailable
25
COVER, SIDE 1
1TP-21711-00-00
Unavailable
26
SIDE COVER LOCK ASSY
55K-21708-00-00
Unavailable
27
NUT, HEXAGON (1E6)
90170-22187-00
Unavailable
28
GROMMET (1E6)
90480-24186-00
Unavailable
29
GROMMET
90480-13014-00
Unavailable
30
DAMPER, SIDE COVER
2N4-21717-00-00
Unavailable
31
COVER, SIDE 2
1TP-21721-00-00
Unavailable
32
COLLAR
90387-06173-00
Unavailable
34
BOLT
90111-06038-00
Unavailable
35
COVER, BATTERY
1TP-2124E-00-00
Unavailable
36
DAMPER, LOCATING 1
4D3-24181-00-00
Unavailable
37
BOLT
90111-06030-00
Unavailable
38
GROMMET
90480-14003-00
Unavailable
39
COLLAR(4JW)
90387-0602X-00
Unavailable
40
PLATE
1TP-2176E-00-00
Unavailable
41
COVER
1TP-2172W-00-00
Unavailable
42
RIVET
90269-06008-00
Unavailable
45
TOOL BOX COMP.
BL3-21107-00-00
Unavailable
46
TOOL KIT
B33-28100-01-00
Unavailable
47
DAMPER, PLATE
90520-08003-00
Unavailable
48
TOOL KIT
B33-28100-10-00
Unavailable
