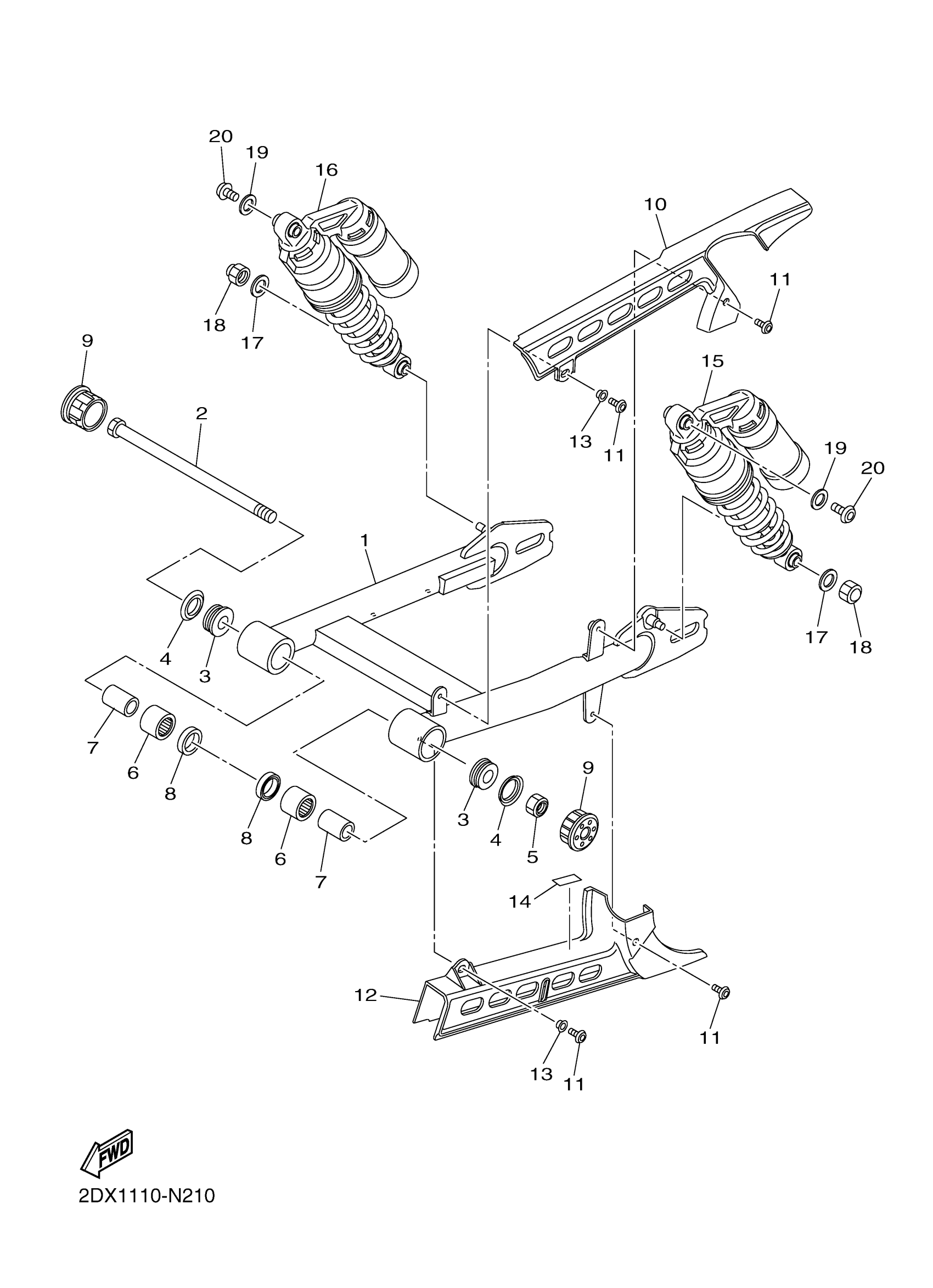

Yamaha XVS95CRGC (BOLT C SPEC CA) B33C 2016 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

1TP-22110-00-00

$638.99

2

SHAFT, PIVOT

1TP-22141-00-00

Unavailable

3

COLLAR

90387-16030-00

Unavailable

4

OIL SEAL

93108-44001-00

$7.49

5

NUT, U (6TD)

95617-16100-00

$26.99

6

BEARING

93317-52897-00

$58.99

7

COLLAR

90387-16032-00

Unavailable

8

OIL SEAL

93109-28001-00

$8.49

9

COVER

1TP-2219X-00-00

$4.68

10

CASE, CHAIN

1TP-22311-00-00

$29.99

11

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$8.49

12

CASE, CHAIN 2

1TP-22312-00-00

$29.99

13

COLLAR

90387-06048-00

$8.49

14

LABEL, TIRE

1TP-21668-00-00

$2.29

15

SHOCK ABSORBER ASSY, REAR

B33-22210-01-00

$576.99

16

SHOCK ABSORBER ASSY, REAR

B33-22220-01-00

Unavailable

17

WASHER, PLATE

90201-10074-00

Unavailable

18

NUT, CROWN(3BM)

90176-10073-00

Unavailable

19

WASHER, PLATE

90201-08119-00

Unavailable

20

SCREW

90149-08054-00

Unavailable
