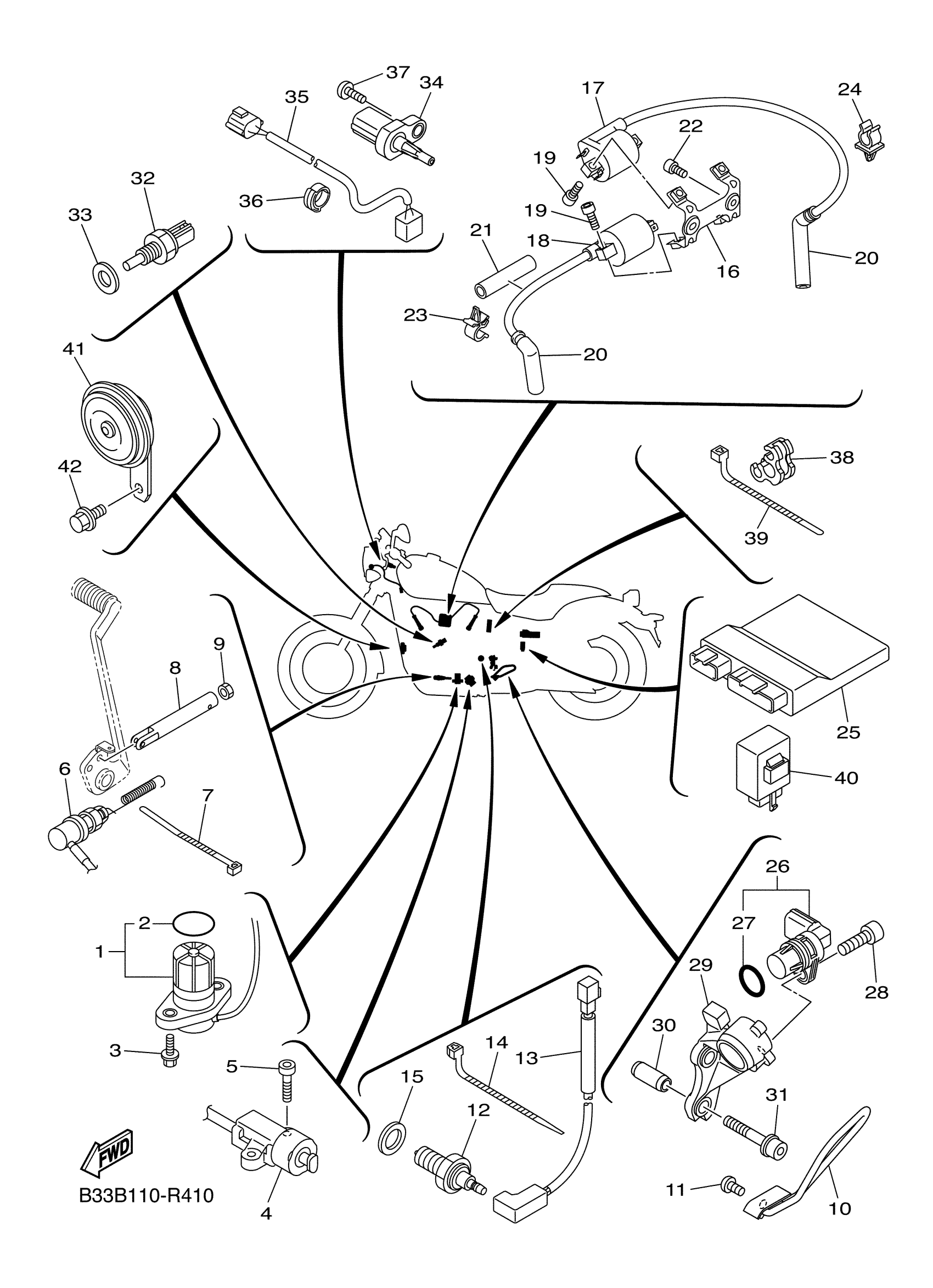

Yamaha XVS95CRGC (BOLT C SPEC CA) B33C 2016 ELECTRICAL 1 Diagram
#
4
SWITCH, SIDE STAND
5XT-82566-01-00
Unavailable
6
STOP SWITCH ASSY
BL3-82530-00-00
Unavailable
8
JOINT
B33-27222-00-00
Unavailable
10
GUIDE, WIRE
B33-27267-00-00
Unavailable
13
WIRE, SUB LEAD
5S7-82509-10-00
Unavailable
16
BRACKET, COIL
3D8-21359-01-00
Unavailable
17
IGNITION COIL ASSY
1TP-82310-00-00
Unavailable
18
IGNITION COIL ASSY
1S4-82310-03-00
Unavailable
19
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
20
PLUG CAP ASSY
5S7-82370-00-00
Unavailable
21
HOSE (L65)
90445-14020-00
Unavailable
22
BOLT
91312-06008-00
Unavailable
23
CLAMP(3LD)
90464-09129-00
Unavailable
24
CLAMP
90464-09008-00
Unavailable
25
ENGINE CONTROL UNIT ASSY
1TP-8591A-00-00
Unavailable
26
SENSOR, SPEED
1TP-83755-00-00
Unavailable
27
O-RING
4D9-81168-00-00
Unavailable
28
BOLT (33M)
91312-06014-00
Unavailable
29
BRACKET
1TP-81948-00-00
Unavailable
30
PIN, DOWEL
99530-08012-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD
90110-06300-00
Unavailable
32
THERMO UNIT
52B-H3591-00-00
Unavailable
33
WASHER PLATE 341839090000
90201-10128-00
Unavailable
34
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
Unavailable
35
WIRE, SUB LEAD
B33-82509-00-00
Unavailable
36
CLAMP
90464-26001-00
Unavailable
37
SCREW, PAN
98517-05012-00
Unavailable
38
CLAMP, LEAD 1
1TP-81443-00-00
Unavailable
39
CLAMP
90464-20258-00
Unavailable
40
FLASHER RELAY ASSY
5C4-83350-02-00
Unavailable
41
HORN
2S3-83371-00-00
Unavailable
42
BOLT, WASHER BASED
90105-082A5-00
Unavailable
