Description

Price

1

FOOTREST 1

B33-27411-00-00

$284.99

2

FOOTREST 1

46X-27411-10-00

$32.99

3

FOOTREST

4BH-27451-01-00

$58.99

4

COVER, FOOTREST

4BP-27413-00-00

$30.99

5

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

6

PIN (3L5)

91701-08035-00

$7.49

7

SPRING, TORSION (22N)

90508-20572-00

$8.49

8

BOLT

1D7-27435-09-00

Unavailable

9

PIN, COTTER

91490-25020-00

$3.19

10

STAND, SIDE

1TP-27311-00-00

Unavailable

11

BOLT, FLANGE

90105-10426-00

$8.49

12

NUT, SELF-LOCKING

90185-10008-00

$7.49

13

LINK, SIDE STAND

1TP-27315-00-00

$7.99

14

WASHER

5S7-27322-00-00

Unavailable

15

COLLAR

90387-10020-00

$17.99

16

SPRING, TENSION(4KU)

90506-23490-00

Unavailable

17

SPRING, TENSION

90506-29507-00

Unavailable

18

HOSE (L60)

90445-16641-00

Unavailable

19

FOOTREST 2

B33-27421-00-00

Unavailable

20

FOOTREST

4BH-27461-01-00

Unavailable

21

COVER, FOOTREST

4BP-27413-00-00

$30.99

22

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

23

PIN, CLEVIS

91702-08040-00

Unavailable

24

SPRING, TORSION (22N)

90508-20572-00

$8.49

25

BOLT

1D7-27435-09-00

Unavailable

26

PIN, COTTER

91490-25020-00

$3.19

27

BOLT, WASHER BASED

90105-10009-00

Unavailable

28

B0LT,FLANGE (1KT)

90105-10323-00

Unavailable

29

NUT, SELF-LOCKING

90185-10008-00

$7.49

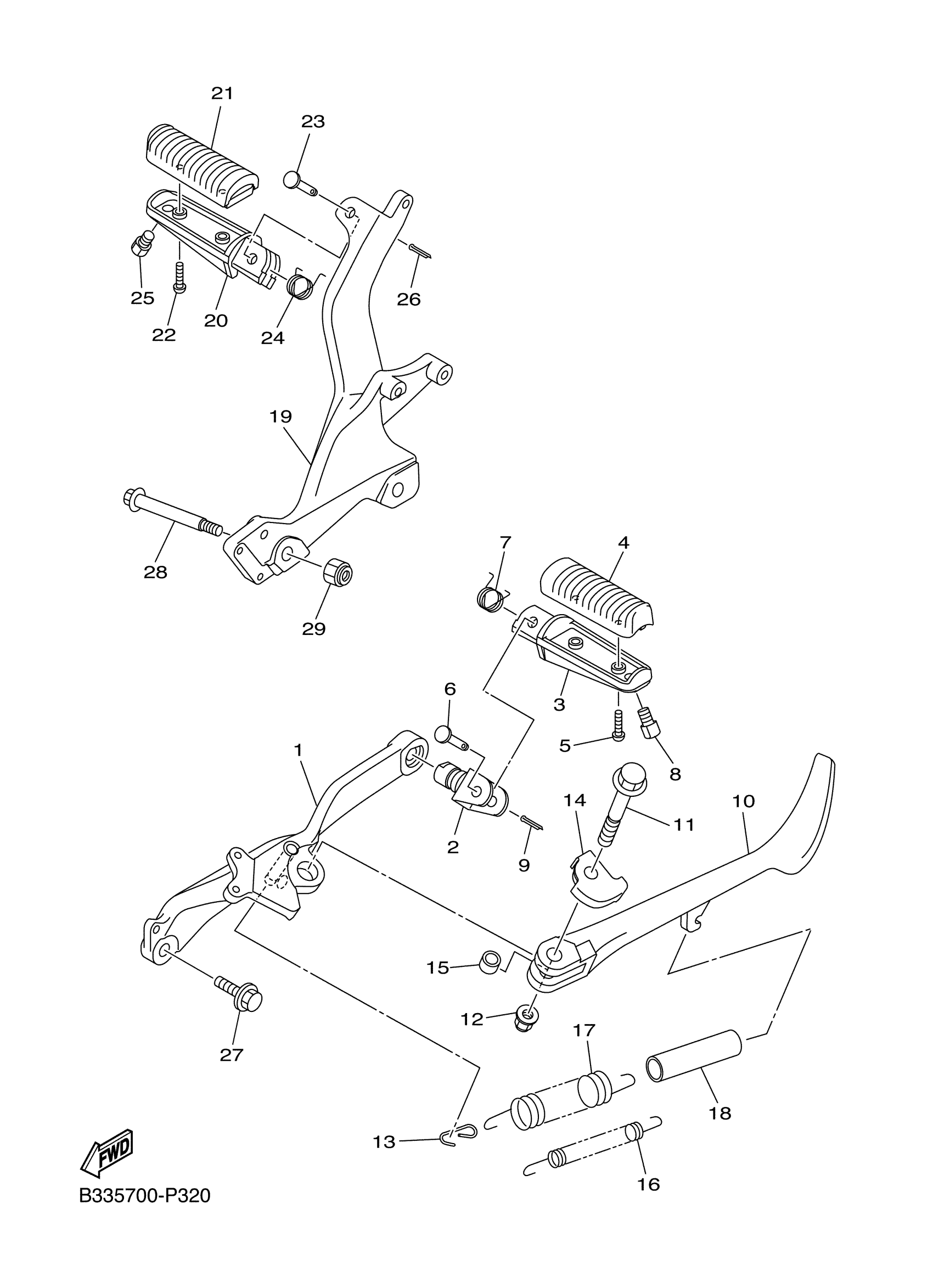

Yamaha XVS95CRFS (BOLT C SPEC) B3310 2015 STAND FOOTREST Diagram

FOOTREST 1

FOOTREST 1

FOOTREST

COVER, FOOTREST

SCREW, PAN HEAD(3YL)

PIN (3L5)

SPRING, TORSION (22N)

BOLT

PIN, COTTER

STAND, SIDE

BOLT, FLANGE

NUT, SELF-LOCKING

LINK, SIDE STAND

WASHER

COLLAR

SPRING, TENSION(4KU)

SPRING, TENSION

HOSE (L60)

FOOTREST 2

FOOTREST

COVER, FOOTREST

SCREW, PAN HEAD(3YL)

PIN, CLEVIS

SPRING, TORSION (22N)

BOLT

PIN, COTTER

BOLT, WASHER BASED

B0LT,FLANGE (1KT)

NUT, SELF-LOCKING
