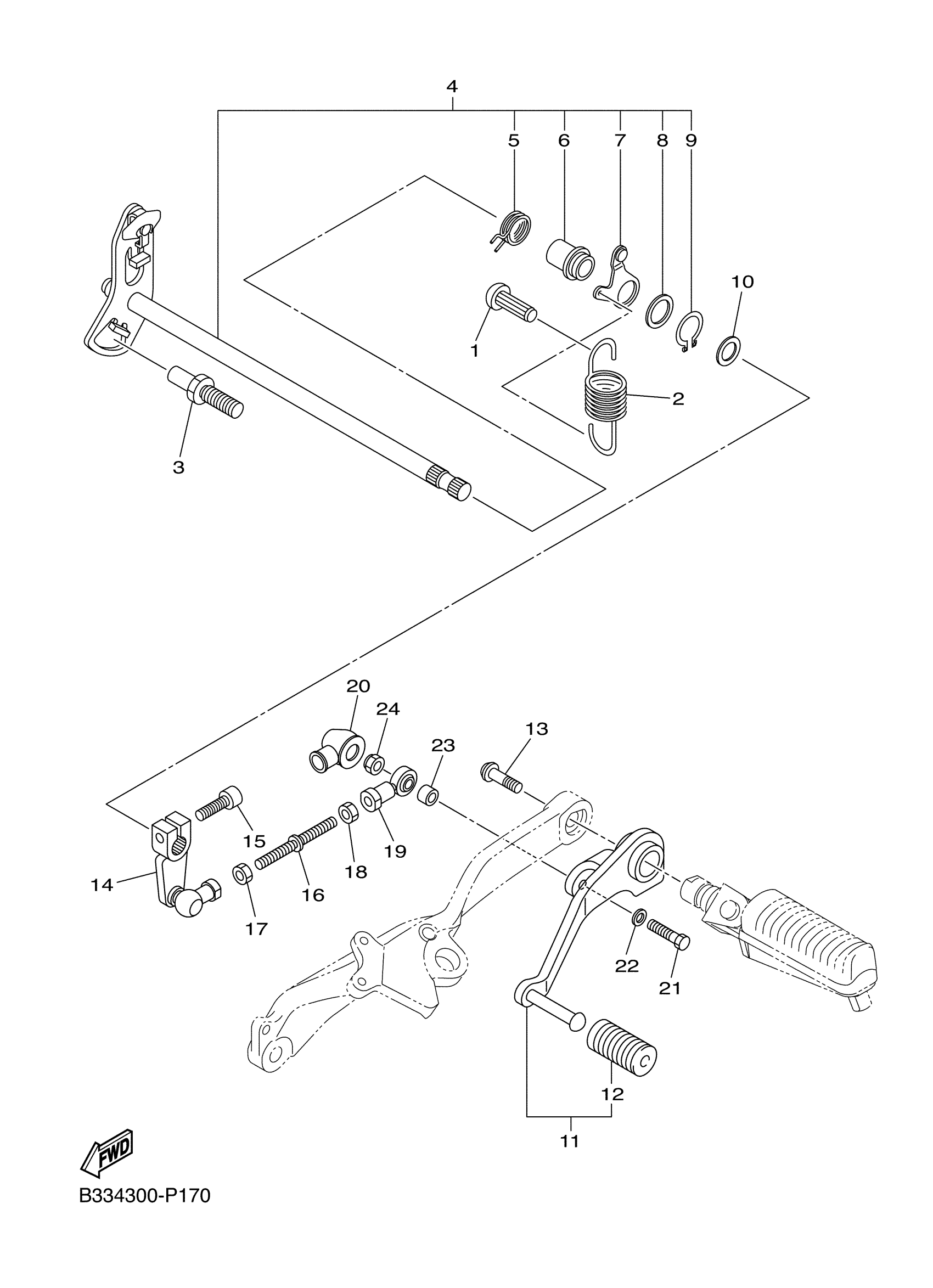

Yamaha XVS95CRFS (BOLT C SPEC) B3310 2015 SHIFT SHAFT Diagram

#

Description
Price

1

HOOK, SPRING

132-16346-00-00

$9.99

2

SPRING, TENSION

90506-18015-00

Unavailable

3

STOPPER, SCREW

5VK-18127-00-00

Unavailable

4

SHIFT SHAFT ASSY

3D8-18101-01-00

$152.99

5

SPRING, TORSION

90508-32040-00

$7.49

6

SPACER

3D8-18175-00-00

Unavailable

7

STOPPER LEVER ASSY

3D8-18140-00-00

$16.49

8

WASHER, PLATE (30X)

90201-177G4-00

$9.49

9

CIRCLIP(1EY)

99009-17400-00

$4.73

10

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

11

SHIFT PEDAL ASSY

B33-18110-00-00

$95.99

12

COVER, SHIFT PEDAL

5EB-18113-00-00

$7.99

13

BOLT,HEX. SOCKET BUTTON

90111-10040-00

$4.77

14

ARM, SHIFT

B33-18112-00-00

Unavailable

15

BOLT,SOCKET HEAD

91314-06020-00

$1.49

16

ROD, SHIFT

26H-18115-00-00

Unavailable

17

NUT

90170-06024-00

Unavailable

18

NUT, HEXAGON

95314-06600-00

Unavailable

19

JOINT, ROD 1

5VX-18116-00-00

Unavailable

20

COVER, DUST

5VX-18154-00-00

Unavailable

21

BOLT, HEXAGON

97017-06030-00

Unavailable

22

WASHER(6TA)

92907-06600-00

Unavailable

23

COLLAR(J45)

90387-064T3-00

Unavailable

24

NUT, SELF-LOCKING

95617-06100-00

Unavailable
