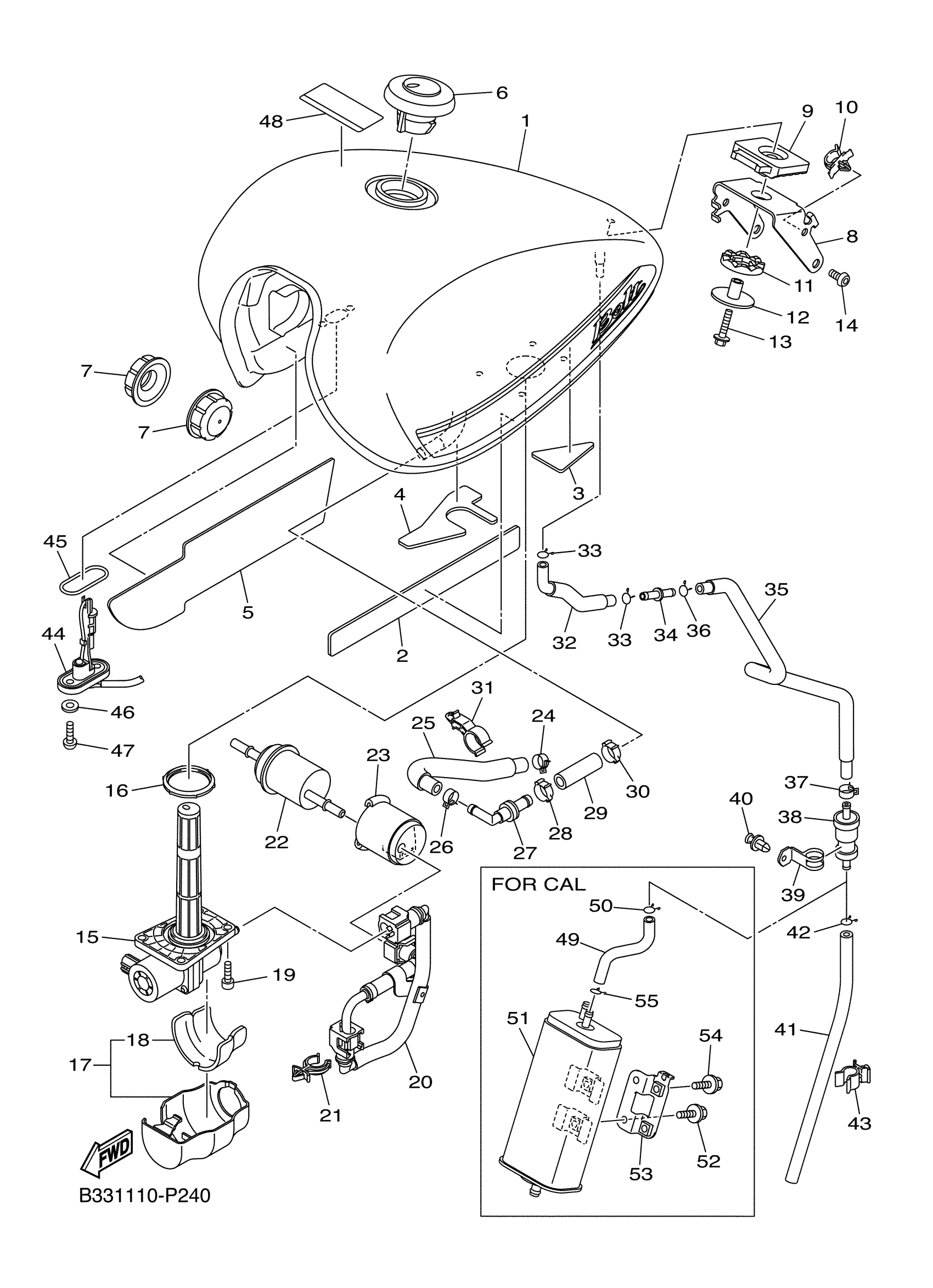

Yamaha XVS95CRFS (BOLT C SPEC) B3310 2015 FUEL TANK Diagram
#
1
FUEL TANK ASSY
1TP-W2410-01-X4
Unavailable
9
DAMPER, LOCATING 2
1TP-24182-00-00
Unavailable
10
CLAMP
90464-14001-00
Unavailable
11
DAMPER, LOCATING 3
1TP-24183-00-00
Unavailable
12
COLLAR
90387-06177-00
Unavailable
16
O-RING
1TP-24486-00-00
Unavailable
17
COVER
1TP-24474-01-00
Unavailable
18
DAMPER, PLATE 4
1TP-2414N-00-00
Unavailable
19
BOLT, SOCKET
91317-05016-00
Unavailable
20
FUEL PIPE ASSY
1TP-24330-01-00
Unavailable
21
CLAMP
90464-16240-00
Unavailable
22
FILTER
1TP-13915-00-00
Unavailable
23
BAND 1
1TP-24398-00-00
Unavailable
24
CLIP
90467-12003-00
Unavailable
25
PIPE 5
1TP-24315-01-00
Unavailable
26
CLIP
90467-12003-00
Unavailable
27
CHECK VALVE ASSY
1TP-14860-00-00
Unavailable
28
CLIP
90467-150A6-00
Unavailable
29
PIPE 4
1TP-24314-01-00
Unavailable
30
CLIP
90467-150A6-00
Unavailable
31
CLAMP
90464-17009-00
Unavailable
32
PIPE 3
1TP-24313-00-00
Unavailable
33
CLIP
90467-090A2-00
Unavailable
34
JOINT
4XY-14568-00-00
Unavailable
35
PIPE 6
1TP-24316-00-00
Unavailable
36
CLIP
90467-090A2-00
Unavailable
37
CLIP
90467-09001-00
Unavailable
38
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
39
CLAMP 2
1TP-24136-00-00
Unavailable
40
RIVET
90269-05005-00
Unavailable
44
SENDER UNIT ASSY, FUEL METER
1TP-85752-01-00
Unavailable
45
GASKET, SENDER UNIT
42X-85753-00-00
Unavailable
46
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
47
SCREW
90149-06108-00
Unavailable
48
LABEL, CAUTION
1TP-2118K-01-00
Unavailable
49
PIPE 1
1TP-2486A-00-00
Unavailable
50
CLIP
90467-090A2-00
Unavailable
51
CANISTER ASSY
5PX-24170-00-00
Unavailable
52
BOLT, FLANGE
95812-06010-00
Unavailable
53
PLATE
1TP-2413X-00-00
Unavailable
54
BOLT, FLANGE
95817-06014-00
Unavailable
55
CLIP
90467-090A2-00
Unavailable
