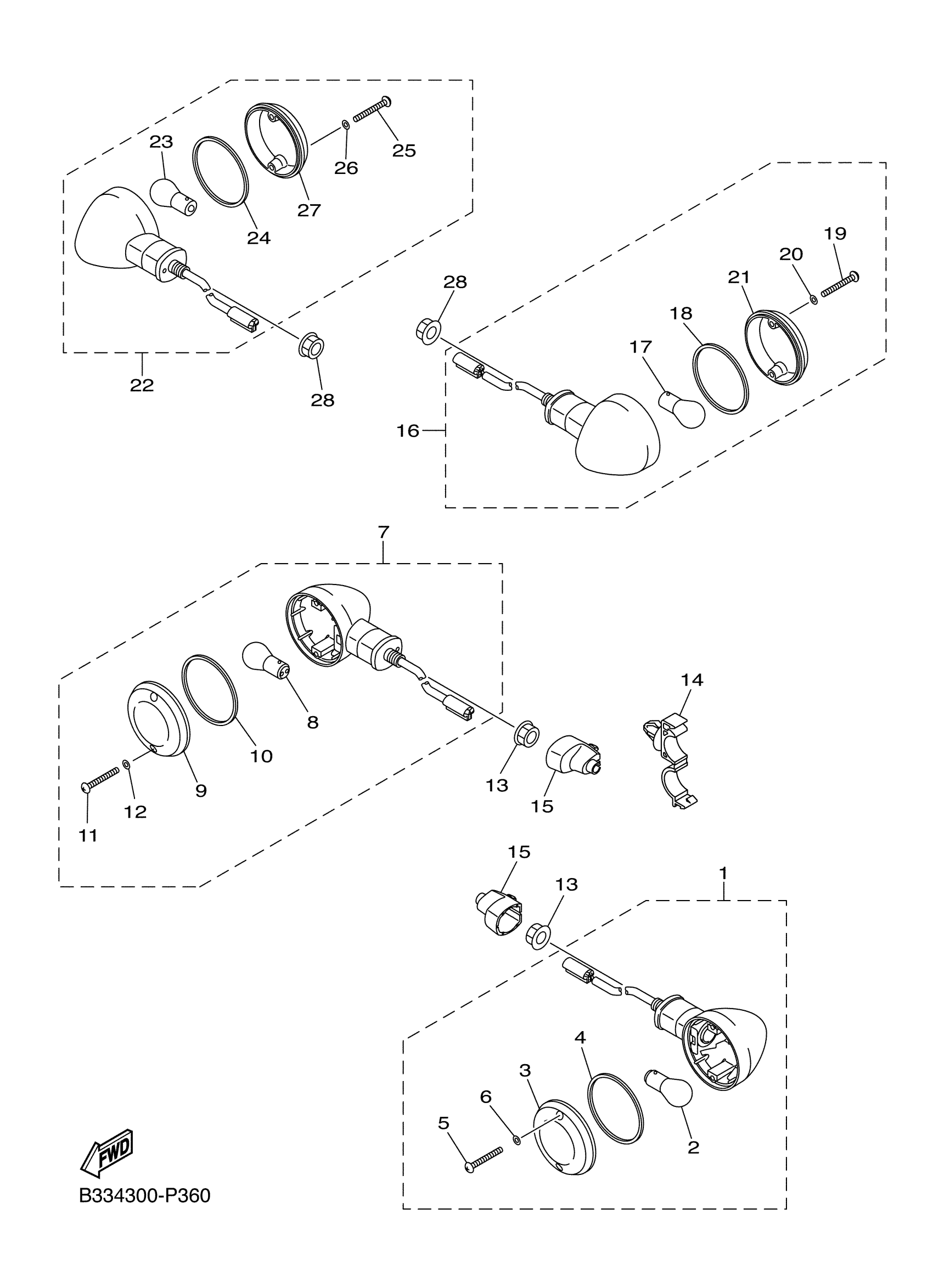

Yamaha XVS95CRFS (BOLT C SPEC) B3310 2015 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGH

B33-83310-00-00

$88.99

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

3

LENS, FLASHER

5PX-83312-10-00

$9.99

4

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

5

SCREW, TAPPING

97704-40625-00

$8.49

6

WASHER

5PX-83348-00-00

$6.99

7

FRONT FLASHER LIGH

B33-83320-00-00

Unavailable

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

9

LENS, FLASHER

5PX-83312-10-00

$9.99

10

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

11

SCREW, TAPPING

97704-40625-00

$8.49

12

WASHER

5PX-83348-00-00

$6.99

13

NUT(3GG)

90179-12588-00

$7.49

14

CLAMP

90464-17003-00

$3.61

15

COVER, OUTER 1

B33-23122-00-00

Unavailable

16

REAR FLASHER LIGHT ASSY 1

5C7-83330-10-00

Unavailable

17

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

18

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

19

SCREW, TAPPING

97704-40625-00

$8.49

20

WASHER

5PX-83348-00-00

$6.99

21

LENS, FLASHER 2

5PX-83342-10-00

Unavailable

22

REAR FLASHER LIGHT ASSY 2

5C7-83340-10-00

Unavailable

23

BULB, FLASHER (12V-21W)

5VN-83331-00-00

Unavailable

24

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

25

SCREW, TAPPING

97704-40625-00

$8.49

26

WASHER

5PX-83348-00-00

$6.99

27

LENS, FLASHER 2

5PX-83342-10-00

Unavailable

28

95702-12500

95702-12500-00

Unavailable
