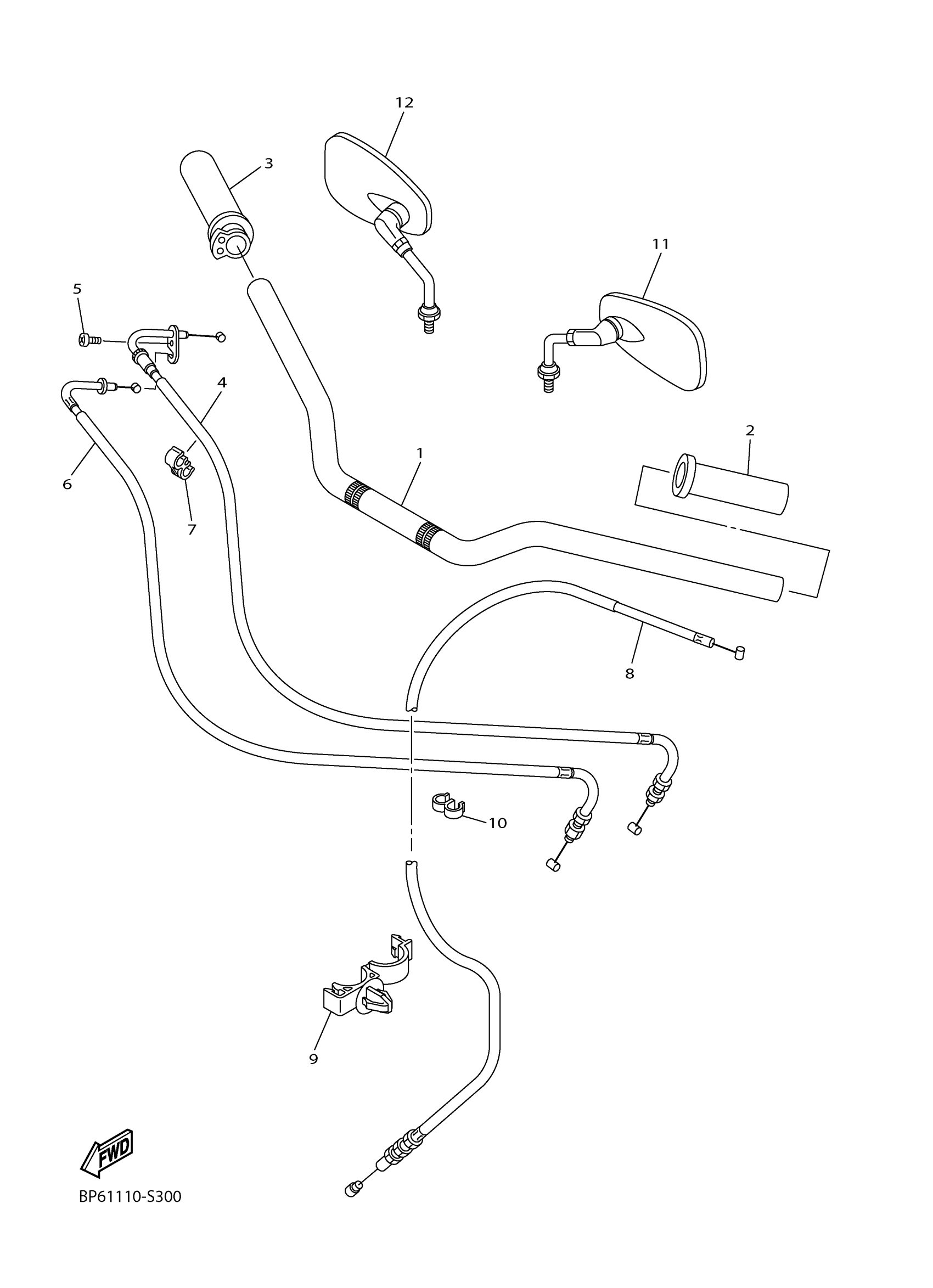

Yamaha XVS95CRCB (BOLT R SPEC CA) BDUD 2024 STEERING HANDLE & CABLE Diagram

#

Description
Price

1

HANDLEBAR

1TP-26111-00-00

$158.07

2

GRIP

1TP-26241-00-00

Unavailable

3

GRIP ASSY

1TP-26240-00-00

$52.43

4

CABLE, THROTTLE 1

1TP-26311-00-00

$31.27

5

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.31

6

CABLE, THROTTLE 2

1TP-26312-00-00

$30.18

7

CLAMP(4KB)

90464-06214-00

$2.78

8

CABLE, CLUTCH

1TP-26335-00-00

$39.51

9

CLAMP

90464-17003-00

$2.96

10

CLAMP(6M7)

90464-09M31-00

$6.04

11

REAR VIEW MIRROR ASSY (LEFT)

2DX-26280-00-00

$116.04

12

REAR VIEW MIRROR ASSY (RIGHT)

2DX-26290-00-00

$101.07
