2024 Yamaha Bolt R Spec CA (XVS95CRCB) Front Fork Diagram

← All diagrams

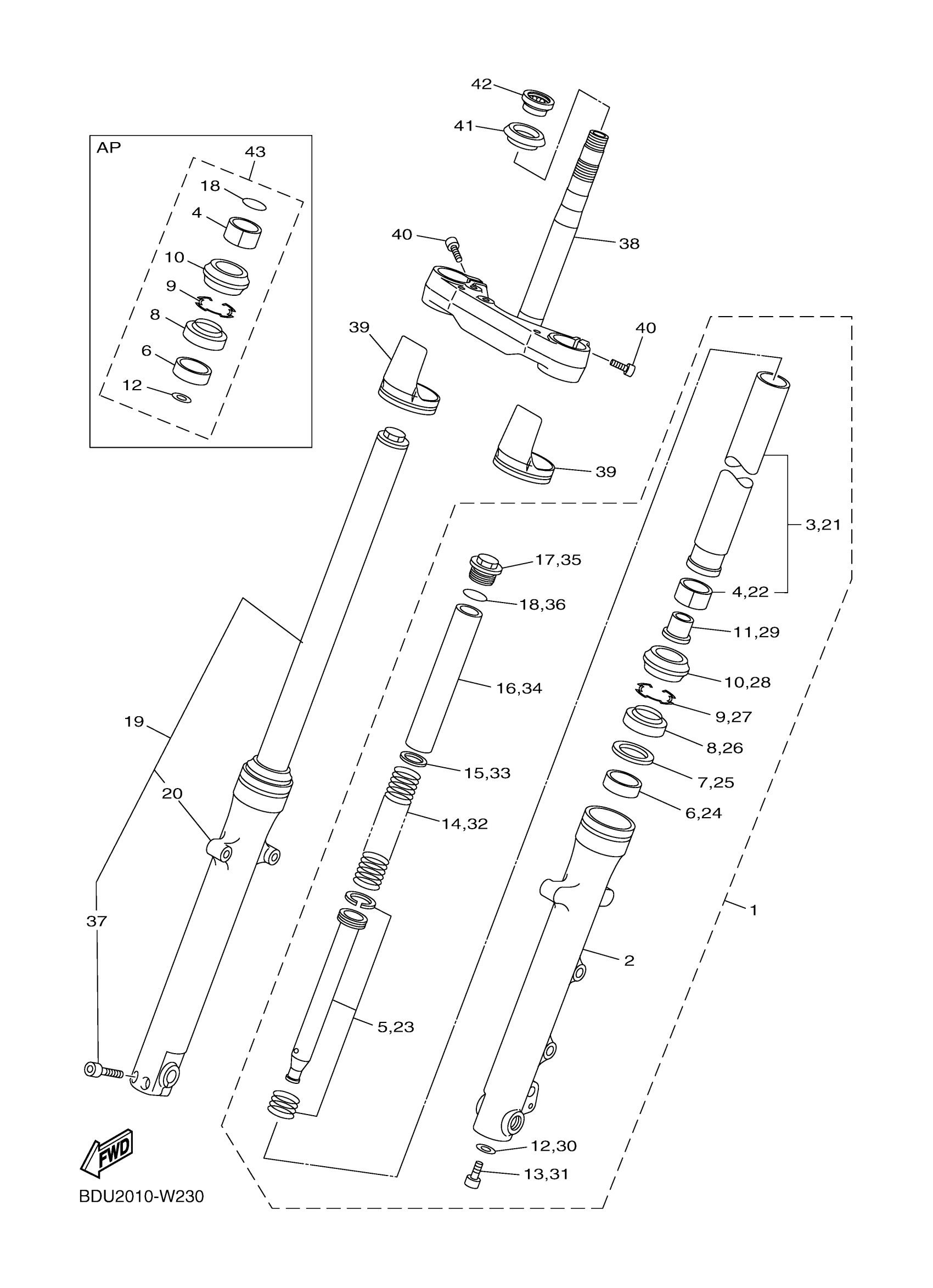

Find the part on the Front Fork diagram for your 2024 Yamaha Bolt R Spec CA (XVS95CRCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha Bolt R Spec CA (XVS95CRCB) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L

1TP-23102-03-00

—
Out of stock

2

TUBE, OUTER (L.H)

1TP-23126-01-00

—
Out of stock

3

INNER TUBE COMP.1

1TP-23110-01-00

—
Out of stock

4

METAL, SLIDE

4FM-23171-40-00

1
Out of stock

5

CYLINDER COMP., FR

1TP-23170-01-00

1
Out of stock

6

METAL, SLIDE 1

4FM-23125-40-00

1
Out of stock

7

WASHER, OIL SEAL

36Y-23146-10-00

1
Out of stock

8

OIL SEAL

4EB-23145-01-00

1
Out of stock

9

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

10

SEAL, DUST

4EB-23144-00-00

1
Out of stock

11

SPINDLE, TAPER

1TP-23173-00-00

—
Out of stock

12

GASKET

509-23158-L0-00

1
Out of stock

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

14

SPRING, FRONT FORK

1TP-23141-02-00

—
Out of stock

15

WASHER, SPRING UPPER

4DW-23149-40-00

1
Out of stock

16

SPACER

1TP-23118-00-00

—
Out of stock

17

BOLT, CAP

1D0-23111-00-00

—
Out of stock

18

O-RING

1TP-23188-01-00

—
Out of stock

19

FRONT FORK ASSY (R

1TP-23103-03-00

—
Out of stock

20

TUBE, OUTER

1TP-23136-01-00

—
Out of stock

21

INNER TUBE COMP.1

1TP-23110-01-00

—
Out of stock

22

METAL, SLIDE

4FM-23171-40-00

1
Out of stock

23

CYLINDER COMP., FR

1TP-23170-01-00

1
Out of stock

24

METAL, SLIDE 1

4FM-23125-40-00

1
Out of stock

25

WASHER, OIL SEAL

36Y-23146-10-00

1
Out of stock

26

OIL SEAL

4EB-23145-01-00

1
Out of stock

27

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

28

SEAL, DUST

4EB-23144-00-00

1
Out of stock

29

SPINDLE, TAPER

1TP-23173-00-00

—
Out of stock

30

GASKET

509-23158-L0-00

1
Out of stock

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

32

SPRING, FRONT FORK

1TP-23141-02-00

—
Out of stock

33

WASHER, SPRING UPPER

4DW-23149-40-00

1
Out of stock

34

SPACER

1TP-23118-00-00

—
Out of stock

35

BOLT, CAP

1D0-23111-00-00

—
Out of stock

36

O-RING

1TP-23188-01-00

—
Out of stock

37

BOLT, SOCKET

91314-08035-00

—
Out of stock

38

UNDER BRACKET COMP.

1TP-23340-01-00

—
Out of stock

39

COVER

4PU-2331G-00-00

—
Out of stock

40

BOLT,SOCKET

91314-10020-00

—
Out of stock

41

SEAL, STEERING

3FV-23462-00-00

—
Out of stock

42

BEARING(3FV)

93399-99932-00

—
Out of stock

43

FORK SEAL KIT (ONE FORK)

BDT-W003B-00-00

—
Out of stock
