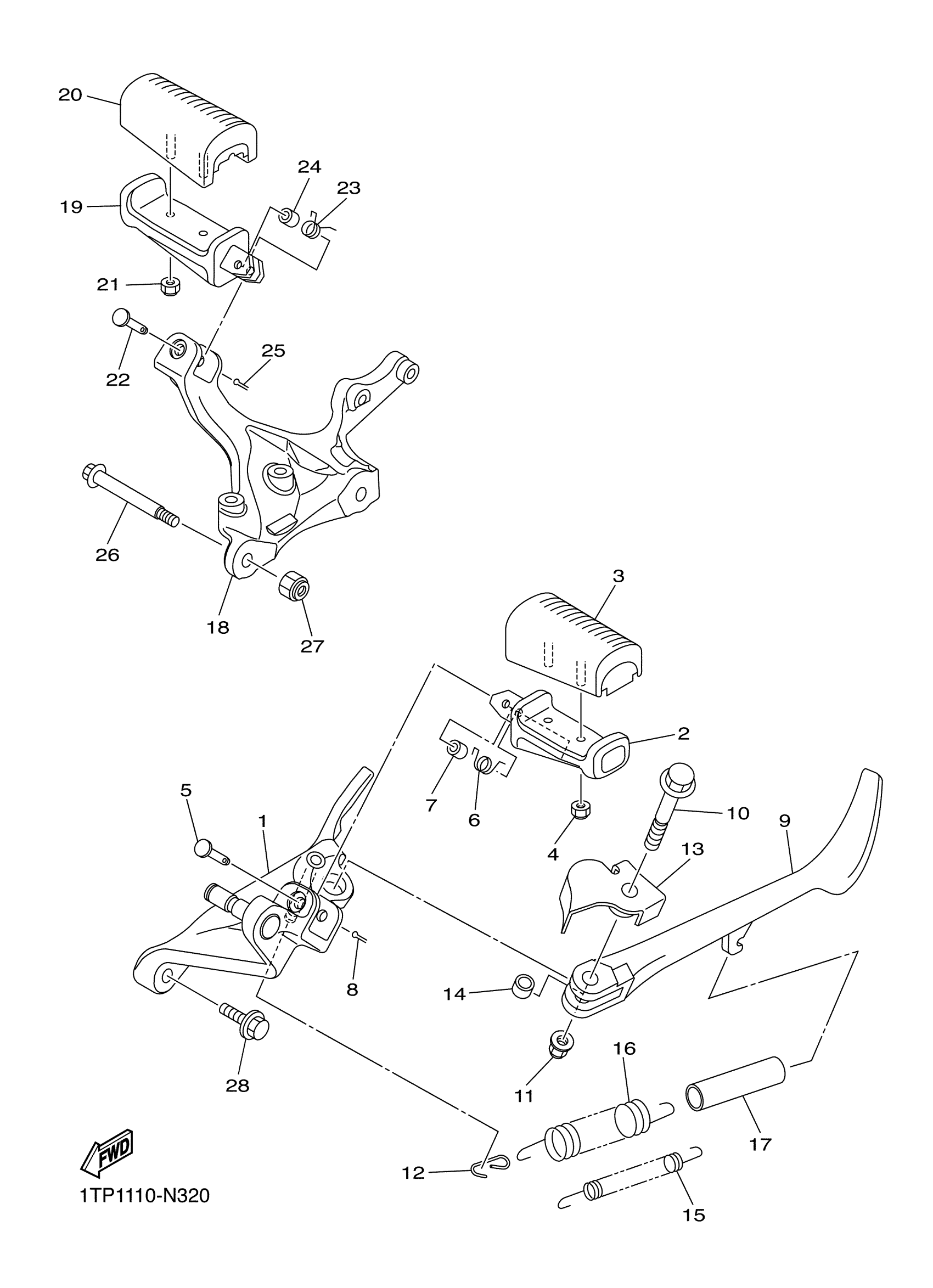

Yamaha XVS95CPGY (BOLT R SPEC) BDU8 2023 STAND & FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

1TP-27411-00-00

$242.99

2

FOOTREST

1TP-27451-00-00

$57.99

3

COVER, FOOTREST

4VR-27413-00-00

$40.99

4

NUT, SELF-LOCKING

95617-06100-00

$8.49

5

PIN, CLEVIS

90240-08145-00

$4.41

6

SPRING, TORSION

90508-18054-00

$7.49

7

COLLAR(1HX)

90387-087K5-00

$10.49

8

PIN, COTTER

91490-25020-00

$3.19

9

STAND, SIDE

1TP-27311-00-00

Unavailable

10

BOLT, FLANGE

90105-10426-00

$8.49

11

NUT, SELF-LOCKING

90185-10008-00

$7.49

12

LINK, SIDE STAND

1TP-27315-00-00

$7.99

13

WASHER

1TP-27322-00-00

Unavailable

14

COLLAR

90387-10020-00

$17.99

15

SPRING, TENSION(4KU)

90506-23490-00

$11.49

16

SPRING, TENSION

90506-29507-00

Unavailable

17

HOSE (L60)

90445-16641-00

Unavailable

18

FOOTREST 2

1TP-27421-00-00

Unavailable

19

FOOTREST

1TP-27461-00-00

Unavailable

20

COVER, FOOTREST

4VR-27413-00-00

$40.99

21

NUT, SELF-LOCKING

95617-06100-00

$8.49

22

PIN, CLEVIS

90240-08145-00

$4.41

23

SPRING, TORSION

90508-18054-00

$7.49

24

COLLAR(1HX)

90387-087K5-00

$10.49

25

PIN, COTTER

91490-25020-00

$3.19

26

B0LT,FLANGE (1KT)

90105-10323-00

Unavailable

27

NUT, SELF-LOCKING

90185-10008-00

$7.49

28

BOLT, WASHER BASED

90105-10009-00

Unavailable
