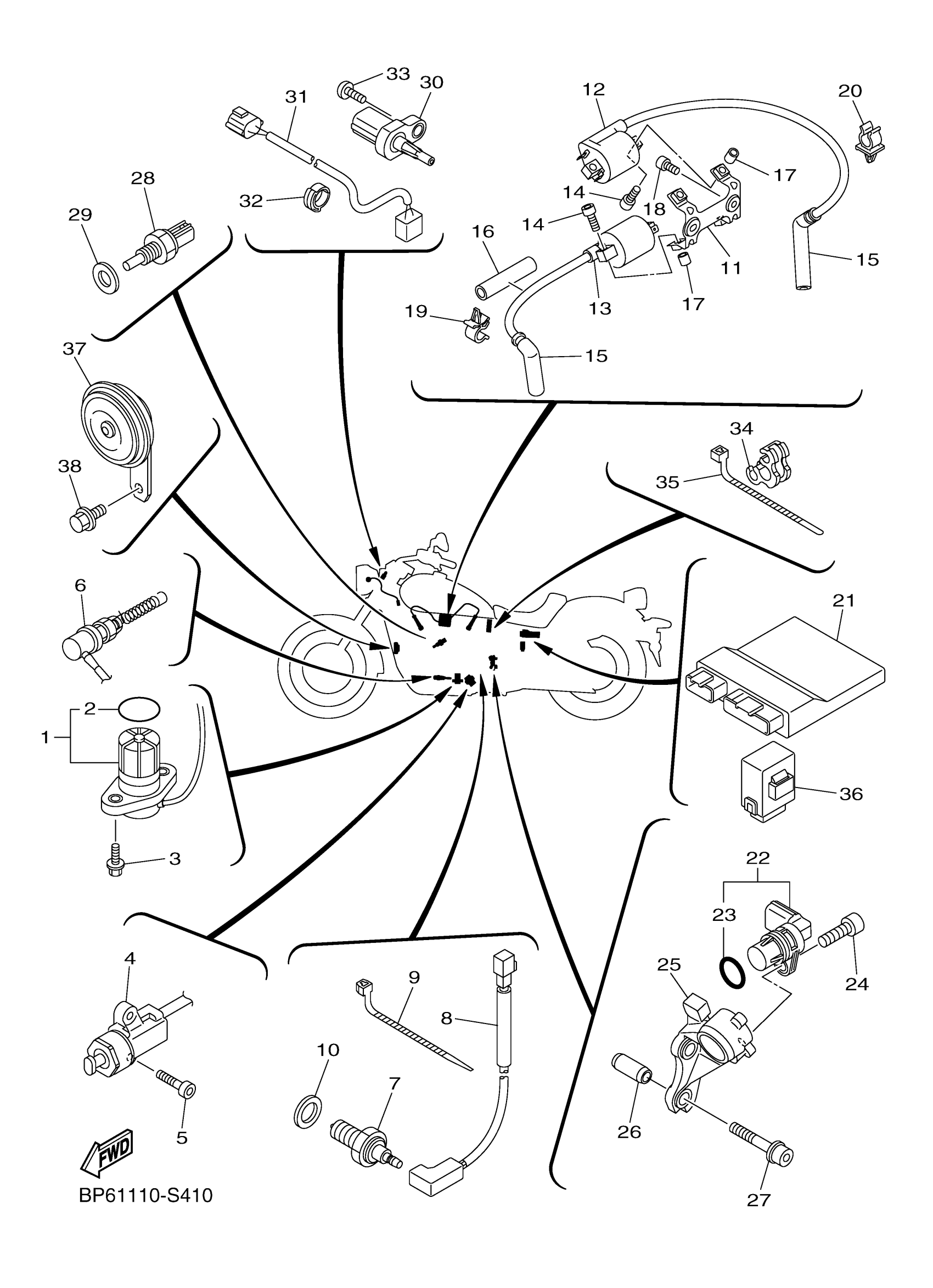

Yamaha XVS95CPGY (BOLT R SPEC) BDU8 2023 ELECTRICAL 1 Diagram

#

Description
Price

1

OIL LEVEL GAUGE ASSY

5S7-85720-00-00

$111.99

2

O-RING

5VY-8A8E0-00-00

$14.49

3

BOLT, FLANGE

95022-06016-00

$3.62

4

SWITCH, SIDE STAND

1TP-82566-01-00

$69.99

5

BOLT, SOCKET

91317-05016-00

$3.28

6

STOP SWITCH ASSY

BP6-82530-01-00

$41.99

7

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

8

WIRE, SUB LEAD

5S7-82509-10-00

Unavailable

9

CLAMP

90464-13077-00

$8.49

10

GASKET (1KH,1.0T)

90430-10148-00

$5.60

11

BRACKET, COIL

3D8-21359-01-00

Unavailable

12

IGNITION COIL ASSY

1TP-82310-03-00

Unavailable

13

IGNITION COIL ASSY

1S4-82310-03-00

Unavailable

14

BOLT,SOCKET HEAD

91314-06020-00

$1.49

15

PLUG CAP ASSY

5S7-82370-00-00

$72.99

16

HOSE (L65)

90445-14020-00

Unavailable

17

HOSE

90445-07048-00

Unavailable

18

BOLT

91312-06008-00

Unavailable

19

CLAMP(3LD)

90464-09129-00

Unavailable

20

CLAMP

90464-09008-00

Unavailable

21

ENGINE CONTROL UNIT ASSY

1TP-8591A-00-00

Unavailable

22

SENSOR, SPEED

1TP-83755-00-00

Unavailable

23

O-RING

4D9-81168-00-00

Unavailable

24

BOLT (33M)

91312-06014-00

Unavailable

25

BRACKET

1TP-81948-00-00

Unavailable

26

PIN, DOWEL

99530-08012-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06300-00

Unavailable

28

THERMO UNIT

52B-H3591-00-00

Unavailable

29

WASHER PLATE 341839090000

90201-10128-00

Unavailable

30

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

31

WIRE, SUB LEAD

B33-82509-00-00

Unavailable

32

CLAMP

90464-13227-00

Unavailable

33

SCREW, PAN

98517-05012-00

Unavailable

34

CLAMP, LEAD 1

1TP-81443-00-00

Unavailable

35

CLAMP

90464-20258-00

Unavailable

36

FLASHER RELAY ASSY

5S7-83350-01-00

Unavailable

37

HORN

2S3-83371-00-00

Unavailable

38

BOLT, WASHER BASED

90105-082A5-00

Unavailable
