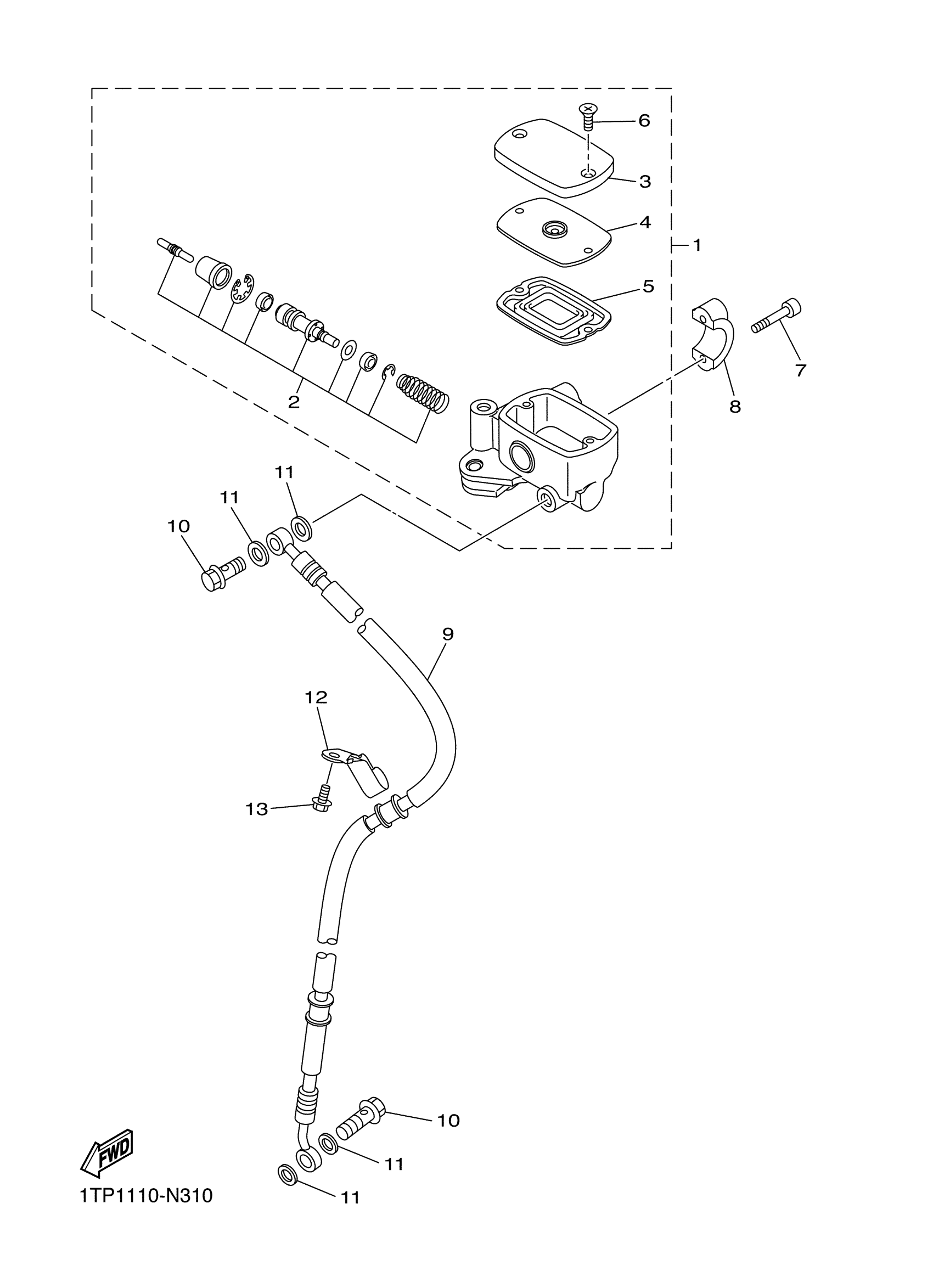

Yamaha XVS95CNGY (BOLT R-SPEC) BDU4 2022 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

1TP-2580A-00-00

$201.99

2

CYLINDER KIT, MASTER

1TP-25807-00-00

$31.99

3

CAP, RESERVOIR

4B5-25852-00-00

$35.99

4

BUSH,DIAPHRAGM

4B5-25855-00-00

$6.99

5

DIAPHRAGM, RESERVOIR

4B5-25854-00-00

Unavailable

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT

5VS-26332-00-00

$4.42

8

BRACKET, MASTER CYLINDER

3D8-25867-00-00

Unavailable

9

HOSE, BRAKE 1

1TP-25872-00-00

$85.99

10

BOLT, UNION

90401-10020-00

$9.49

11

GASKET

90430-10005-00

$9.49

12

HOLDER, BRAKE HOSE

1TP-25886-00-00

Unavailable

13

BOLT, FLANGE(4MY)

95027-06010-00

$3.29
