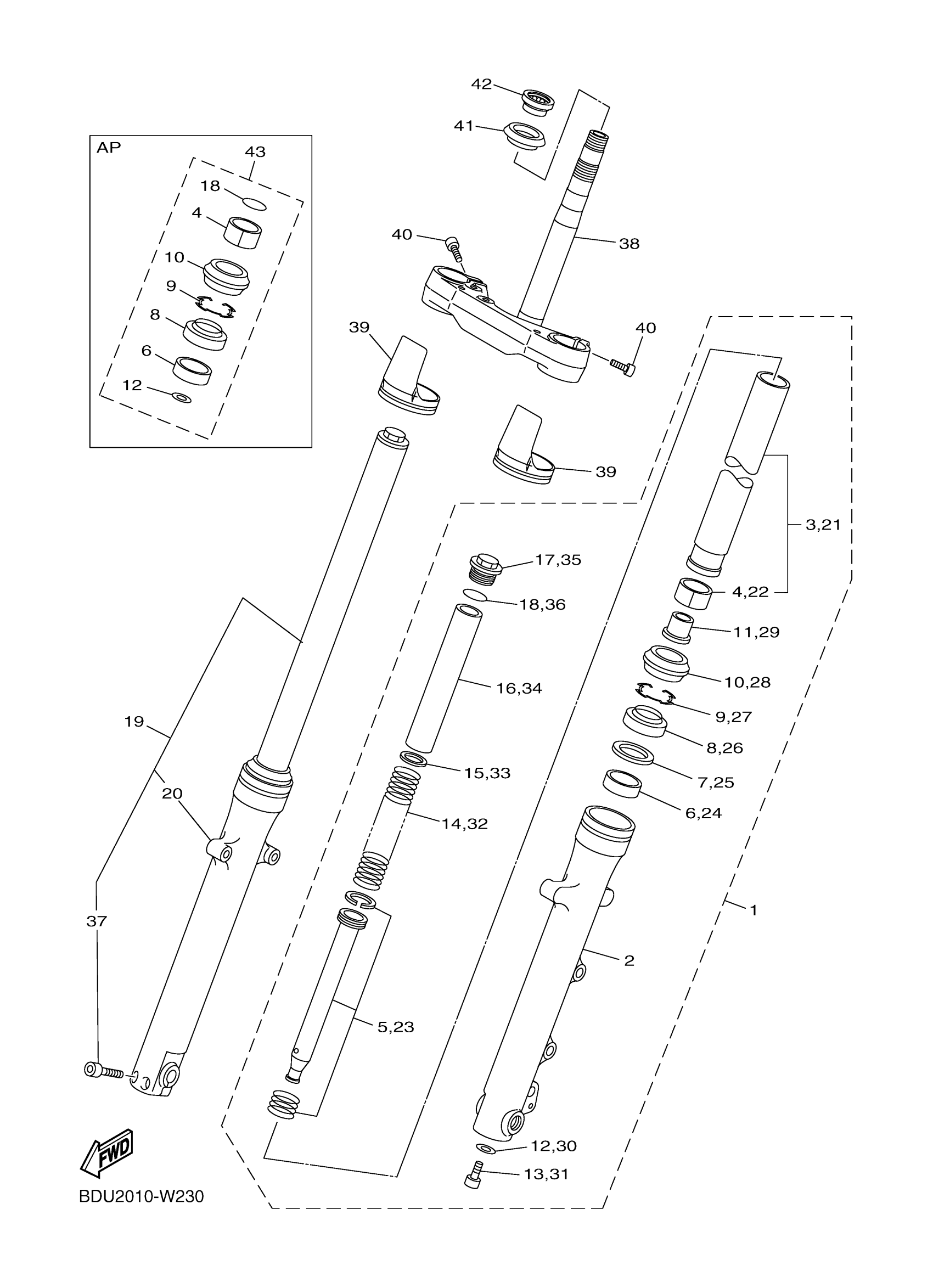

Yamaha XVS95CNGY (BOLT R-SPEC) BDU4 2022 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L
1TP-23102-03-00
Unavailable
2
TUBE, OUTER (L.H)
1TP-23126-01-00
Unavailable
3
INNER TUBE COMP.1
1TP-23110-01-00
Unavailable
11
SPINDLE, TAPER
1TP-23173-00-00
Unavailable
14
SPRING, FRONT FORK
1TP-23141-02-00
Unavailable
16
SPACER
1TP-23118-00-00
Unavailable
17
BOLT, CAP
1D0-23111-00-00
Unavailable
18
O-RING
1TP-23188-01-00
Unavailable
19
FRONT FORK ASSY (R
1TP-23103-03-00
Unavailable
20
TUBE, OUTER
1TP-23136-01-00
Unavailable
21
INNER TUBE COMP.1
1TP-23110-01-00
Unavailable
29
SPINDLE, TAPER
1TP-23173-00-00
Unavailable
32
SPRING, FRONT FORK
1TP-23141-02-00
Unavailable
34
SPACER
1TP-23118-00-00
Unavailable
35
BOLT, CAP
1D0-23111-00-00
Unavailable
36
O-RING
1TP-23188-01-00
Unavailable
37
BOLT, SOCKET
91314-08035-00
Unavailable
38
UNDER BRACKET COMP.
1TP-23340-01-00
Unavailable
39
COVER
4PU-2331G-00-00
Unavailable
40
BOLT,SOCKET
91314-10020-00
Unavailable
41
SEAL, STEERING
3FV-23462-00-00
Unavailable
42
BEARING(3FV)
93399-99932-00
Unavailable
43
FORK SEAL KIT (ONE FORK)
BDT-W003B-00-00
Unavailable
