Description

Price

1

CAST WHEEL, REAR

1TP-25338-10-P0

$426.99

2

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

3

OIL SEAL(39X)

93106-28023-00

$12.49

4

SPACER, BEARING

1TP-25317-00-00

$15.49

5

DAMPER

4WM-25364-00-00

Unavailable

6

COLLAR, WHEEL

1TP-25383-00-00

$20.99

7

TIRE (150/80B16 M/C 71H EXEDR)

94115-16025-00

Unavailable

8

VALVE, RIM(2GH)

93900-00030-00

$16.99

9

BALANCER, WHEEL

5MT-25398-00-00

$17.49

9

BALANCER, WHEEL

5MT-25398-10-00

$17.49

9

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

10

CLUTCH, HUB

1TP-25366-00-00

Unavailable

11

BEARING

93311-32698-00

$73.99

12

BEARING(3BC)

93306-30437-00

$66.99

13

CIRCLIP(26H)

99009-52500-00

$12.49

14

CIRCLIP

93450-35163-00

Unavailable

15

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

16

COLLAR, WHEEL

4WM-25376-10-00

Unavailable

17

BOLT, STUD

95612-12630-00

Unavailable

18

SPROCKET, DRIVEN (70T)

1TP-25470-00-00

Unavailable

19

NUT, U

95614-12100-00

Unavailable

20

WASHER, PLATE

90201-12045-00

Unavailable

21

V-BELT

1TP-46241-10-00

Unavailable

22

PULLER, CHAIN 1

1TP-25388-00-00

Unavailable

23

BOLT(4SR)

90101-08777-00

Unavailable

24

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

25

COLLAR

90387-20034-00

Unavailable

26

COLLAR

90387-2000B-00

Unavailable

27

AXLE, WHEEL

1TP-25381-00-00

Unavailable

28

NUT, SELF-LOCKING

90185-18009-00

Unavailable

29

WASHER, PLATE

90201-18020-00

Unavailable

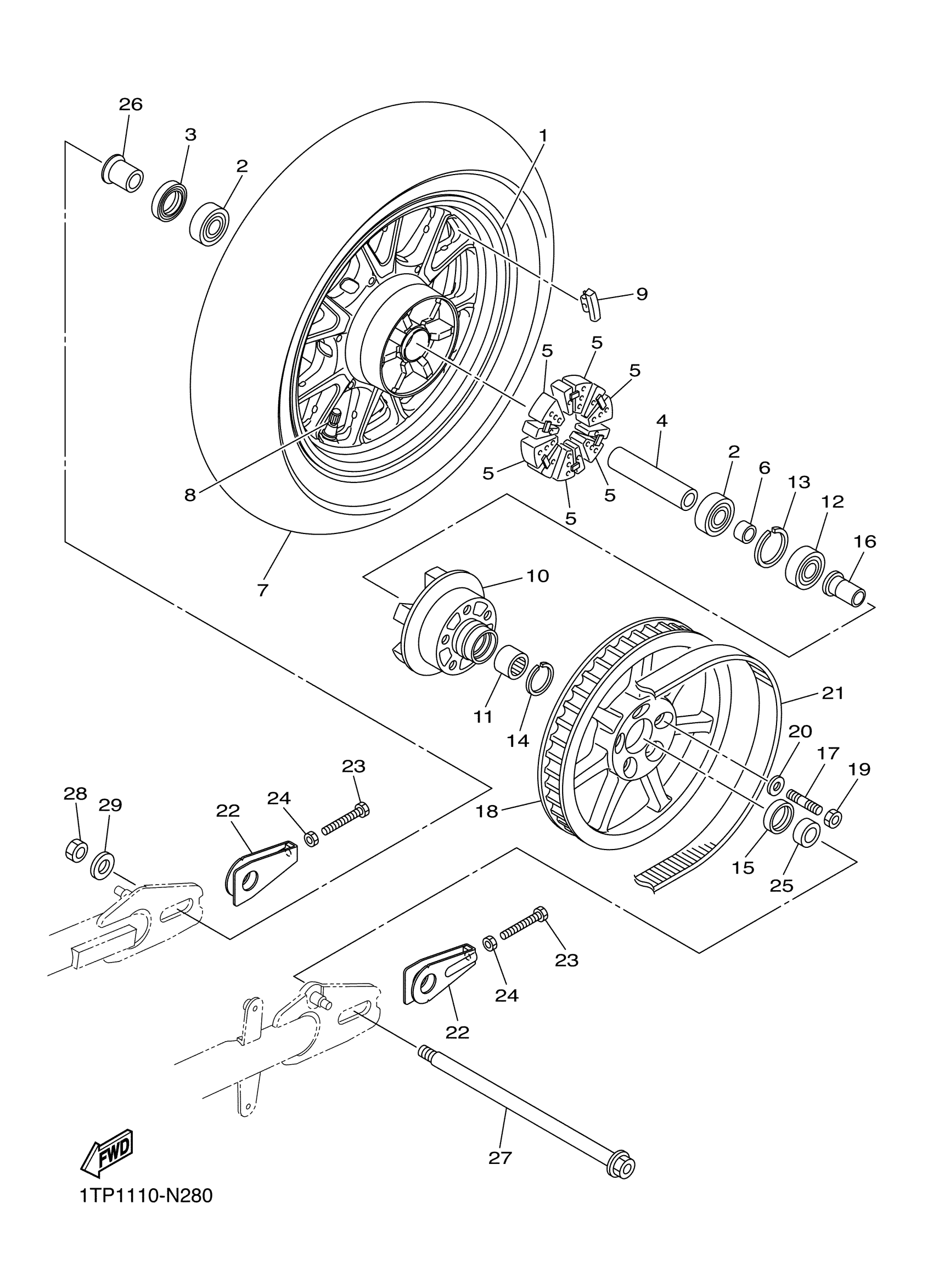

Yamaha XVS95CMCB (BOLT R-SPEC CA) BS5V 2021 REAR WHEEL Diagram

CAST WHEEL, REAR

BRG,R-B 62042RS 47MM 110G KY

OIL SEAL(39X)

SPACER, BEARING

DAMPER

COLLAR, WHEEL

TIRE (150/80B16 M/C 71H EXEDR)

VALVE, RIM(2GH)

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

CLUTCH, HUB

BEARING

BEARING(3BC)

CIRCLIP(26H)

CIRCLIP

OIL SEAL (30X42X8-102)

COLLAR, WHEEL

BOLT, STUD

SPROCKET, DRIVEN (70T)

NUT, U

WASHER, PLATE

V-BELT

PULLER, CHAIN 1

BOLT(4SR)

NUT, HEXAGON SMALL

COLLAR

COLLAR

AXLE, WHEEL

NUT, SELF-LOCKING

WASHER, PLATE
