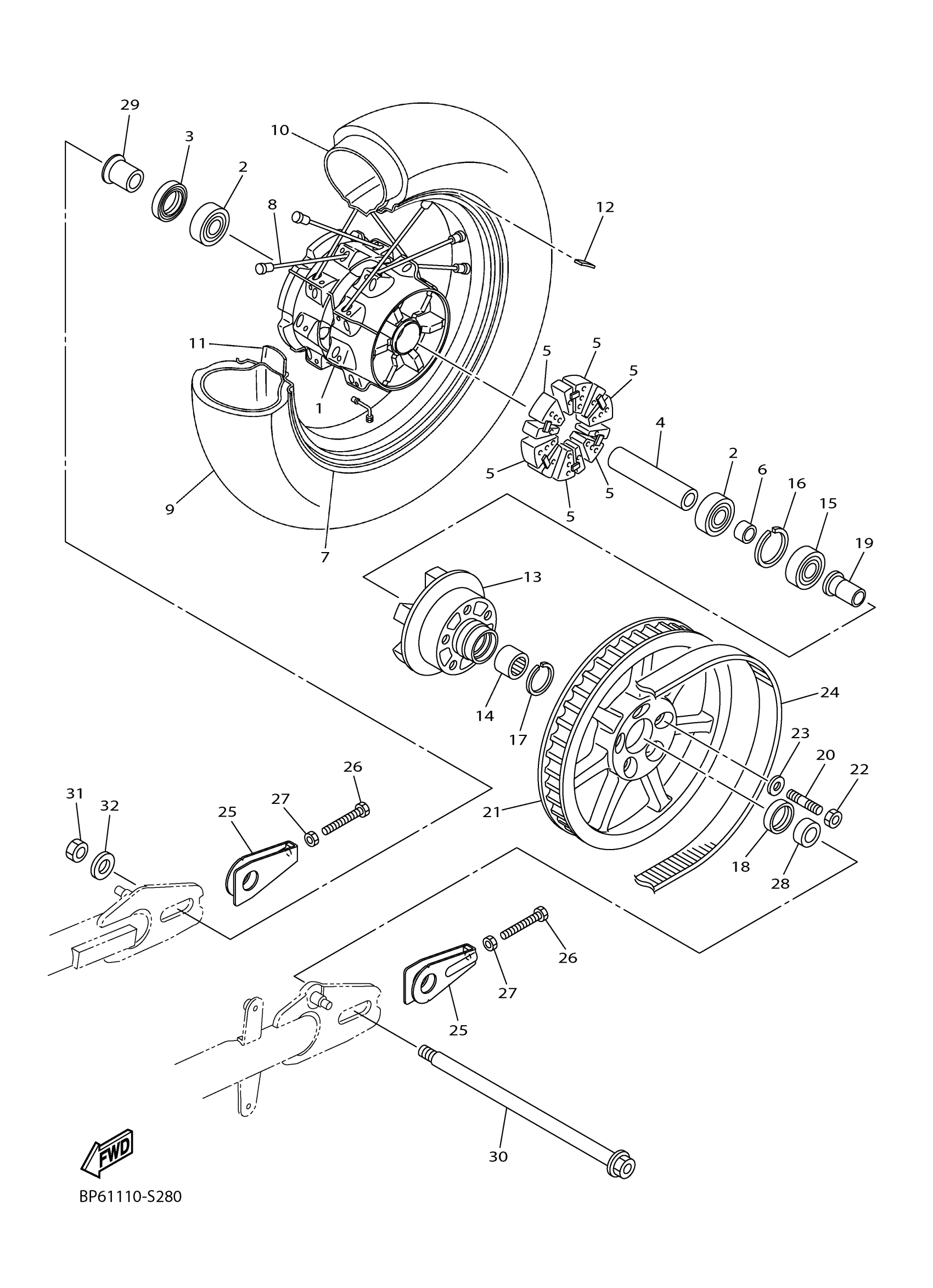

Yamaha XVS95CLCB (BOLT CA) BP6L 2020 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

BP6-25311-00-00

$725.99

2

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

3

OIL SEAL(39X)

93106-28023-00

$12.49

4

SPACER, BEARING

1TP-25317-00-00

$15.49

5

DAMPER

4WM-25364-00-00

Unavailable

6

COLLAR, WHEEL

1TP-25383-00-00

$20.99

7

RIM

94435-16005-00

Unavailable

8

SPOKE SET, REAR

BP6-25304-00-00

Unavailable

9

TIRE

94115-16033-00

Unavailable

10

TUBE

94215-16003-00

$74.99

11

BAND, RIM

94315-16178-00

$5.60

12

BALANCER, WHEEL

2CR-25398-00-00

$5.49

13

CLUTCH, HUB

1TP-25366-00-00

Unavailable

14

BEARING

93311-32698-00

$73.99

15

BEARING(3BC)

93306-30437-00

$66.99

16

CIRCLIP(26H)

99009-52500-00

Unavailable

17

CIRCLIP

93450-35163-00

Unavailable

18

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

19

COLLAR, WHEEL

4WM-25376-10-00

Unavailable

20

BOLT, STUD

95612-12630-00

Unavailable

21

SPROCKET, DRIVEN (70T)

1TP-25470-00-00

Unavailable

22

NUT, U

95614-12100-00

Unavailable

23

WASHER, PLATE

90201-12045-00

Unavailable

24

V-BELT

1TP-46241-10-00

Unavailable

25

PULLER, CHAIN 1

1TP-25388-00-00

Unavailable

26

BOLT(4SR)

90101-08777-00

Unavailable

27

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

28

COLLAR

90387-20034-00

Unavailable

29

COLLAR

90387-2000B-00

Unavailable

30

AXLE, WHEEL

1TP-25381-00-00

Unavailable

31

NUT, SELF-LOCKING

90185-18009-00

Unavailable

32

WASHER, PLATE

90201-18020-00

Unavailable
