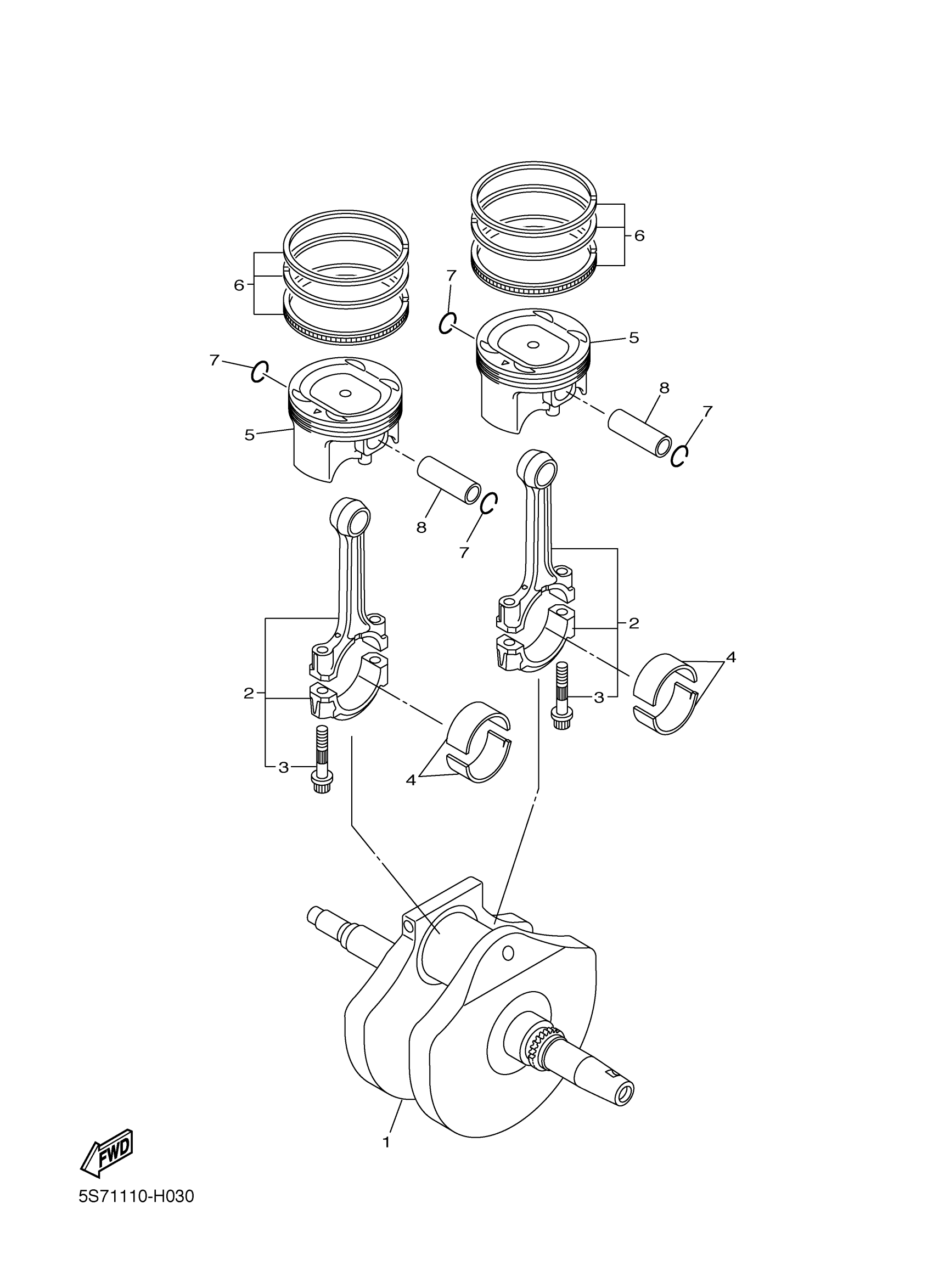

Yamaha XVS95CKS (BOLT R-SPEC) BS5F 2019 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT

5S7-11411-00-00

Unavailable

2

CONNECTING ROD ASSY

5S7-11650-00-00

Unavailable

3

BOLT, CONNECTING ROD

5YU-11654-00-00

$6.91

4

PLANE BEARING, CONNECTING ROD

5YU-11656-10-00

$15.51

4

PLANE BEARING, CONNECTING ROD

5YU-11656-20-00

$14.43

4

PLANE BEARING, CONNECTING ROD

5YU-11656-30-00

Unavailable

5

PISTON (STD)

5S7-11631-01-00

$145.63

6

PISTON RING SET (STD)

5S7-11603-00-00

$76.14

7

CIRCLIP

93450-22146-00

$5.76

8

PIN, PISTON

5PS-11633-00-00

$30.06
