Description

Price

1

LEVER 1

5BN-83912-20-00

$49.99

2

HOLDER, LEVER 1

5BN-82911-20-00

$56.99

3

COLLAR, LEVER 1

4TR-83913-00-00

$7.99

4

BOLT, LEVER

4TR-83945-10-00

$14.49

5

BOLT

90123-08002-00

$10.49

6

NUT

90179-08030-00

$5.49

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

SWITCH

3YX-82917-01-00

$43.99

10

SCREW, FLAT HEAD

98702-03020-00

$2.12

11

BOLT, LEVER

5VS-2589F-00-00

$14.49

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

LEVER 2

3D8-83922-10-00

$49.99

14

SWITCH

36Y-82917-00-00

$45.99

15

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

16

WASHER, PLAIN (646)

92990-04600-00

Unavailable

17

SWITCH, HANDLE 3

1TP-83973-00-00

Unavailable

18

SCREW, PAN HEAD

98517-05030-00

Unavailable

19

CLAMP(4FM)

90464-15195-00

Unavailable

20

SWITCH, HANDLE 4

1TP-83972-00-00

Unavailable

21

SCREW, PAN HEAD

98517-05030-00

Unavailable

22

CLAMP(4FM)

90464-15195-00

Unavailable

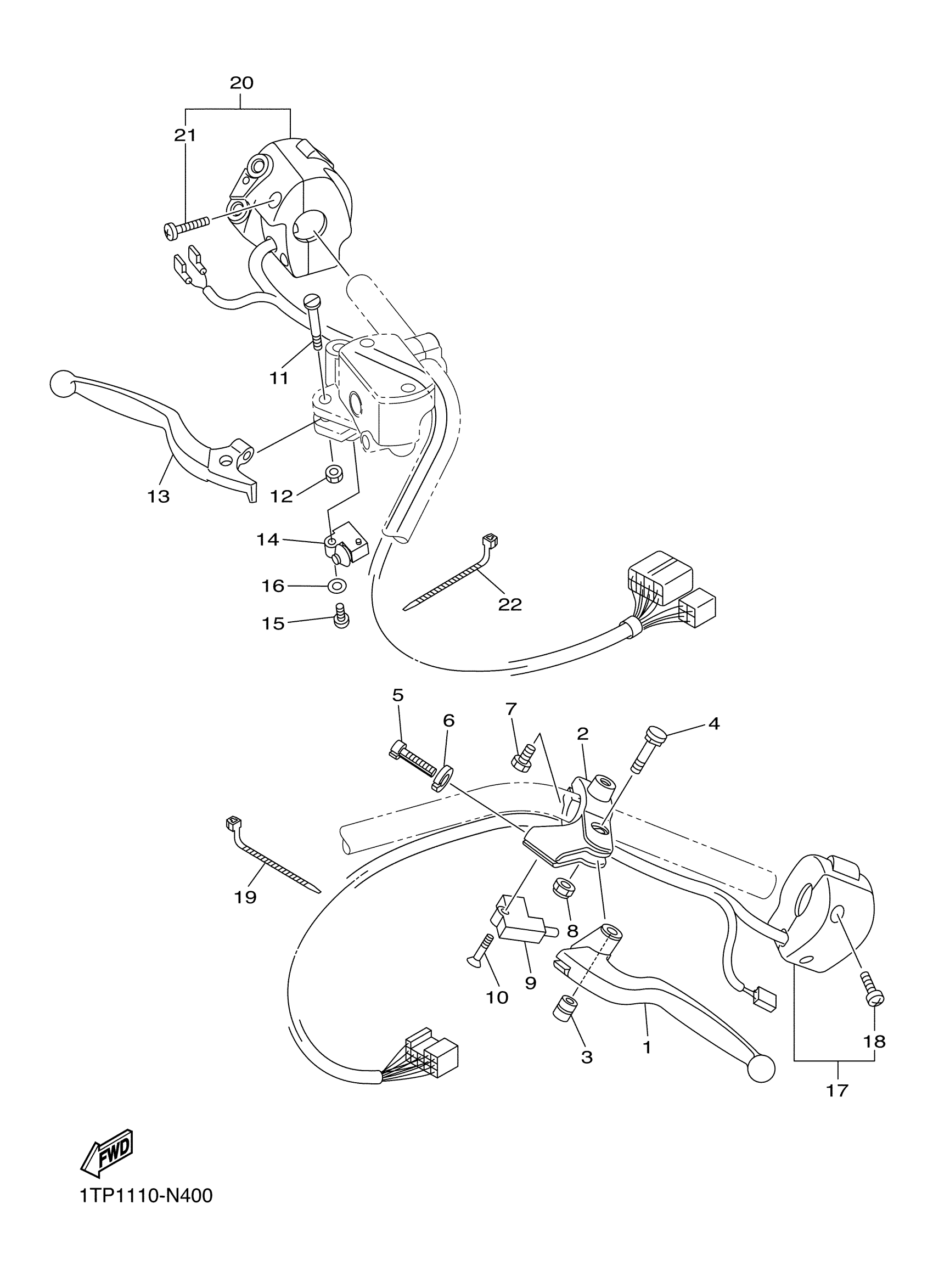

Yamaha XVS95CJL (BOLT R SPEC) BS5A 2018 HANDLE SWITCH LEVER Diagram

LEVER 1

HOLDER, LEVER 1

COLLAR, LEVER 1

BOLT, LEVER

BOLT

NUT

BOLT, HEXAGON

NUT, SELF-LOCKING

SWITCH

SCREW, FLAT HEAD

BOLT, LEVER

NUT, SELF-LOCKING

LEVER 2

SWITCH

SCREW, PAN HEAD(GA5)

WASHER, PLAIN (646)

SWITCH, HANDLE 3

SCREW, PAN HEAD

CLAMP(4FM)

SWITCH, HANDLE 4

SCREW, PAN HEAD

CLAMP(4FM)
