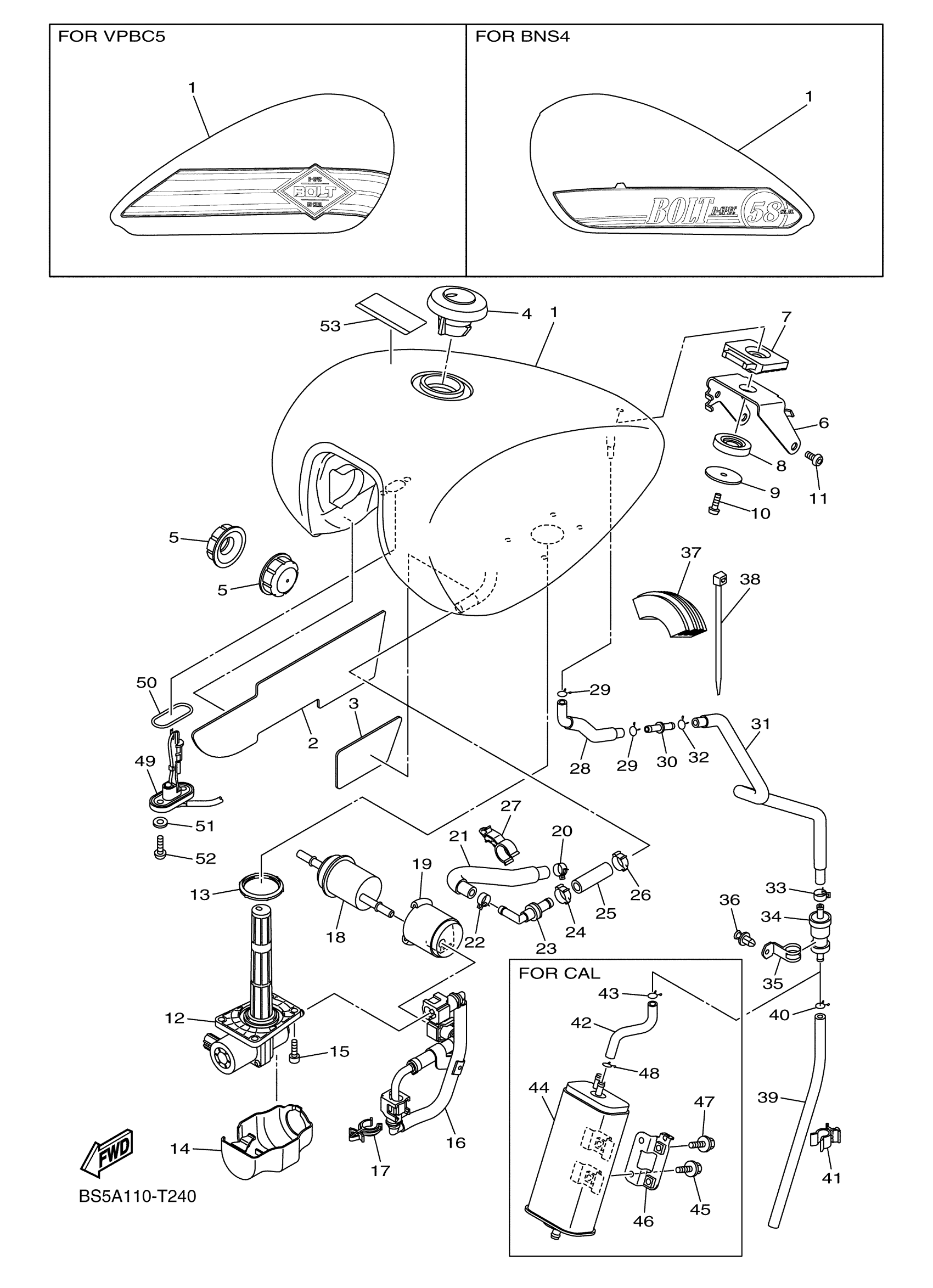

Yamaha XVS95CJL (BOLT R SPEC) BS5A 2018 FUEL TANK Diagram
#
1
FUEL TANK COMP.
BP6-Y2410-01-X4
Unavailable
6
BRACKET, TANK FITTING
BP6-2413Y-00-00
Unavailable
7
DAMPER, LOCATING 2
1TP-24182-00-00
Unavailable
16
FUEL PIPE ASSY
1TP-24330-01-00
Unavailable
17
CLAMP
90464-16240-00
Unavailable
18
FILTER
1TP-13915-00-00
Unavailable
19
BAND 1
1TP-24398-00-00
Unavailable
20
CLIP
90467-12003-00
Unavailable
21
PIPE 5
1TP-24315-01-00
Unavailable
22
CLIP(3YX)
90467-13133-00
Unavailable
23
CHECK VALVE ASSY
1TP-14860-00-00
Unavailable
24
CLIP
90467-150A6-00
Unavailable
25
PIPE 4
1TP-24314-01-00
Unavailable
26
CLIP
90467-150A6-00
Unavailable
27
CLAMP
90464-17009-00
Unavailable
28
PIPE 3
1TP-24313-00-00
Unavailable
29
CLIP
90467-090A2-00
Unavailable
30
JOINT
4XY-14568-00-00
Unavailable
31
PIPE 6
1TP-24316-00-00
Unavailable
32
CLIP
90467-090A2-00
Unavailable
33
CLIP
90467-09001-00
Unavailable
34
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
35
CLAMP 2
1TP-24136-00-00
Unavailable
36
RIVET
90269-05005-00
Unavailable
37
DAMPER, LOCATING 3
BP6-24183-00-00
Unavailable
38
CLAMP
90464-65001-00
Unavailable
42
PIPE 1
1TP-2486A-00-00
Unavailable
43
CLIP
90467-090A2-00
Unavailable
44
CANISTER ASSY
5PX-24170-00-00
Unavailable
45
BOLT, FLANGE
95812-06010-00
Unavailable
46
PLATE
1TP-2413X-00-00
Unavailable
47
BOLT, FLANGE
95817-06014-00
Unavailable
48
CLIP
90467-090A2-00
Unavailable
49
SENDER UNIT ASSY, FUEL METER
1TP-85752-01-00
Unavailable
50
GASKET, SENDER UNIT
42X-85753-00-00
Unavailable
51
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
52
SCREW
90149-06108-00
Unavailable
53
LABEL, CAUTION
1TP-2118K-01-00
Unavailable
