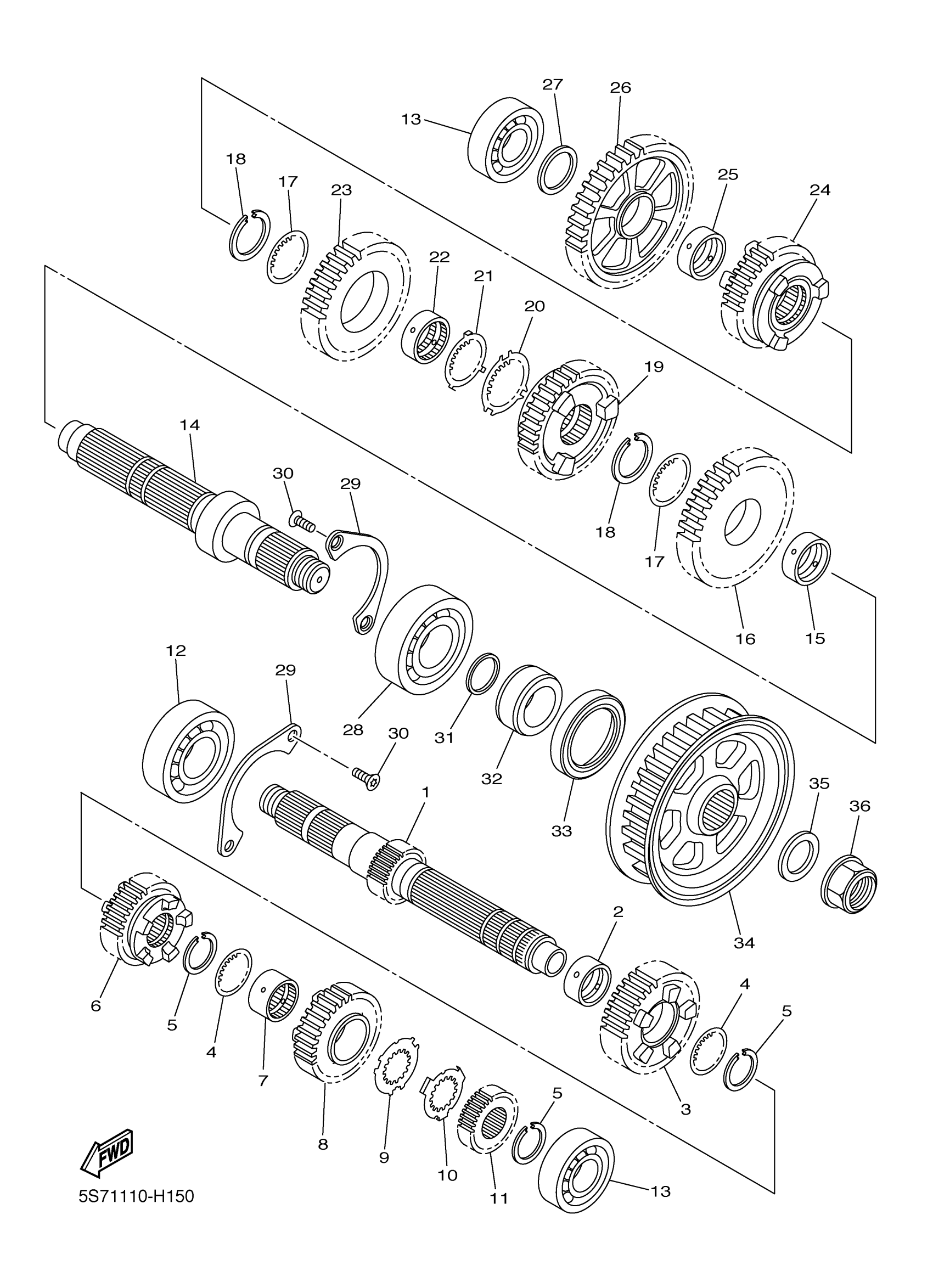

Find the part on the Transmission diagram for your 2018 Yamaha Bolt CA (XVS95CJCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Bolt CA (XVS95CJCB) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

5S7-17411-10-00

—
Out of stock

2

COLLAR

90387-28003-00

1
Out of stock

3

GEAR, 5TH PINION

5S7-17151-00-00

—
Out of stock

4

WASHER

90209-25011-00

1
Out of stock

5

CIRCLIP

93440-28184-00

1
Out of stock

6

GEAR, 3RD PINION

5S7-17131-10-00

—
Out of stock

7

COLLAR

90387-25025-00

—
Out of stock

8

GEAR, 4TH PINION

5S7-17141-10-00

—
Out of stock

9

WASHER, CLAW

90214-25004-00

1
Out of stock

10

WASHER, CLAW

90214-25003-00

1
Out of stock

11

GEAR, 2ND PINION

5S7-17121-00-00

—
Out of stock

12

BEARING

93306-37817-00

1
Out of stock

13

BEARING

93306-37215-00

1
Out of stock

14

AXLE, DRIVE

5S7-17421-00-00

—
Out of stock

15

COLLAR

90387-31003-00

1
Out of stock

16

GEAR, 2ND WHEEL

5S7-17221-00-00

—
Out of stock

17

WASHER

90209-28008-00

—
Out of stock

18

CIRCLIP

93440-31187-00

—
Out of stock

19

GEAR, 4TH WHEEL

5S7-17241-10-00

—
Out of stock

20

WASHER, CLAW

90214-29002-00

—
Out of stock

21

WASHER, CLAW

90214-28002-00

—
Out of stock

22

COLLAR

90387-28004-00

—
Out of stock

23

GEAR, 3RD WHEEL

5S7-17231-00-00

—
Out of stock

24

GEAR, 5TH WHEEL

5S7-17251-00-00

—
Out of stock

25

COLLAR

90387-25008-00

—
Out of stock

26

GEAR, 1ST WHEEL

5S7-17211-00-00

—
Out of stock

27

WASHER, PLATE(83R)

90201-224L4-00

—
Out of stock

28

BRG. R-B 6306 72MM 352.5GK

93306-30610-00

—
Out of stock

29

PLATE, BEARING COVER

3D8-15381-00-00

—
Out of stock

30

SCREW, COUNTERSUNK

90151-06023-00

—
Out of stock

31

O-RING(50M)

93210-27672-00

—
Out of stock

32

COLLAR

90387-30010-00

—
Out of stock

33

OIL SEAL

93102-45012-00

—
Out of stock

34

PULLEY, BELT

5S7-17651-00-00

—
Out of stock

35

WASHER, CONICAL SPRING

90208-22004-00

—
Out of stock

36

NUT

90179-22029-00

—
Out of stock
